Step 10: Large Roof Rafter Assembly
Part 3
2 x (2208) Strap Short - Large Roof
2 x (2211) Strap Left - Large Roof
2 x (2210) Strap Right - Large Roof
2 x (2212) Rafter Short - Right
2 x (2213) Rafter Short - Left

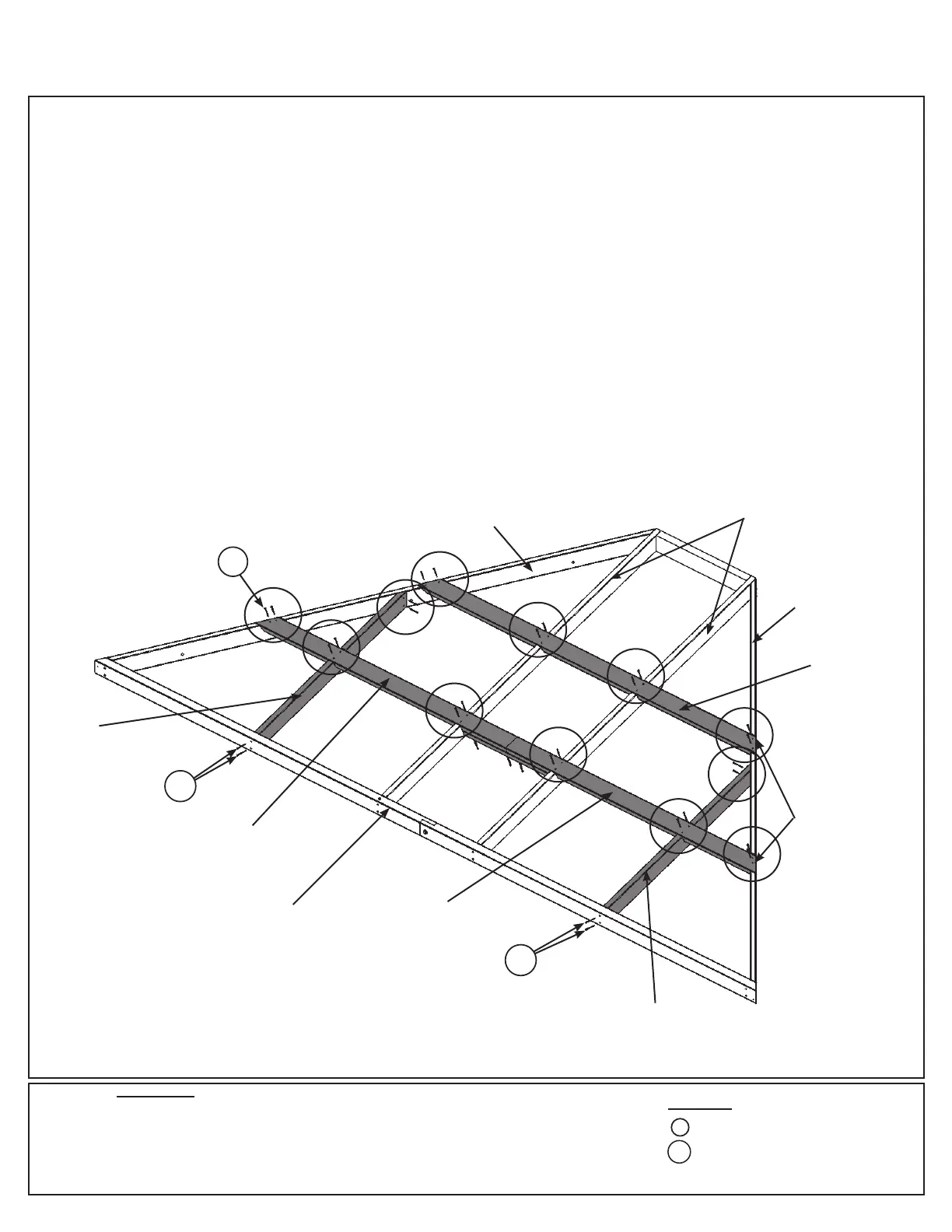

F: Place one (2208) in the notches of (2203), (2204) and (2206)’s so the ends do not overhang the outside
edges of the outside boards then attach with eight S2. (F10.7)
G: Place one (2211) in the notches of (2203) and one (2206) and one (2210) in the notches of (2204) and
the other (2206) so the ends do not overhang the outside edges of the outside boards. Boards are tight in the
center. Do not attach yet. (F10.7)
H: Place one (2212) in the notches of (2210) and one (2213) in the notches of (2211) and attach to (2203) and
(2204) with two S35 per board and to Large Fascia Beam Assembly with two S2 per board. (F10.7)
I: Attach (2211) and (2210) to (2203), (2204), (2206), (2212) and (2213) with six S2 per board. (F10.7)
Hardware
Wood Parts
48 x #8 x 1-1/2” Wood Screw
No
Overhang
(2203)
(2208)
(2213)
(2211)
(2212)
Large Fascia
Beam Assembly
(2204)
(2206)
F10.7
(2210)
S35
S35
S2
x 24 per assembly
S2
S35
8 x #8 x 2-1/4” Wood Screw
To Next Page
