Step 13: Attach Ridge Clips and Roof Edges - Small Roof
Hardware
F13.1
34 x #8 x 1” Roong Screw

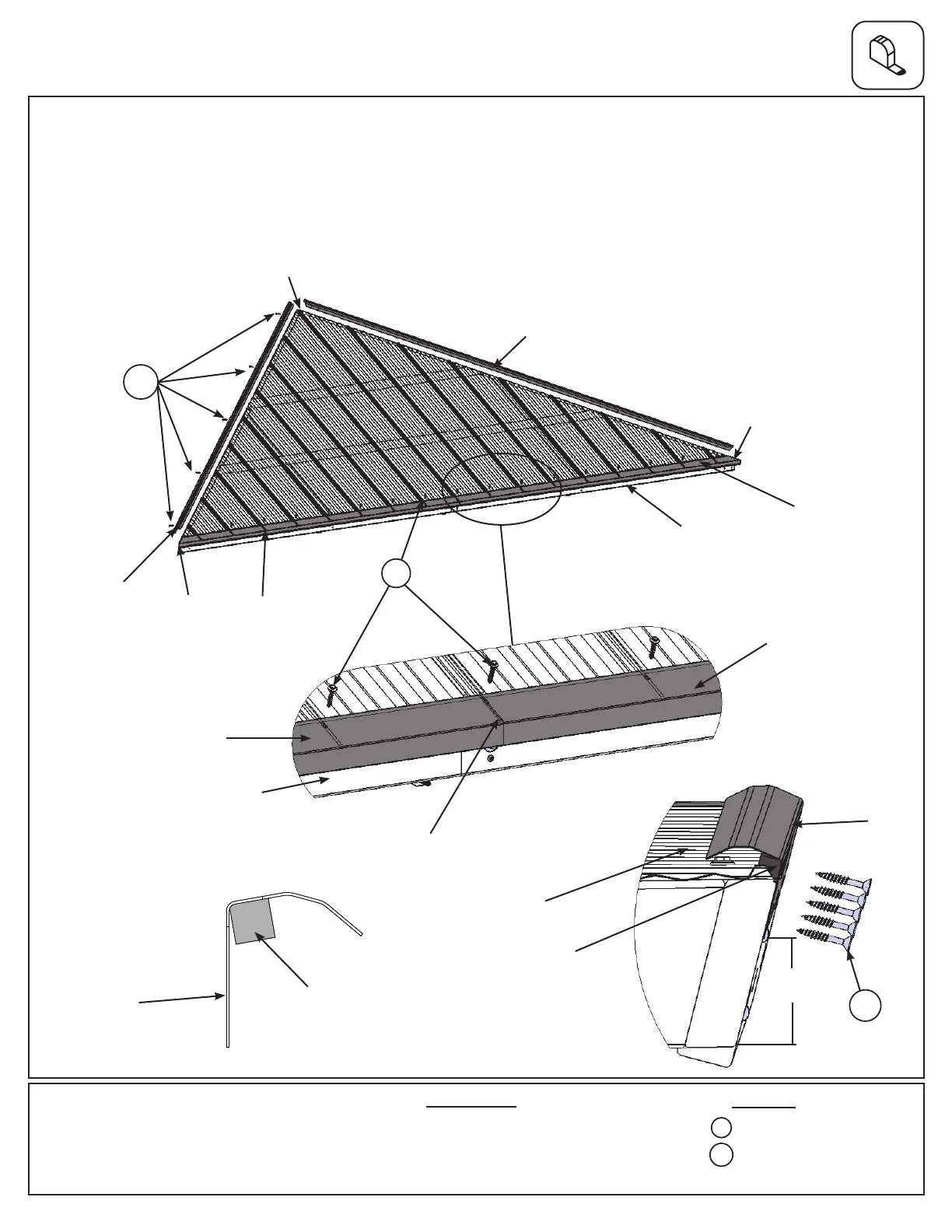

A: Place one Roof Edge Left 72.2 and one Roof Edge Right 72.2 on the bottom of each Small Roof Rafter
Assembly so the ends are ush with the outside ends of the Fascia Beam Assembly and meet tight in the center.
Attach both Roof Edges with 17 R0 per Small Roof Rafter assembly. (F13.1 and F13.2)
B: Place one Weather Seal on the inside of each Ridge Clip 102.5, then place one Ridge Clip 102.5 on each
side of each Small Roof Rafter Assembly 2.5 in (63.5 mm) up from the botttom so they cover the panels and
attach with ve S39 per Ridge Clip 102.5. (F13.1, F13.3 and F13.4)
Weather
Seal
F13.2
Panels
Components:
2 x Roof Edge Left 72.2
2 x Roof Edge Right 72.2
4 x Ridge Clip 102.5
4 x Weather Seal
Fascia Beam
Assembly
Flush
Flush
(x 17)
Fascia Beam
Assembly
F13.3
Weather
Seal
Side View
F13.4
Side View
(x 5 per side)
Flush
Roof Edge
Left 72.2
Roof Edge
Right 72.2
Roof Edge
Left 72.2
Roof Edge
Right 72.2
Ridge Clip
102.5
Ridge Clip
102.5
Ridge Clip
102.5
Ridge
Clip
102.5
S39
R0
20 x #7 x 3/4” Wood Screw
S39
R0
S39
(x5
per
Side)
2.5 in
(63.5 mm)
