Step 14: Attach Roof Panels - Large Roof
Part 1

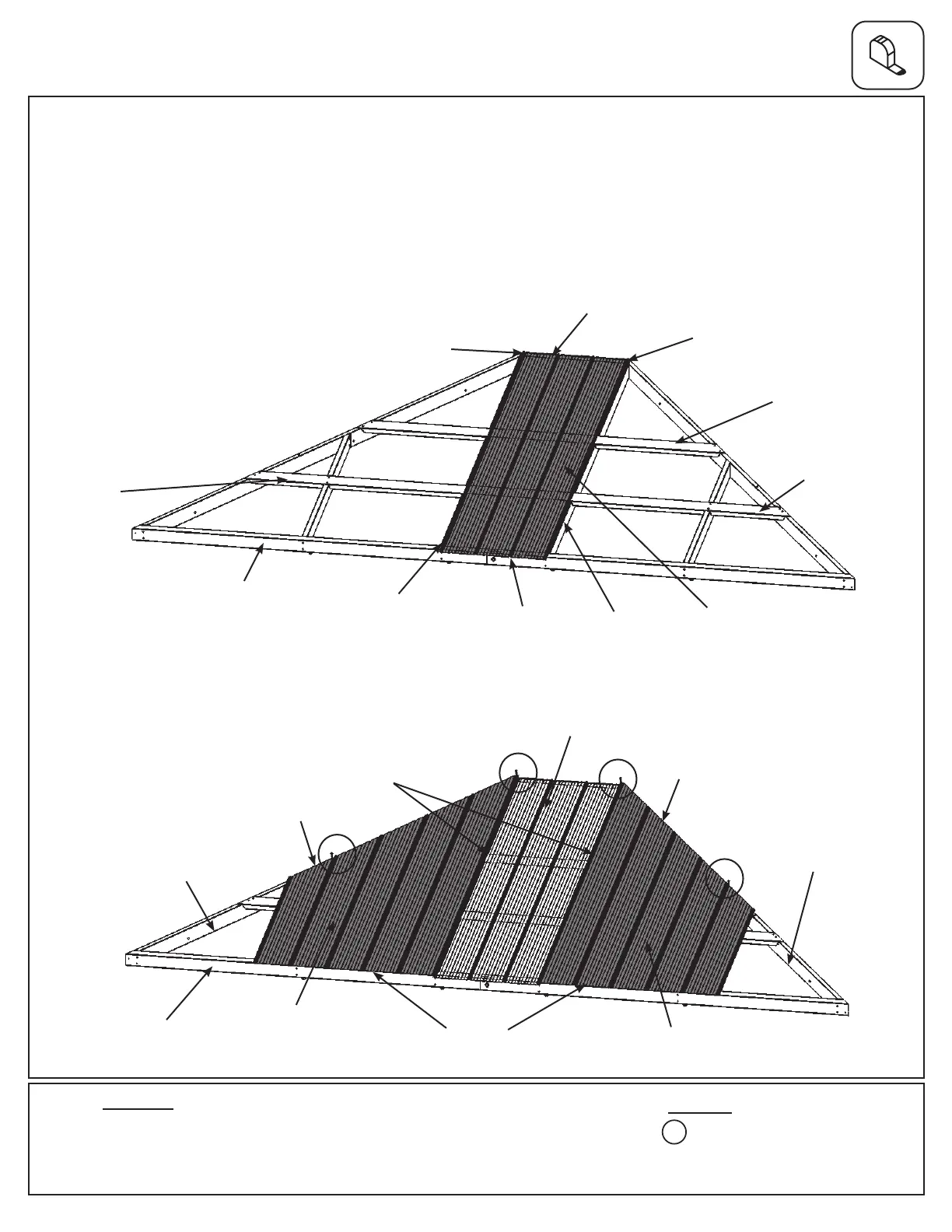

A: Place one Middle Panel on the front of one Large Roof Rafter Assembly so the holes that are 1 in (2.54 cm)
from the short edge are at the top of the panel. The panel slightly overhangs the top of (434) and has an overhang
at the bottom of the Large Fascia Beam Assembly. Holes should line up with (2206), (2208), (2211) and (2210).
(F14.1)
B: Place one Long Panel Left and one Long Panel Right on each side of Middle Panel so they overlap the Middle
Panel and are ush to the sides of (2203) and (2204) and have an overhang at the bottom of the Large Fascia
Beam Assembly. Attach with two R0 per panel in the places shown below. Be sure not to overtighten screws.
(F14.2)
F14.2
F14.1
8 x #8 x 1” Roong Screw
Roof Parts
2 x Middle Panel
2 x Long Panel Left
2 x Long Panel Right
Large Fascia
Beam Assembly
(2203)
(2204)
Panels overlap
at the seams
(2206)
(2211)
(2208)
Long Panel
Left
Long Panel Right
DO NOT overtighten
screws, could cause
damage to roong
material
Flush
Flush
Large Fascia
Beam Assembly
(2210)
(2206)
(hidden)
(434)
(hidden)
Slight
overhang
Middle Panel
Middle Panel
Overhang
Overhang
R0
Pre-drilled holes 1 in
(2.54 cm) from edge
