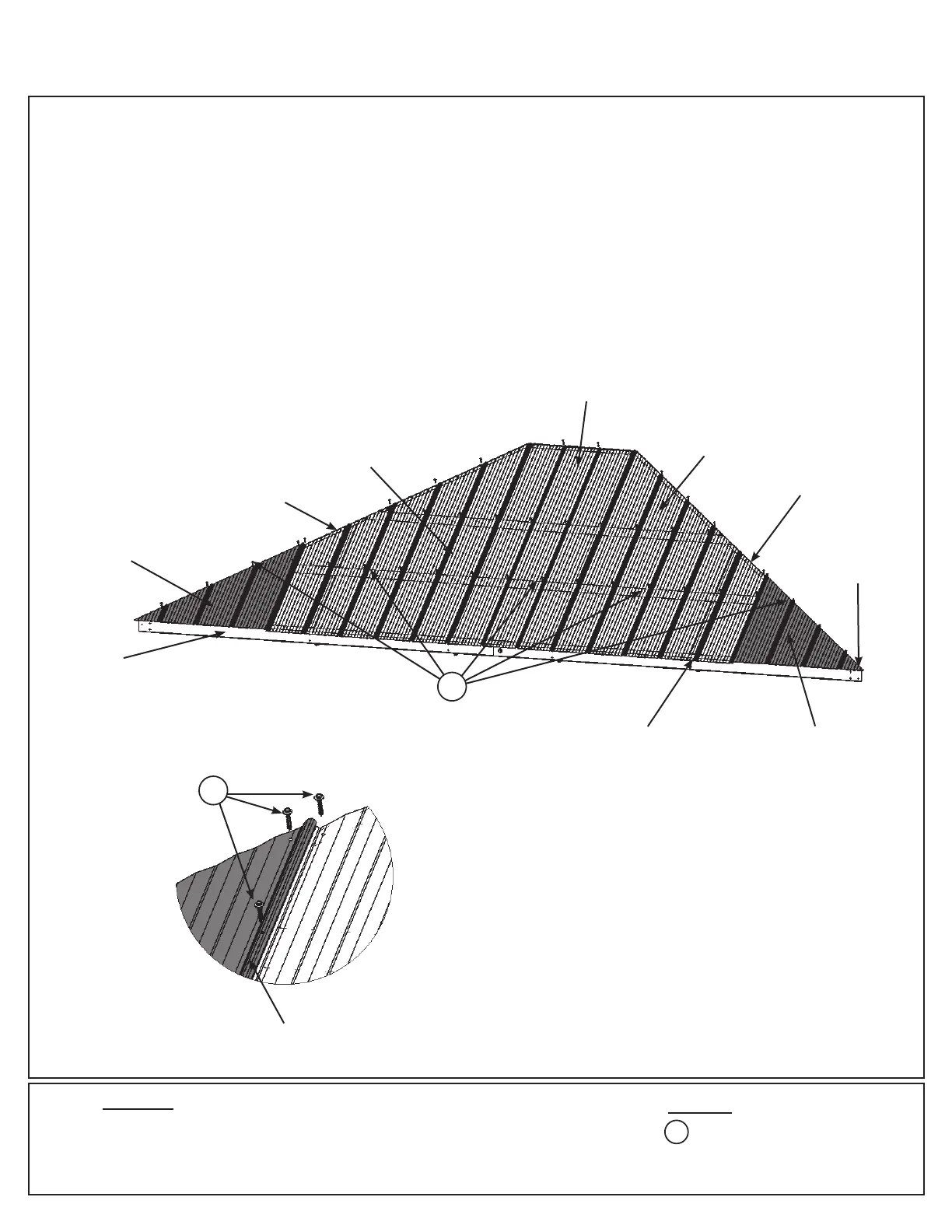

Step 14: Attach Roof Panels - Large Roof
Part 2
F14.4
Hardware
84 x #8 x 1” Roong Screw
Roof Parts
2 x Short Panel Left
2 x Short Panel Right
C: Place one Short Panel Left so it overlaps the Long Panel Left and it is ush to the sides of (2203) and one
Short Panel Right so it overlaps the Long Panel Right and it is ush to the side of (2204). There will be a slight
overhang at the bottom of the Large Fascia Beam Assembly. There should be no overhang at the corners.
(F14.3 and F14.4)
D: Make sure all panels t properly then attach with 42 R0. Be sure not to overtighten screws (F14.3 and
F14.4)
Notice there are no screws along the bottom row.
E: Repeat Steps A - D for both Large Roof Rafter Assemblies.
(2203)
(hidden)
(2204)
(hidden)
Long Panel Left
Long Panel Right
Short Panel
Right
Large Fascia
Beam Assembly
DO NOT overtighten
screws, could cause
damage to roong
material
Short Panel
Left
Panels ush
to corners, no
overhang
Panels overlap
at the seams
No screws along
bottom row
(x 42 per assembly)
F14.3
Middle Panel
R0
R0
R0
