39 support@yardistrystructures.com
Tight at center

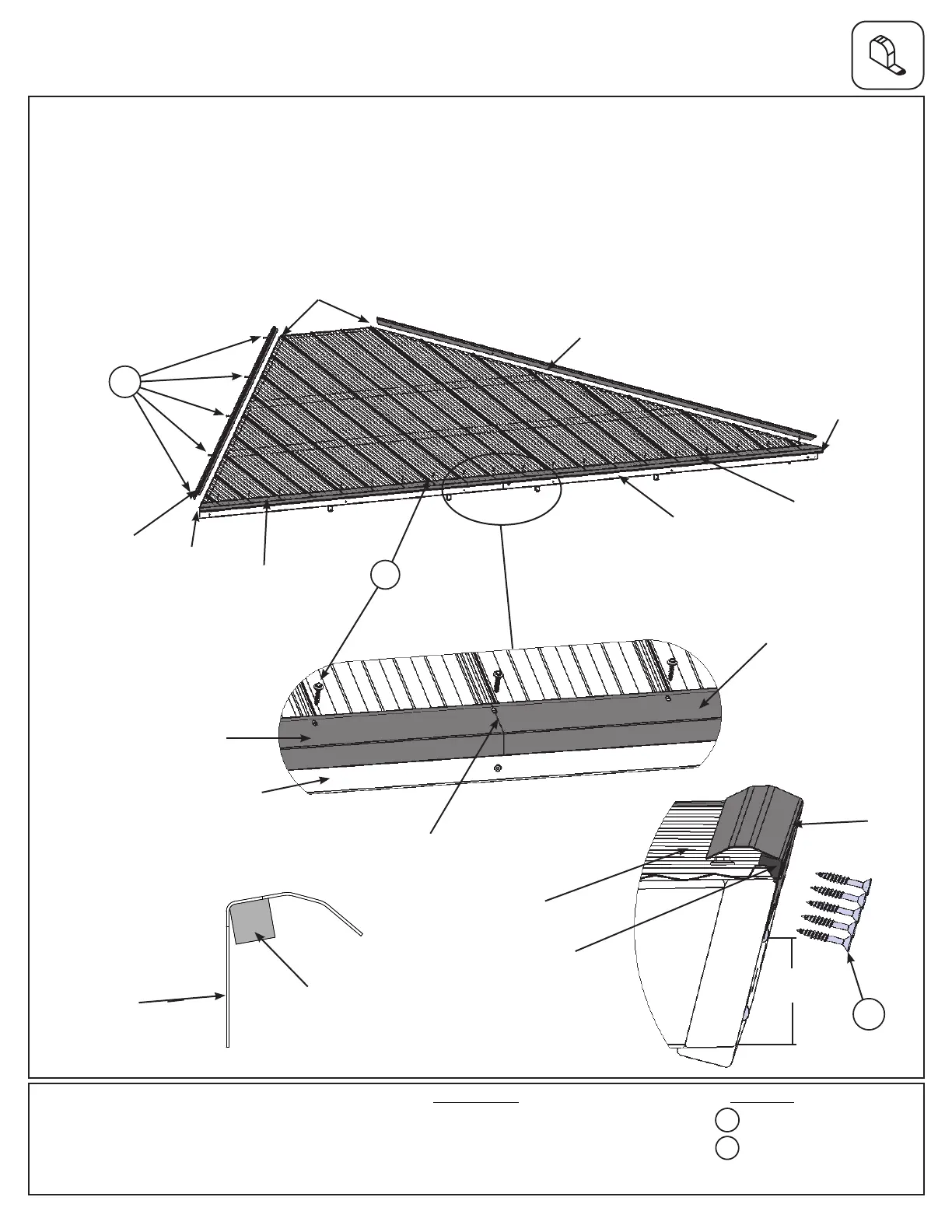

Step 15: Attach Ridge Clips and Roof Edges - Large Roof
Hardware
F15.1
40 x #8 x 1” Roong Screw
A: Place one Roof Edge Left 72.2 and one Roof Edge Right 96.2 on the bottom of each Large Roof Rafter
Assembly so the ends are ush with the outside ends of the Large Fascia Beam Assembly and meet tight in the
center. Attach both Roof Edges with 20 R0 per Large Roof Rafter assembly. (F15.1 and F15.2)
B: Place one Weather Seal on the inside of each Ridge Clip 102.5 then place one Ridge Clip 102.5 on each side
of each Large Roof Rafter Assembly, 2.5 in (63.5 mm) up from the bottom so they cover the panels and attach
with ve S39 per Ridge Clip 102.5. (F15.1, F15.3 and F15.4)
Weather
Seal
F15.2
(x 5
per
side)
Panels
Components
2 x Roof Edge Left 72.2
2 x Roof Edge Right 96.2
4 x Ridge Clip 102.5
4 x Weather Seal
Roof Edge
Left 72.2
Roof Edge
Right 96.2
Large Fascia
Beam Assembly
Flush
Flush
(x 20)
Large Fascia
Beam Assembly
F15.3
Weather Seal
Ridge Clip
102.5
F15.4
Side View
Flush
Roof Edge
Left 72.2
Roof Edge
Right 96.2
Ridge Clip
102.5
Ridge Clip
102.5
Ridge
Clip
102.5
R0
(x 5 per side)
S39
20 x #7 x 3/4” Wood Screw
S39
R0
S39
2.5 in
(63.5 mm)
Weather
Seal
Side View
