F16.6
E: Lift second Large Roof Panel Assembly with Roof to Beam Brackets over Large Beam Assembly taking care
not to drag the panel on the beams then set in place beside the Small Roof Panel Assembly. (F16.6)

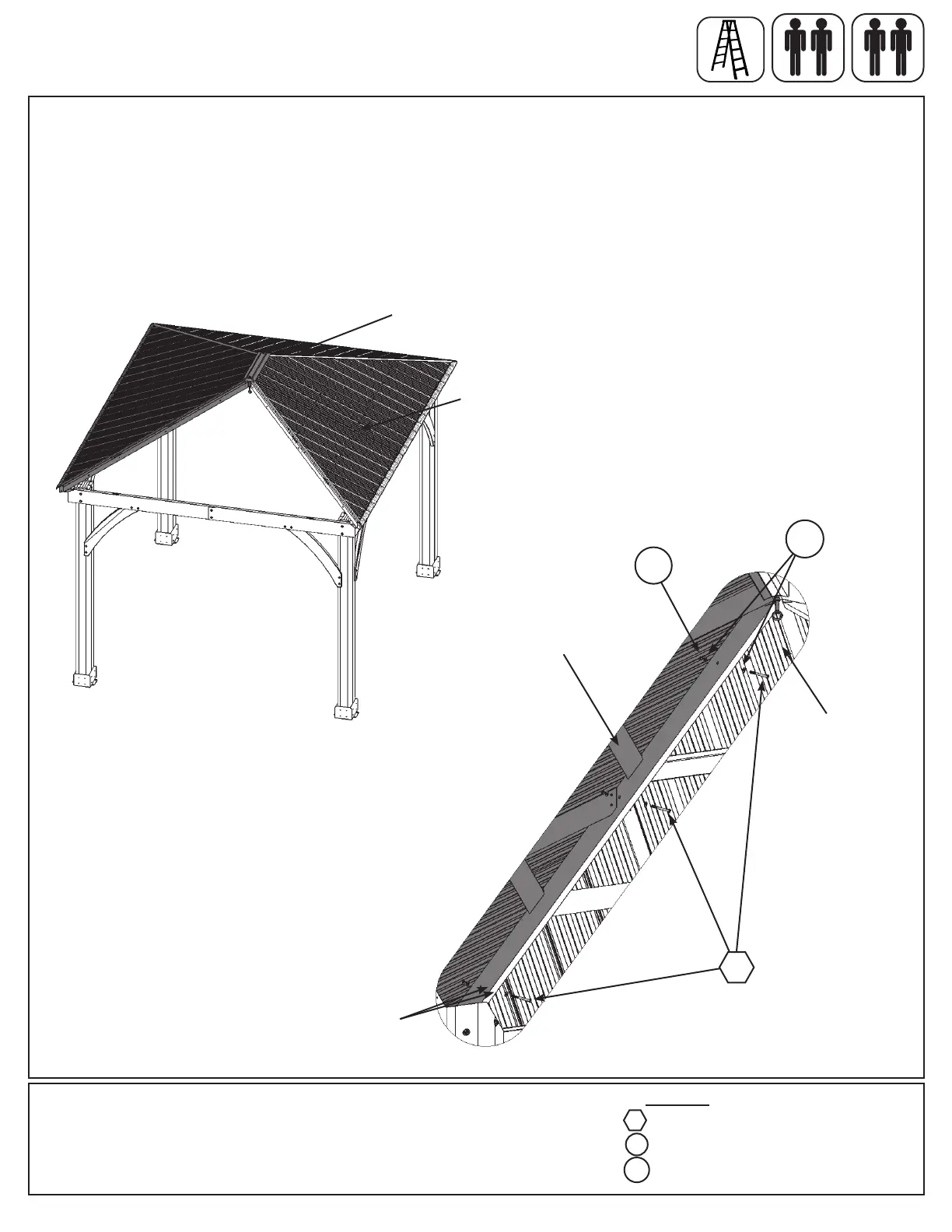

F: Starting at the bottom and working up connect Large Roof Panel Assembly to Small Roof Panel Assembly
through the Corner Rafters with three H11 (with two FW12 and one LN1). To align bolt holes helper on the center
ladder may have to push up in the center of the panels and others make sure corners are aligned. Make sure all
bolts are tight. (F16.7)
Large Roof
Panel Assembly
F16.7
Hardware
Step 16: Attach Roof Panels to Frame
Part 3
x 3
Small Roof
Panel Assembly
Large Roof
Panel Assembly
Small Roof
Panel Assembly
(2203)
&
(2204)
H11
FW12
LN1
6 x 1/4-5/16” large washer
3 x 1/4 x 2-3/4” Hex Bolt
H11
3 x 1/4” lock nut
LN1
FW12
To Next Page
