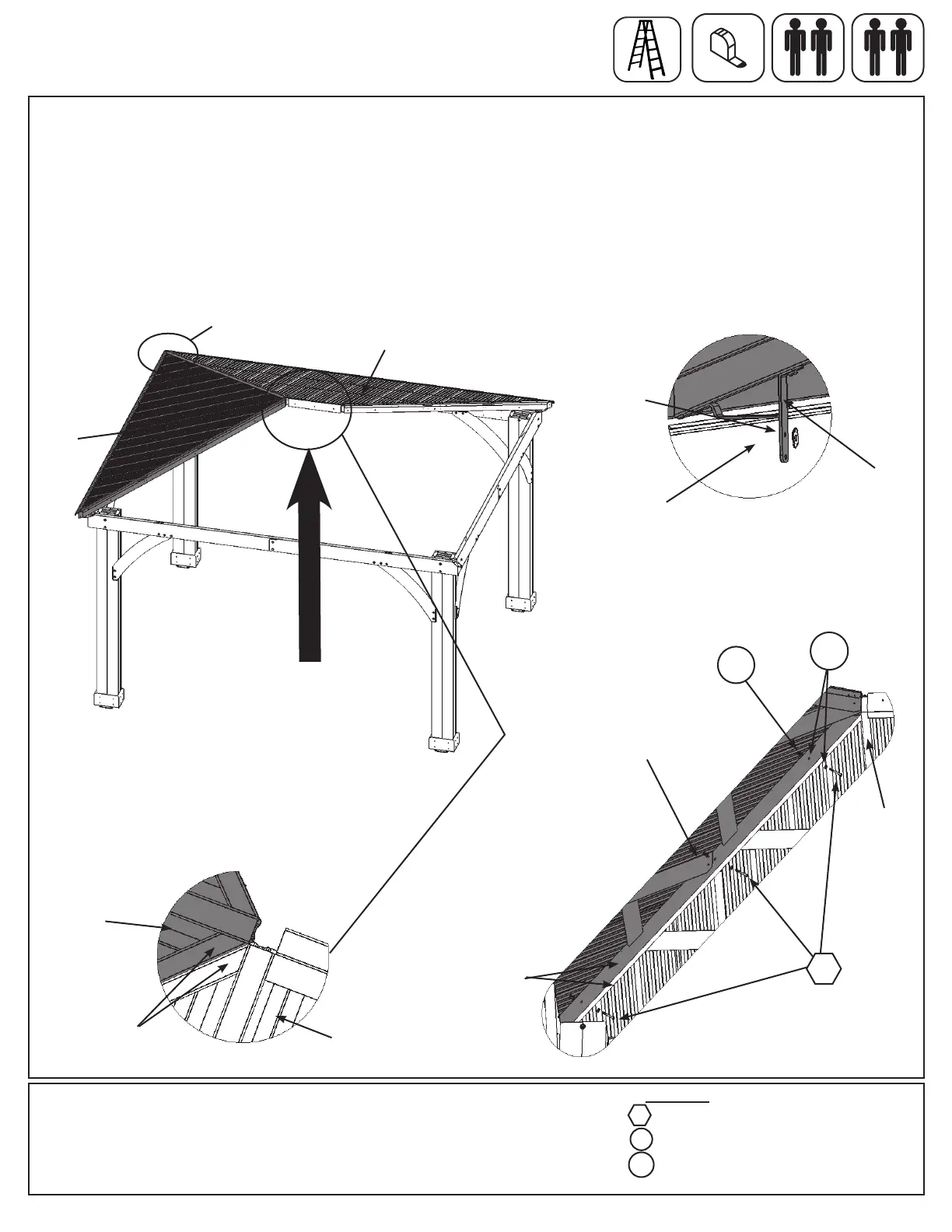

Step 16: Attach Roof Panels to Frame
Part 2
F16.4
C: Lift a Small Roof Panel Assembly with Roof to Beam Brackets over Short Beam Assembly taking care not to
drag the panel on the beams. Make sure the middle Roof to Beam Bracket lines up to the center mark and the
Corner Rafters are ush with each other. One person must remain on the center ladder to hold both panels in
place until three panels are up and secure. (F16.2, F16.3 and F16.4)
D: Starting at the bottom and working up connect Large Roof Panel Assembly to Small Roof Panel Assembly
through the Rafter Corners with three H11 (with two FW12 and one LN1). To align bolt holes helper in the center
may have to push up the center of the panels and others make sure corners are aligned. Make sure all bolts are
tight. (F16.2 and F16.5)
F16.2
F16.3
x 3
(2203)
&
(2204)
F16.5
Hardware
Rafter
Corner
Small Roof
Panel Assembly
Make sure
corners are
aligned
Small Roof
Panel
Assembly
Start at bottom and
work up the rafters
One assembler
to support roof
panel(s) at all
times until secure
Roof to
Beam
Bracket
Beam
Assembly
Line middle
bracket to
center mark
Large Roof
Panel
Assembly
Small Roof
Panel
Assembly
Large Roof
Panel
Assembly
Large Roof
Panel Assembly
LN1
FW12
H11
6 x 1/4-5/16” large washer
3 x 1/4 x 2-3/4” Hex Bolt
H11
3 x 1/4” lock nut
LN1
FW12
To Next Page
