Remember to push up center to assist with alignment.

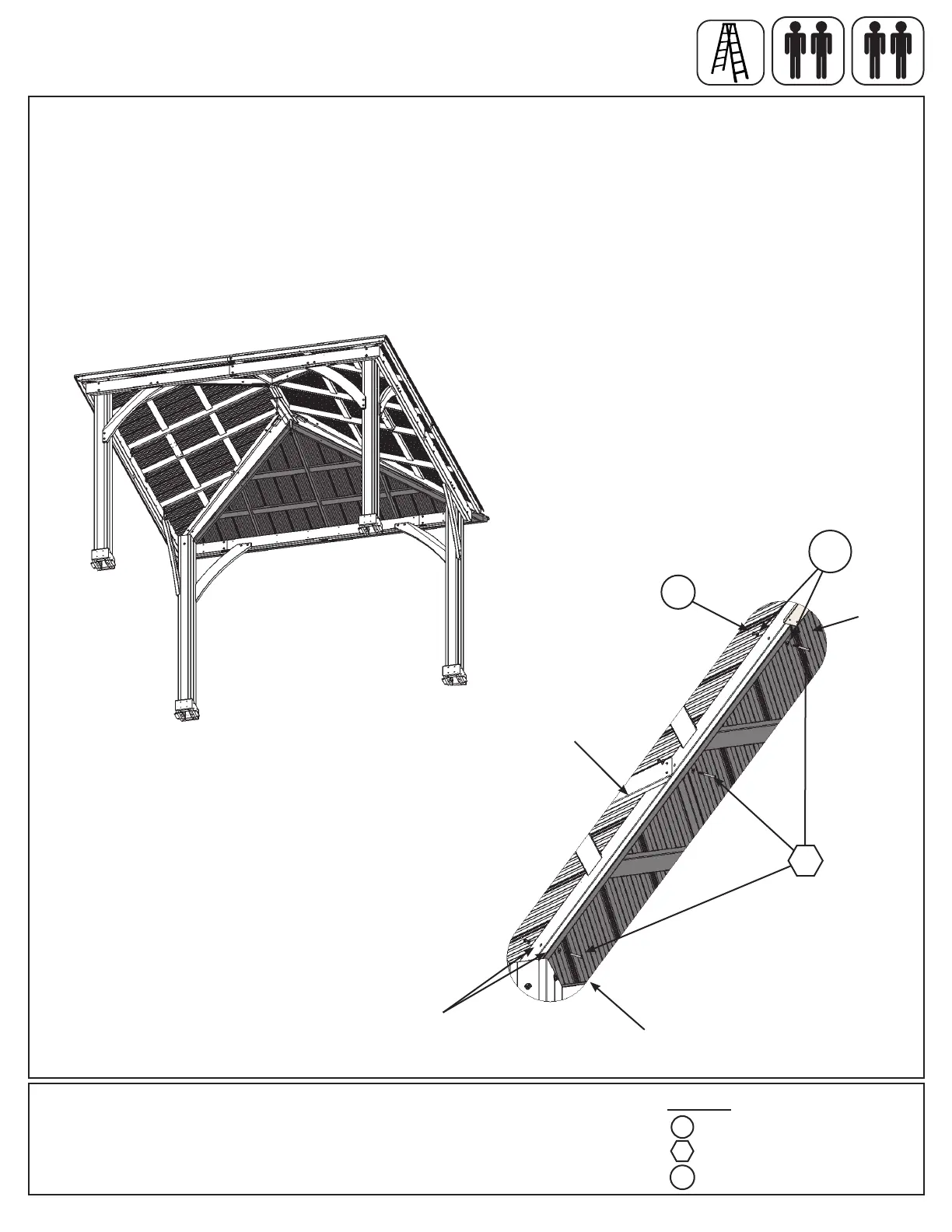

B: Starting at the bottom and working up loosely connect Roof Panel Assemblies through the Corner Rafters
with three H11(with two FW12 and one LN1) per side. To align bolt holes helper on the center ladder may have
to push up in the center of the panels and others make sure corners are aligned. Tighten bolts when all six have
been installed. (F19.3 and F19.4)
Corner Rafters should be aligned with Roof to Post Bracket.
Corner
Rafters
Hardware
F19.3
F19.4
Small Roof Panel
Assembly
Bottom
holes rst
x 3
Step 19: Attach Final Roof Panel
Part 2
Large
Roof
Panel
Assembly
LN1
FW12
H11
6 x 1/4 x 2-3/4” Hex Bolt
H11
6 x 1/4” lock nut
LN1
12 x 1/4-5/16” large washer
FW12
