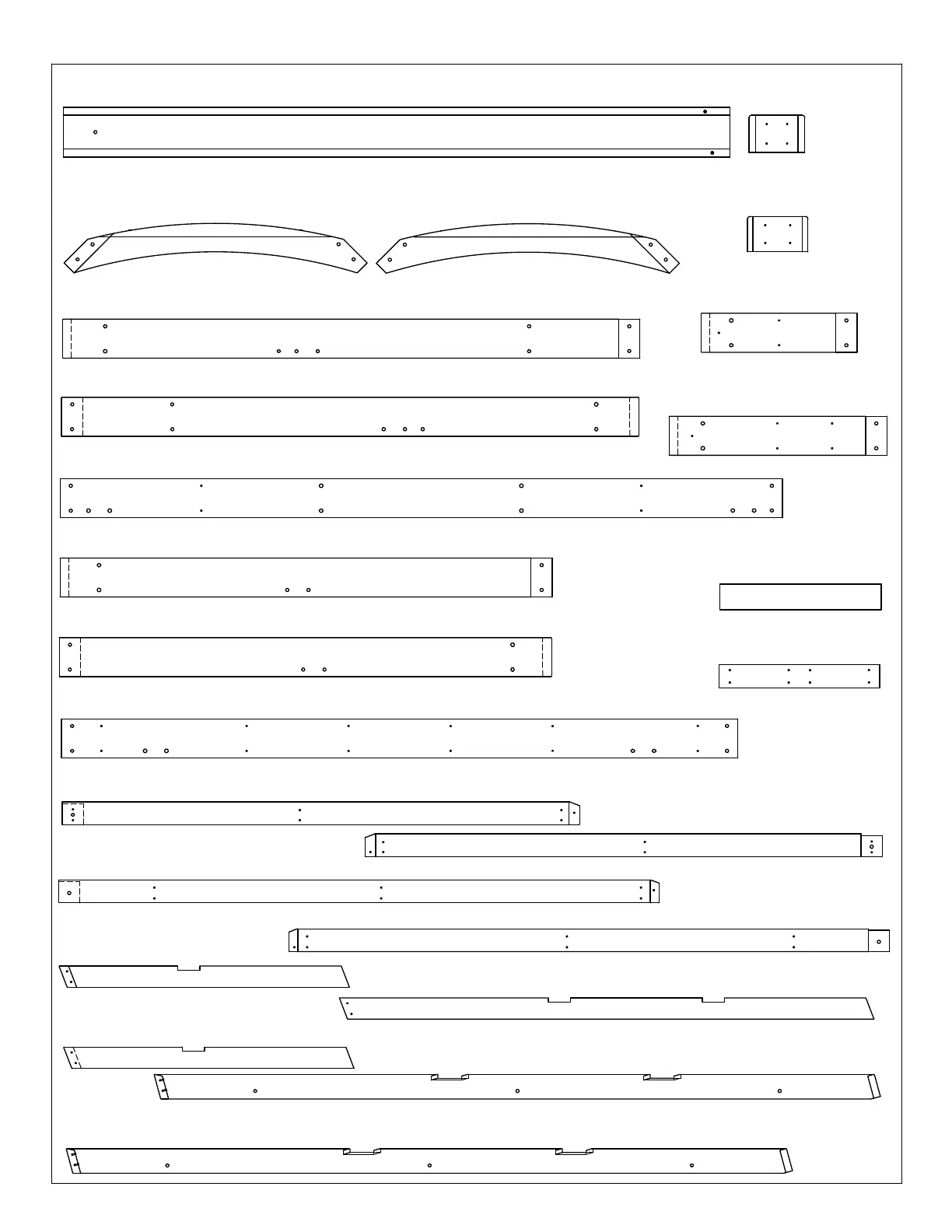

Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
152.4 x 177.8 x 2387.6 mm (6 x 7 x 94")
4pc. (2220) -
6x7 Post FSC
31.8 x 139.7 x 1757.4 mm (1-1/4" x 5-1/2" x 69-3/16")
2pc.
(2202)
Beam Right - Short FSC
(Y50229-2202)
30 x 177.5 x 1085.9 mm
(1-3/16" x 7" x 42-5/8")
4pc. (2219) -
Gusset Right FSC
(Y70229-2219)
31.8 x 139.7 x 2062.1 mm (1-1/4" x 5-1/2" x 81-3/16")
2pc. (2200) Beam Right - Long FSC
(Y50229-2200)
(Y70229-2220)
(Y50229-329)
23.8 x 133.4 x 225.4 mm
(15/16" x 5-1/4" x 8-7/8")
8pc. (329) -
Long Plinth FSC
31.8 x 139.7 x 2062.1 mm (1-1/4" x 5-1/2" x 81-3/16")
2pc. (2199)
Beam Left - Long FSC
(Y50229-2199)
30 x 177.5 x 1085.9 mm
(1-3/16" x 7" x 42-5/8")
4pc. (2215) -
Gusset Left FSC
(Y70229-2215)
(Y50229-436)
38.1 x 82.6 x 2157.7 mm
(1-1/2" x 3-1/4" x 84-15/16")
2pc. (436) -
Facia Right - Large Roof FSC
38.1 x 82.6 x 2157.7 mm
(1-1/2 x 3-1/4 x 84-61/64")
2pc. (435) -
Fascia Left - Large Roof FSC
(Y50229-435)
31.8 x 139.7 x 1757.4 mm (1-1/4" x 5-1/2" x 69-3/16")
2pc.
(2201)
Beam Left - Short FSC
(Y50229-2201)
31.8 x 139.7 x 2422.1 mm (1-1/4" x 5-1/2" x 95-3/8")
2pc.
(2196)
Beam Center - Short FSC
(Y50229-2196)
38.1 x 82.6 x 1853 mm
(1-1/2 x 3-1/4 x 72-15/16)
2pc. (444) -
Fascia Right FSC
(Y50229-444)
(Y50229-2213)
31.8 x 139.7 x 2587.5 mm (1-1/4" x 5-1/2" x 101-7/8")
2pc. (2195)
Beam Center - Long FSC
(Y50229-2195)
38.1 x 82.6 x 1853 mm (1-1/2 x 3-1/4 x 72-15/16)
2pc. - (443)
Fascia Left FSC
(Y50229-443)
25.4 x 88.9 x 2601.9 mm (1" x 3.5" x 102-7/16")
4pc. (2204)
- Corner Rafter - Right
(Y50229-2204)
31.8 x 76.2 x 1915.4 mm (1-1/4" x 3" x 75-3/8")
6pc. (2206)
- Rafter FSC
(Y50229-2206)
25.4 x 76.2 x 574.9 mm
(1-1/4" x 3" x 22 5/8")
2pc. (2214) -
Strap Brace FSC
(Y50229-2214)
23.8 x 133.4 x 200 mm
(15/16" x 5-1/4" x 7-7/8")
8pc. (459) -
Plinth FSC
(Y50229-459)
31.8 x 76.2 x 1040.2 mm
(1-1/4" x 3" x 40-15/16")
4pc.
(2213)
Rafter Short - Left FSC
31.8 x 76.2 x 1040.2 mm
(1-1/4" x 3" x 40-15/16")
4pc.
(2212)
Rafter Short - Right FSC
(Y50229-2212)
25.4 x 88.9 x 2601.9 mm (1" x 3.5" x 102-7/16")
4pc. (2203)
- Corner Rafter - Left
(Y50229-2203)
31.8 x 139.7 x 552.8 mm
(1-1/4" x 7-1/2" x 21-3/4")
4pc. (2198) -
Beam End - Short FSC
(Y50229-2198)
31.8 x 93.8 x 577.9 mm
(1-1/4 x 3-11/16 x 22-3/4")
2pc. (434) -
Top FSC
(Y50229-434)
31.8 x 139.7 x 774.7 mm
(1-1/4" x 7-1/2" x 30 1/2")
4pc. (2197) -
Beam End - Long FSC
(Y50229-2197)
