Yardistry YM12784 - Part Identification - Continued Part 2; Beam and Strap Components

10 support@yardistrystructures.com

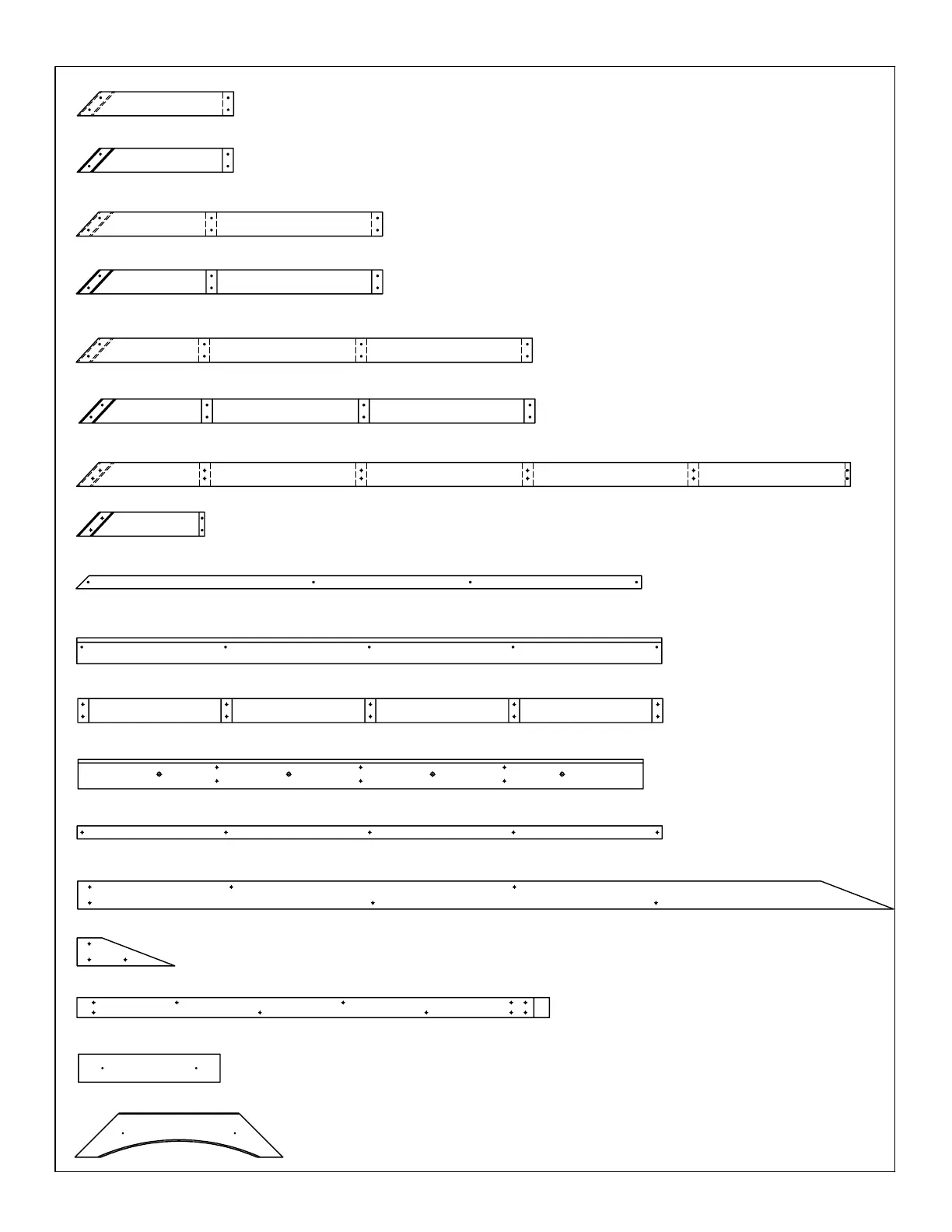

2pc. (681) Left Top Strap FSC 495.1mm (19-1/2")
Y50229-681
Y50229-682
2pc. (682) Right Top Strap FSC 495.1mm (19-1/2")
Y50229-683
2pc. (683) Left Mid Strap FSC 972.3mm (38-1/4")
2pc. (684) Right Mid Strap FSC 972.3mm (38-1/4")
Y50229-684
2pc. (685) Left Bot Strap FSC 1448.1mm (57")
Y50229-685
2pc. (686) Right Bot Strap FSC 1448.1mm (57")
Y50229-686
Y50229-690
4pc. (690) Soffit End FSC 1792mm (70-9/16")
Y50229-687
2pc. (687) Bottom Strap LT FSC 2457mm (96-3/4")
2pc. (688) Bottom Strap RT FSC 406.3mm (16")
Y50229-688
Y50229-1192
4pc. (1192) Mid Fascia FSC 1857.4mm (73-1/8")
4pc. (1194) Rafter Top FSC 1793.9mm (70-5/8")
Y50229-1194
Y50229-1195
4pc. (1195) Soffit FSC 1857.6mm (73-1/8")
12pc. (1193) Centre Strap FSC 1857.5mm (73-1/8")
Y50229-1193
2pc. (1202) Centre Beam Long FSC 2590.8mm (102")
Y50229-1202
2pc. (1204) Centre Beam Bottom FSC 1500mm (59")
Y50229-1204
1pc. (1205) Centre Upright FSC 444mm (17-1/2")
Y70229-1205
Y70229-1206
2pc. (1206) Centre Gusset FSC 660.4mm (26")
Y50229-1203
2pc. (1203) Centre Beam Short FSC 309mm (12-3/16")
Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
