Yardistry YM12784 - Part Identification - Continued; Roof Rafter and Fascia Components

9 support@yardistrystructures.com
Dimensions are approximate and are shown to assist in the identication of parts for
assembly. Actual dimensions may be smaller or larger.

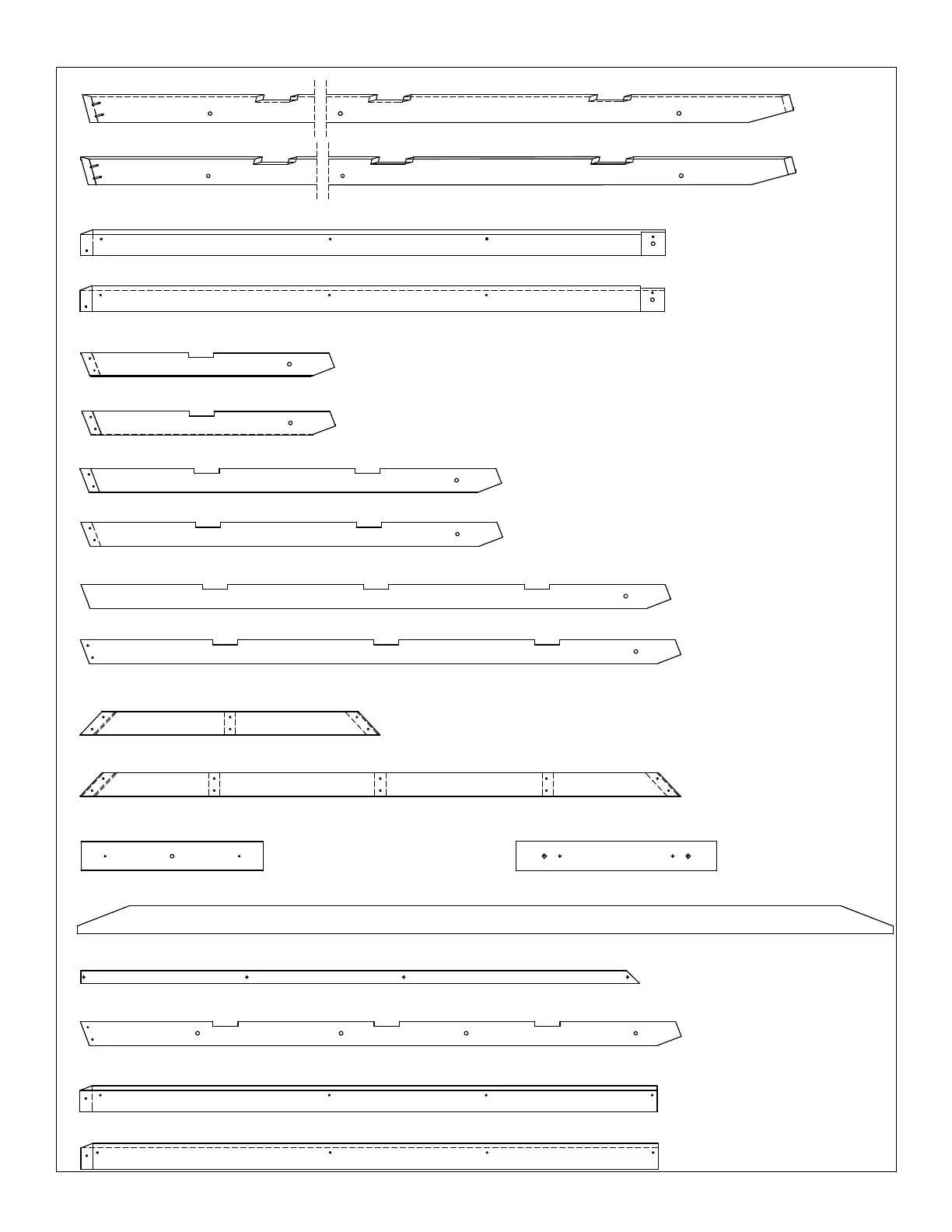

Part Identication ( )
Y50229-623
4pc. (623) Rafter Corner Right FSC 2597.8mm (102¼")
2pc. (634) Rafter FSC 1907mm (75-1/16")
Y50229-634
2pc. (637) Mid Strap FSC 1908.3mm (75-1/8")
Y50229-637
2pc. (627) Fascia Left Short FSC 1855.5mm (73-1/16")
Y50229-627
2pc. (628) Fascia Right Short FSC 1855.5mm (73-1/16")
Y50229-628
Y50229-629
4pc. (629) Rafter Short RT FSC 805.5mm (31-3/4")
4pc. (630) Rafter Short LT FSC 805.5mm (31-3/4")
Y50229-630
4pc. (632) Rafter Centre RT FSC 1338.9mm (52-3/4")
Y50229-632
4pc. (631) Rafter Centre LT FSC 1338.9mm (52-3/4")
Y50229-631
Y50229-636
2pc. (636) Top Strap FSC 953.8mm (37-9/16")
12 pc. (675) Middle Rafter FSC 1907mm (75-1/16")
Y50229-675
Y50229-646
8pc. (646) Tie FSC 2590.8mm (102")
2pc. (676) Left End Fascia FSC 1833.3mm (72-3/16")
Y50229-676
2pc. (677) Right End Fascia FSC 1833.3mm (72-3/16")
Y50229-677
12pc. (633) Centre Rafter FSC 1873.6mm (73-3/4")
Y50229-633
4pc. (645) Spacer FSC 578.2mm (22-3/4")
Y50229-645
Y50229-1200
2pc. (1200) Spacer Long FSC 637.4mm (25-1/16")
4pc. (648) Sot FSC 1774.5mm (69-7/8")
Y50229-648
Y50229-624
4pc. (624) Rafter Corner Left FSC 2597.8mm (102¼")
