Yardistry YM12784 - Part Identification; Main Structural Wood Parts

8 support@yardistrystructures.com
assembly. Actual dimensions may be smaller or larger.

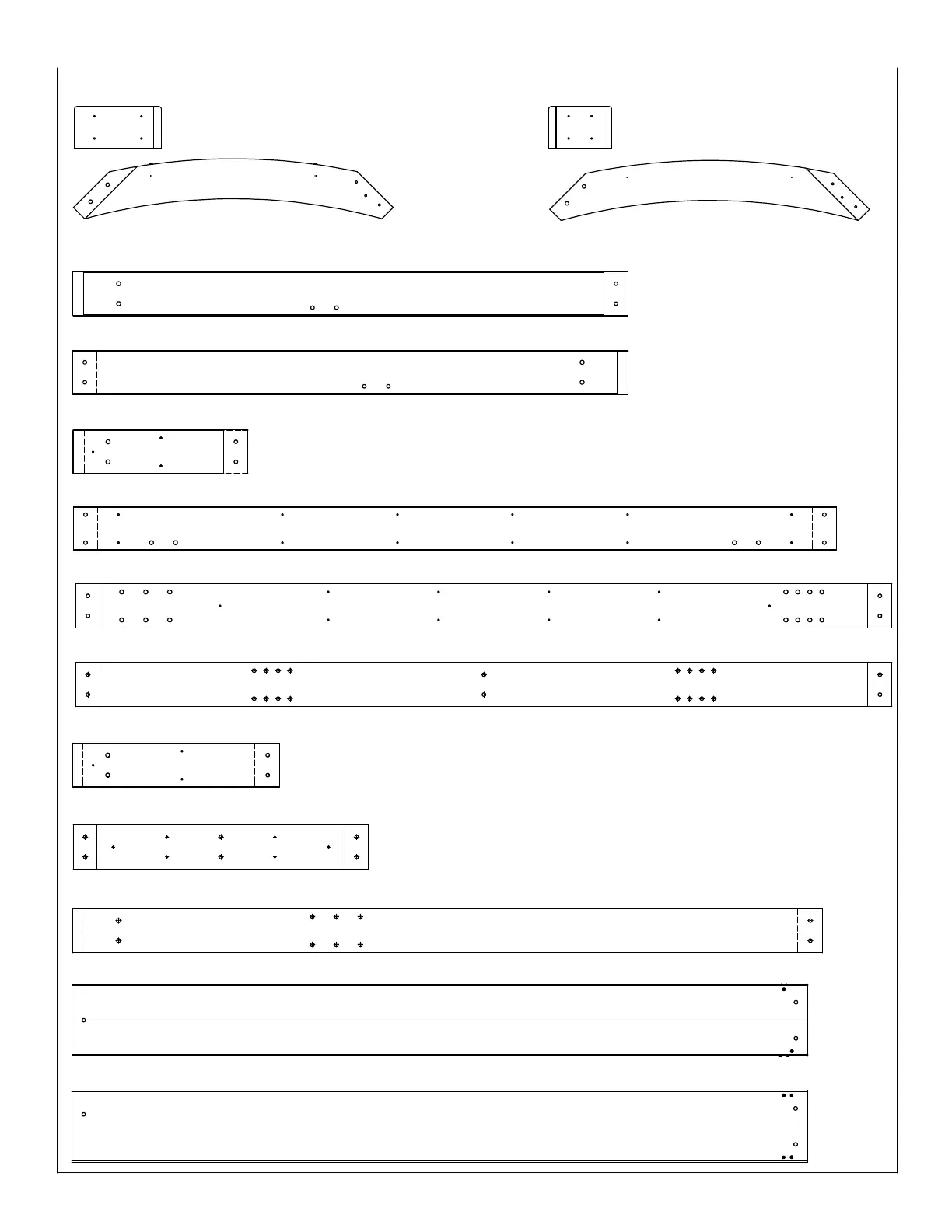

Part Identication ( )
Dimensions are approximate and are shown to assist in the identication of parts for
2pc. (1207) Post 6 x 9 FSC 2336.8mm (92")
200mm (7-7/8")
12pc. (459) Plinth FSC
Y50229-459
Y50229-460
12pc. (460) Plinth Long FSC
276.2mm (10-7/8")
2pc. (1005) Beam Short Centre FSC 2422.1mm (95-3/8")
Y50229-1005
Y50229-1004
4pc. (1004) Beam Short End FSC 555.4mm (21-7/8")
Y70229-706
6pc. (706) Gusset LT FSC 1015mm (39-15/16")
2pc. (1198) Inside Beam FSC 938.1mm (36-15/16")
Y50229-1198
4pc. (1006) 6 x 9 Post FSC 2336.8mm (92")
Y70229-1207
Y70229-1006
2pc. (1003) Beam Short Right FSC 1763.3mm (69-7/16")
Y50229-1003
Y50229-1196
2pc. (1196) Beam FSC 2590.8mm (102")
2pc. (1002) Beam Short Left FSC 1763.3mm ( 69-7/16")
Y50229-1002
Y70229-705
6pc. (705) Gusset RT FSC 1015mm (39-15/16")
4pc. (1197) Beam End FSC 657.3mm (25-7/8")
Y50229-1197
4pc. (1199) Outer Ends FSC 2380.5mm (93-11/16")
Y50229-1199
4pc. (1201) Inside Middle Beam FSC 2590.8mm (102")
Y50229-1201
