Step 2: Post Assemblies
Part 1 - Main Posts
Wood Parts
F2.1
(459)
Plinth
Top
Bottom
#8 x 1-1/2” Wood Screws
(x 2 per Post Mount, from
outside)
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
(1006) 6 x 9 Post
6 x9 Post Mount
F2.2
F2.3
Rounded
Edge on Top
Hardware
80 x #8 x 1-1/2” Wood Screw
16 x #10 x 1-1/4” Pan Screw
8 x 6 x 9 Post Mount
16 x 5/16” T-Nut
16 x 5/16 x 1-1/4” Hex Bolt
(with 5/16” lock washer, 1/4 - 5/16” large washer)
6 x 9 Post
Mount
5/16” T-Nut (x
4 per Post)
1/4 - 5/16”
Large Washer
5/16” Lock
Washer
5/16 x 1-1/4” Hex Bolt
(x2 per Post Mount,
from inside)
Short
Side
Long
Side
(459)
Plinth
(460)
Plinth
Long
(460)
Plinth
Long
#10 x 1-1/4”
Pan Screws
(x 2 per Post
Mount, from
inside)

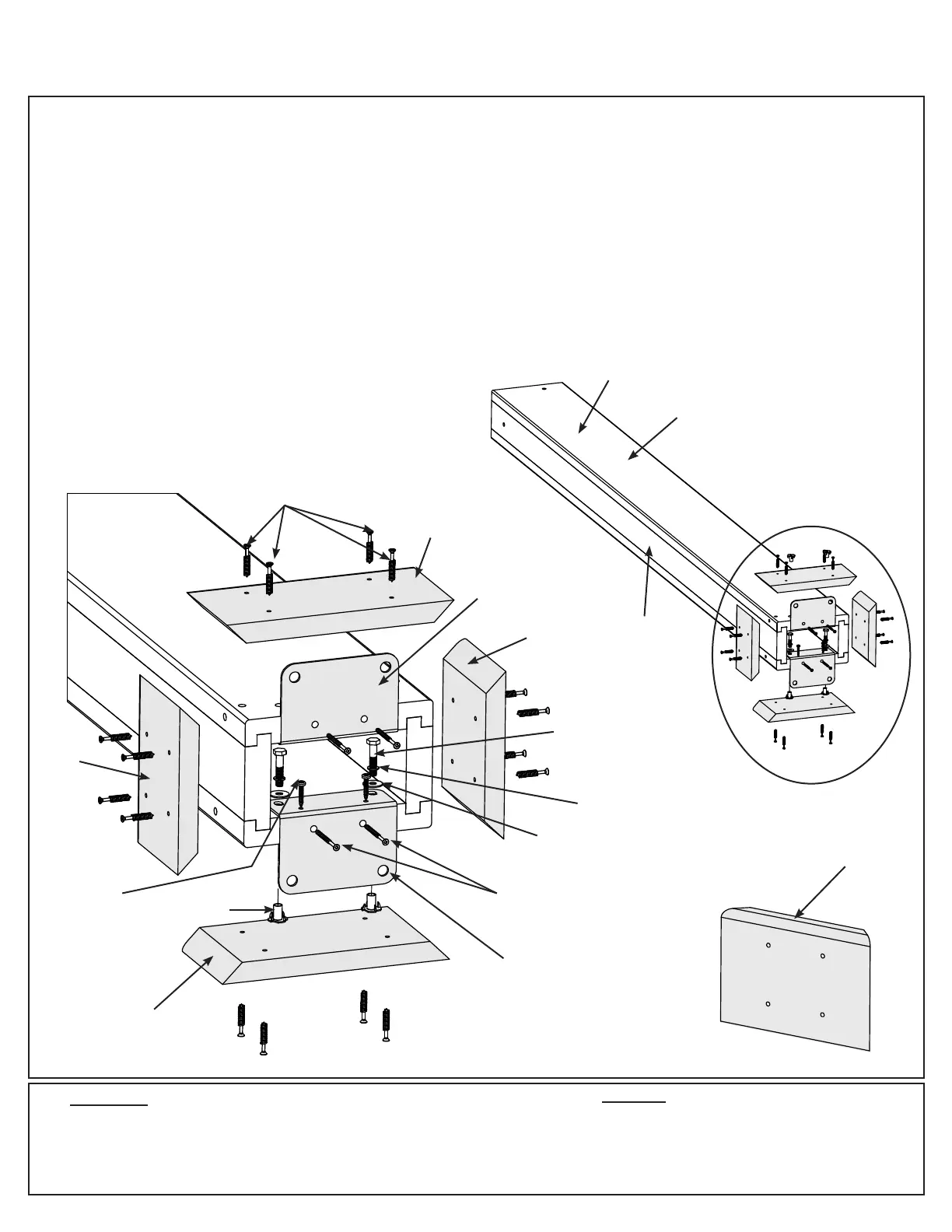

A: At the bottom of one (1006) 6 x 9 Post insert two 5/16” T-Nuts on the outside of each long side. (F2.2)
B: At the bottom of the same (1006) 6 x 9 Post place two 6 x 9 Post Mounts tight to the bottom and inside faces
on the long sides as shown in F2.1 and F2.2. Loosely attach with two 5/16 x 1-1/4” Hex Bolt (with 5/16” lock
washer and 1/4-5/16” large washer) per mount so they connect to the T-Nuts. From the bottom attach with two #8
x 1-1/2” Wood Screws and two #10 x 1-1/4” Pan Screws per mount. Tighten bolts.
C: Flush to the bottom of (1006) 6 x 9 Post place one (460) Plinth Long on each long side and one (459) Plinth on
each short side and attach with four #8 x 1-1/2” Wood Screws per plinth. Rounded edges on top. (F2.1, F2.2 and
F2.3)
D: Repeat Steps A - C three more times to make four Main Post Assemblies.
4 x (1006) 6 x 9 Post
8 x (459) Plinth
8 x (460) Plinth Long
