Yardistry YM12784 - Step 2: Post Assemblies - Mid Posts; Attaching T-Nuts and Post Mounts; Attaching Plinth to Posts

16 support@yardistrystructures.com

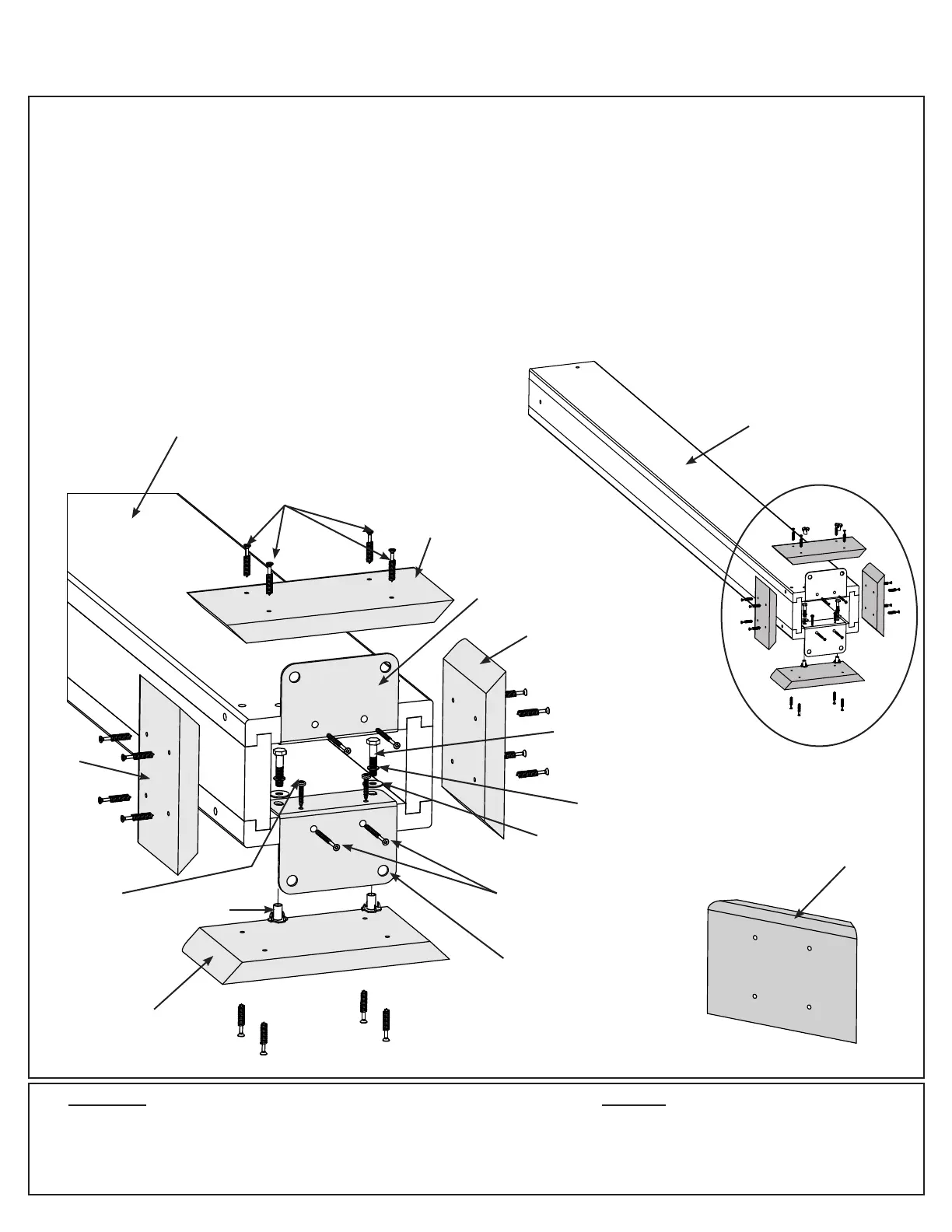

E: At the bottom of one (1207) Post 6 x 9 insert two 5/16” T-Nuts on the outside of two sides, as shown in F2.5.
F: At the bottom of the same (1207) Post 6 x 9 place two 6 x 9 Post Mounts tight to the bottom and inside faces
on the sides as shown in F2.4 and F2.5. Loosely attach with two 5/16 x 1-1/4” Hex Bolts (with 5/16” lock washer
and 1/4-5/16” large washer) per mount so they connect to the T-Nuts. From the bottom attach with two #8 x 1-1/2”
Wood Screws and two #10 x 1-1/4” Pan Screws per mount. Tighten bolts.
G: Flush to the bottom of (1207) Post 6 x 9 place one (460) Plinth Long on each long side and one (459) Plinth
on each short side, attach with four #8 x 1-1/2” Wood Screws per plinth. Rounded edges on top. (F2.4, F2.5 and
F2.6)
H: Repeat Steps E - G one more time to make two Mid Post Assemblies.
Wood Parts
F2.4
Top
Bottom
(1207) Post 6 x 9
F2.5
F2.6
Hardware
40 x #8 x 1-1/2” Wood Screw
8 x #10 x 1-1/4” Pan Screw
4 x 6 x 9 Post Mount
8 x 5/16” T-Nut
8 x 5/16 x 1-1/4” Hex Bolt
(with 5/16” lock washer, 1/4 - 5/16” large washer)
Step 2: Post Assemblies
Part 2 - Mid Posts
2 x (1207) Post 6 x 9
4 x (459) Plinth
4 x (460) Plinth Long
(459)
Plinth
#8 x 1-1/2” Wood Screws
(x 2 per Post Mount, from
outside)
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
6 x9 Post Mount
6 x 9 Post
Mount
5/16” T-Nut (x
4 per Post)
1/4 - 5/16”
Large Washer
5/16” Lock
Washer
5/16 x 1-1/4” Hex Bolt
(x2 per Post Mount,
from inside)
(459)
Plinth
(460)
Plinth
Long
(460)
Plinth
Long
#10 x 1-1/4”
Pan Screws
(x 2 per Post
Mount, from
inside)
Rounded
Edge on Top
(1207) Post 6 x 9
