Yardistry YM12784 - Step 3: Short Beam Assembly - Part 1; Connecting Beam Sections

17 support@yardistrystructures.com
5/16”
T-nut
Step 3: Short Beam Assembly
Part 1
HardwareWood Parts
A: Connect one (1002) Beam Short Left and one (1003) Beam Short Right using two 5/16 x 1-1/2” Hex Bolts
(with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F3.1 and F3.2.
B: Connect one (1004) Beam Short End to each end of one (1005) Beam Short Centre using two 5/16 x 1-1/2”
Hex Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) per end as shown in F3.1 and F3.2.
C: Repeat Steps A and B one more time to make two Short Beam L-R Assemblies and two Short Beam End
Assemblies.
(1002) Beam
Short Left
4 x (1004) Beam Short End
2 x (1005) Beam Short Centre
2 x (1002) Beam Short Left
2 x (1003) Beam Short Right

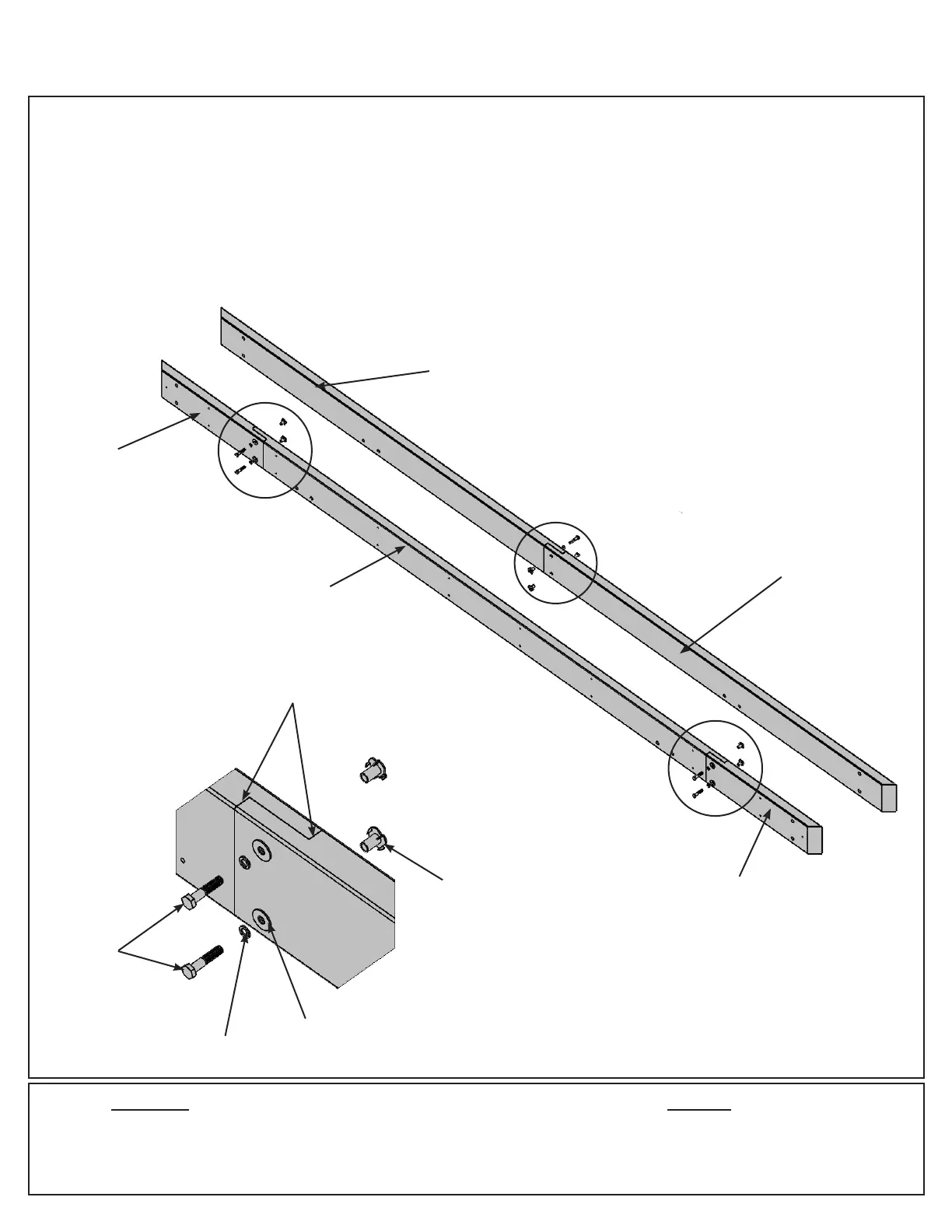

F3.1
12 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
F3.2
1/4-5/16”
Large Washer
5/16 x 1-1/2”
Hex Bolt
Tight
(1003) Beam
Short Right
(1005) Beam
Short Centre
(1004) Beam
Short End
5/16” Lock
Washer
(1004) Beam
Short End
Make sure bolt heads
are on the outside of
each Beam Assembly
