Yardistry YM12784 - Step 3: Short Beam Assembly - Part 2; Joining Short Beam Assemblies

18 support@yardistrystructures.com
Hardware
36 x #8 x 2-1/2” Wood Screw
F3.3
Short Beam
End Assembly
F3.4
Flush
Short Beam L-R
Assembly

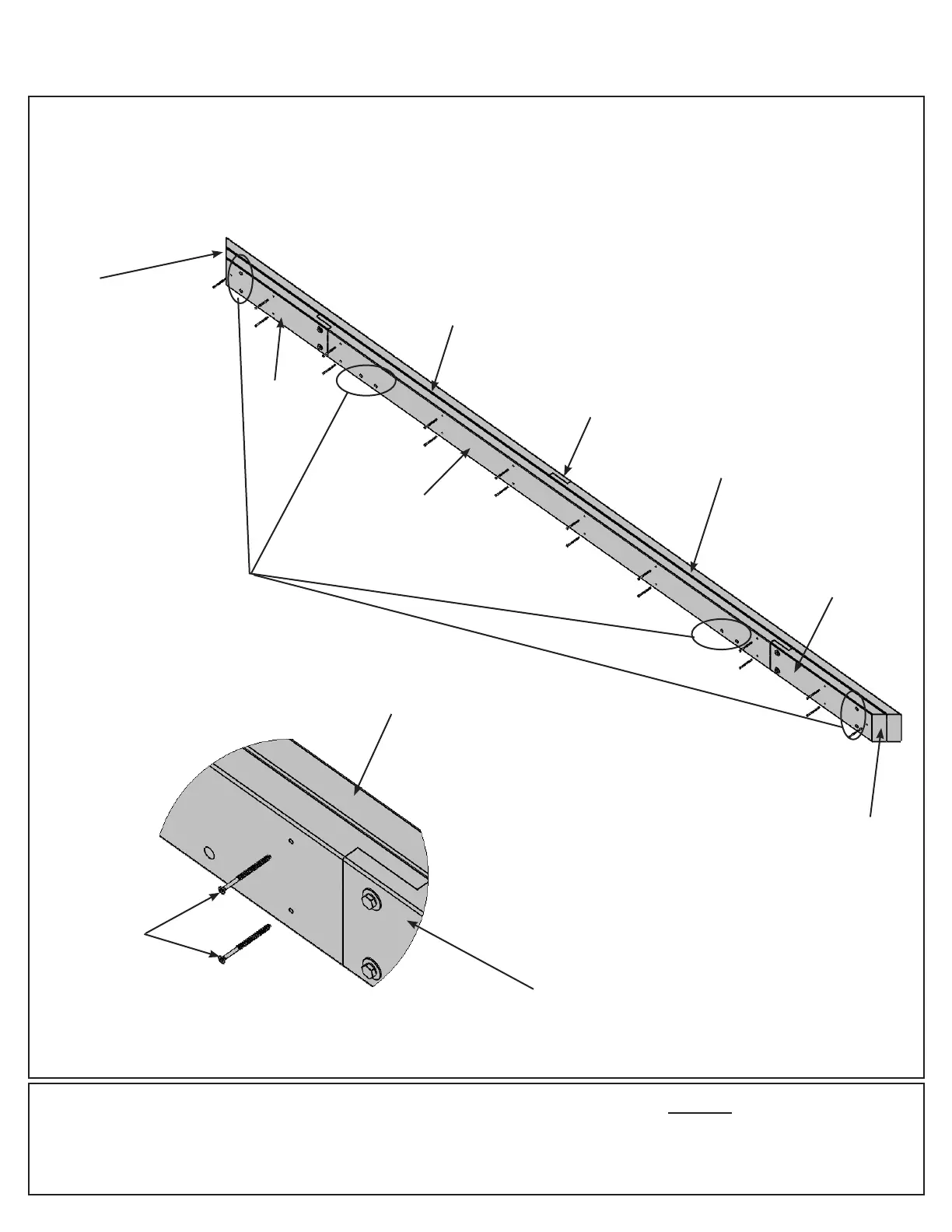

D: Place one Short Beam L-R Assembly tight to one Short Beam End Assembly so the ends are ush. Match
the bolt holes in each (1004) Beam Short End with the bolt holes in (1002) Beam Short Left and (1003) Beam
Short Right. Attach with 18 #8 x 2-1/2” Wood Screws. (F3.3 and F3.4)
E: Repeat Step D one more time to make two Short Beam Assemblies.
Flush
Short Beam
End Assembly
Short Beam L-R
Assembly
#8 x 2-1/2” Wood
Screws (x 18 per
assembly)
(1002) Beam
Short Left
(1003) Beam
Short Right
(1004) Beam
Short End
Match bolt
holes
Step 3: Short Beam Assembly
Part 2
(1004) Beam
Short End
Hint: Use bolts at
both ends to line up
bolt holes. Remove
bolts once step is
complete
