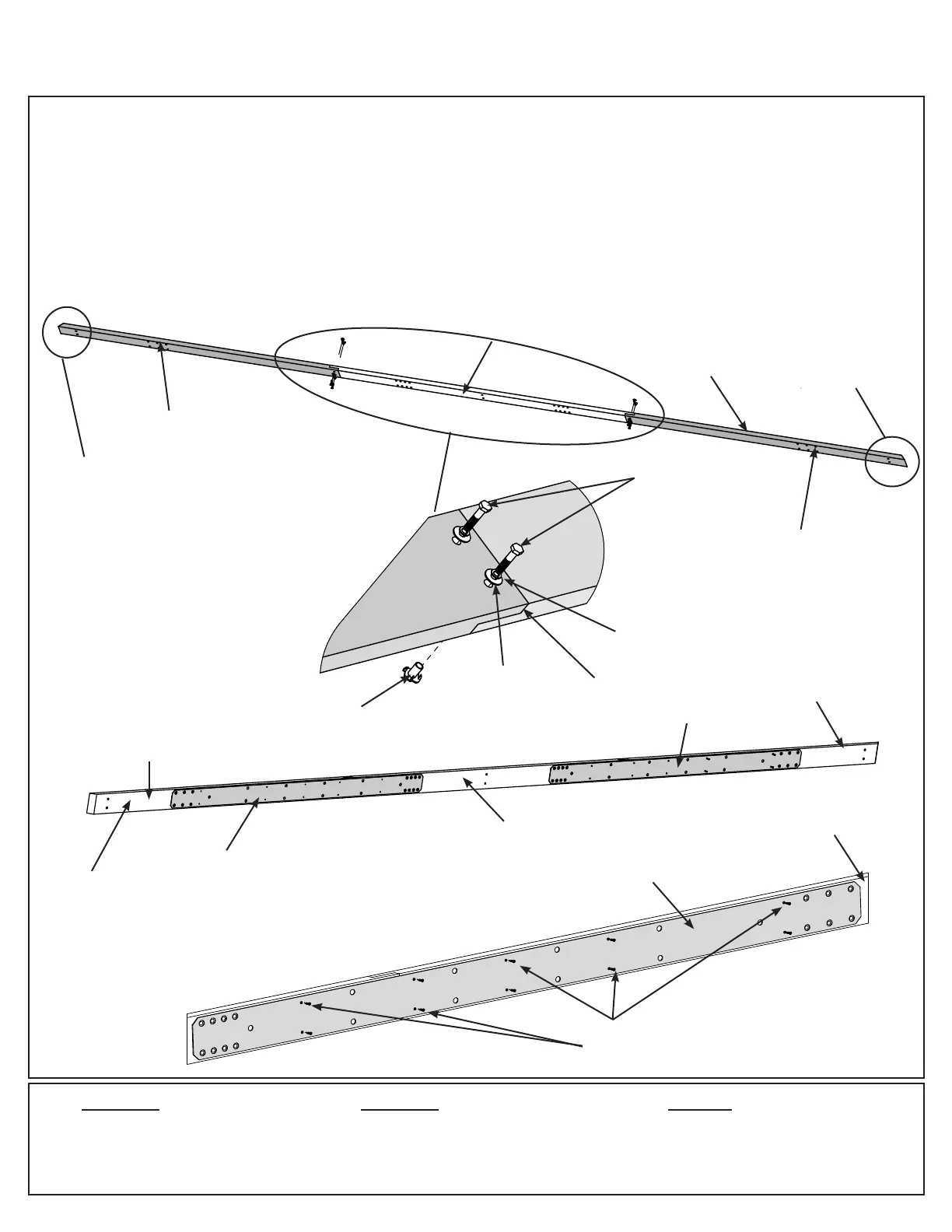

Step 4: Long Beam Assembly
Part 1
A: Connect one (1199) Outer End to each end of one (1196) Beam using four 5/16 x 1-1/2” Hex Bolts (with 5/16”
lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F4.1 and F4.2. Notice orientation of angled
ends. This will create an Outer Beam Assembly.
B: On the short side of the Outer Beam Assembly place two Short Beam Inserts so they t over the holes in
(1196) Beam and (1199) Outer Ends. Attach Short Beam Inserts to Outer Beam Assembly with ten #7 x 3/4”
Wood Screws per insert, as shown in F4.3 and F4.4.
C: Repeat Steps A and B to make two Outer Beam Assemblies.
HardwareWood Parts
2 x (1196) Beam
4 x (1199) Outer End
8 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
40 x #7 x 3/4” Wood Screw
F4.1
F4.2
Short Beam
Insert
#7 x 3/4”
Wood Screw
x 10 per insert
Tight
5/16 x 1-1/2”
Hex Bolt
(1196) Beam
(1199) Outer End
Make sure bolt heads are
on the sides as shown
for each Outer Beam
Assembly
F4.3
F4.4
Notice orientation
of angled ends
Notice orientation
of angled ends
(1199) Outer End
5/16” T-nut
5/16” Lock
Washer
1/4-5/16”
Large Washer
Long Side
Short Side
(1196) Beam
(1199) Outer End
(1199) Outer End
Short Beam
Insert
Outer Beam Assembly
Short Beam
Insert
Component
4 x Short Beam Insert
