Yardistry YM12784 - Step 5: Frame Assembly and Anchoring - Part 3; Attaching Long Beam Assemblies to Main Posts

24 support@yardistrystructures.com
Hardware
F5.7
Long Beam
Assembly
Short Beam
Assembly
Step 5: Frame Assembly and Anchoring
Part 3
x 3
4 x 3/8 x 9-1/4” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
F: Move your Post Assemblies to the nal location. Make sure the ground is at and level before continuing
assembly.

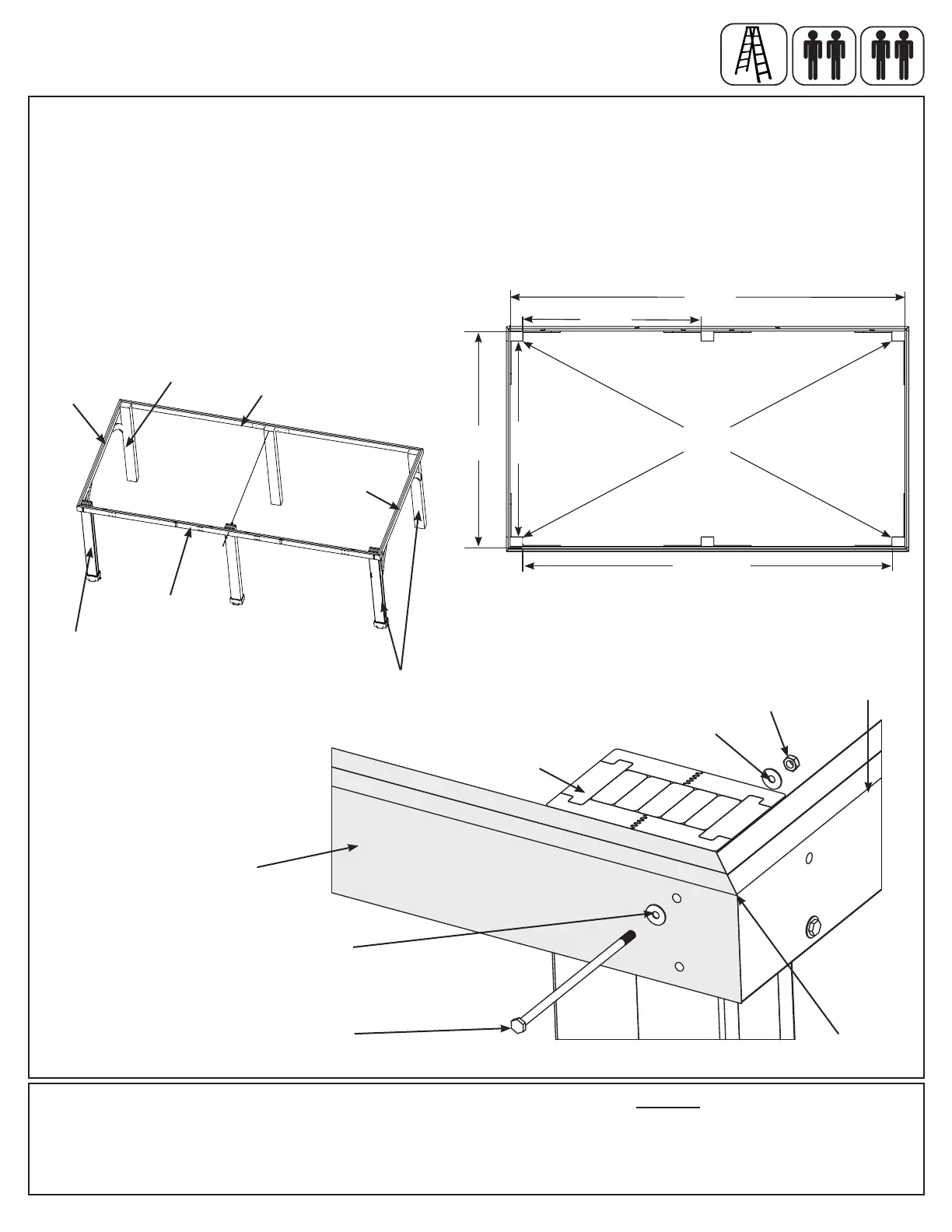

G: With helpers stand up Post Assemblies then place one Long Beam Assembly against the outside of two Main
Posts, ush to the tops and outside corners and tight to Short Beam Assembly. Attach Long Beam Assembly to
Main Post through the top hole with one 3/8 x 9-1/4” Hex Bolt (with two 3/8” large washers and one 3/8” lock nut)
per Post. Repeat for the second Long Beam Assembly on the opposite side. (F5.6, F5.7 and F5.8)
Long Beam
Assembly
Short Beam
Assembly
Main
Post
Main Post
Main Post
3/8” Large
Washer
3/8 x 9-1/4”
Hex Bolt
3/8” Lock
Nut
3/8” Large
Washer
Short Beam
Assembly
Long Beam
Assembly
Main Post
Flush and
tight
F5.8
F5.6
3005.913
118.34
3186.973
125.47
7059.745
277.94
3310.713
130.34
6602.545
259.94
7254.592
285.61
Post to Post
10’ 10-3/8”
9’ 10-3/8”
Post to Post
23’ 1-15/16”
21’ 7-15/16”
Inside Post to Inside Post
7.06 m
3.312 m
3.007 m
6.602 m
Inside Post to
Inside Post
Inside Post to Inside Post
23’ 9-5/8”
Post to Post
7.255 m
10’ 5-1/2”
3.187 m
