Yardistry YM12784 - Step 5: Frame Assembly and Anchoring - Part 4; Attaching Steel Cable with Bracket to Mid Posts

25 support@yardistrystructures.com
Hardware
F5.9
Long Beam
Assembly
Steel Cable
with Bracket
Mid
Post
Step 5: Frame Assembly and Anchoring
Part 4
x 3
2 x 3/8 x 9-1/4” Hex Bolt
(3/8” large washer x 2, 3/8” lock nut)

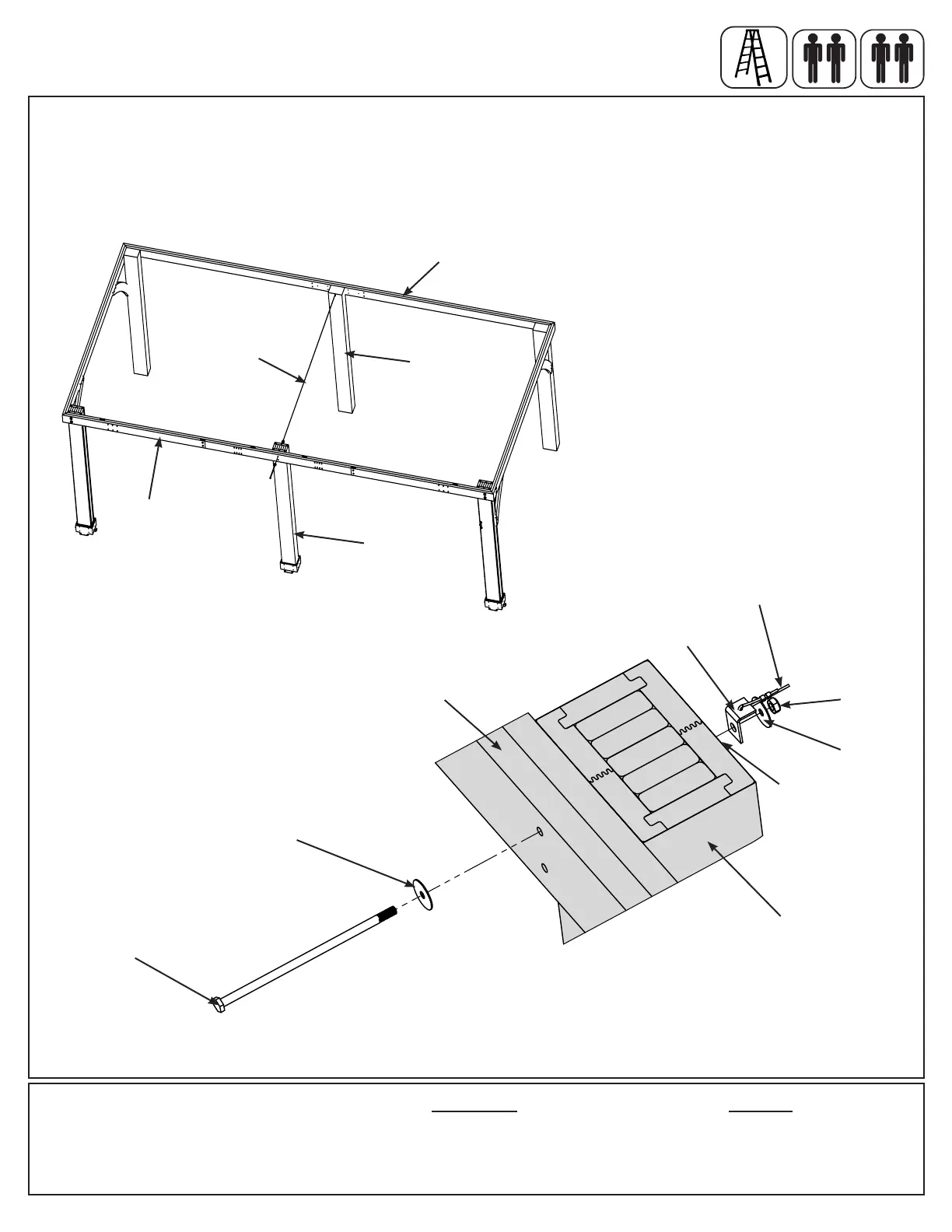

H: From inside the assembly, centre one Mid Post over middle bolt holes in each Long Beam Assembly then place
Steel Cable with Bracket against both Mid Posts so the angle of the bracket faces up and is over the top bolt hole.
Attach Long Beam Assembly to Mid Post and Steel Cable with Bracket through the top hole with one 3/8 x 9-1/4”
Hex Bolt (with two 3/8” large washers and one 3/8” lock nut). (F5.9 and F5.10)
Long Beam
Assembly
Mid
Post
F5.10
Long Beam
Assembly
Steel Cable
with Bracket
Mid Post
3/8” Large
Washer
3/8 x 9-1/4”
Hex Bolt
3/8”
Lock
Nut
3/8” Large
Washer
Angle
faces up
Centre over
bolt hole
Components
1 x Steel Cable with Bracket
