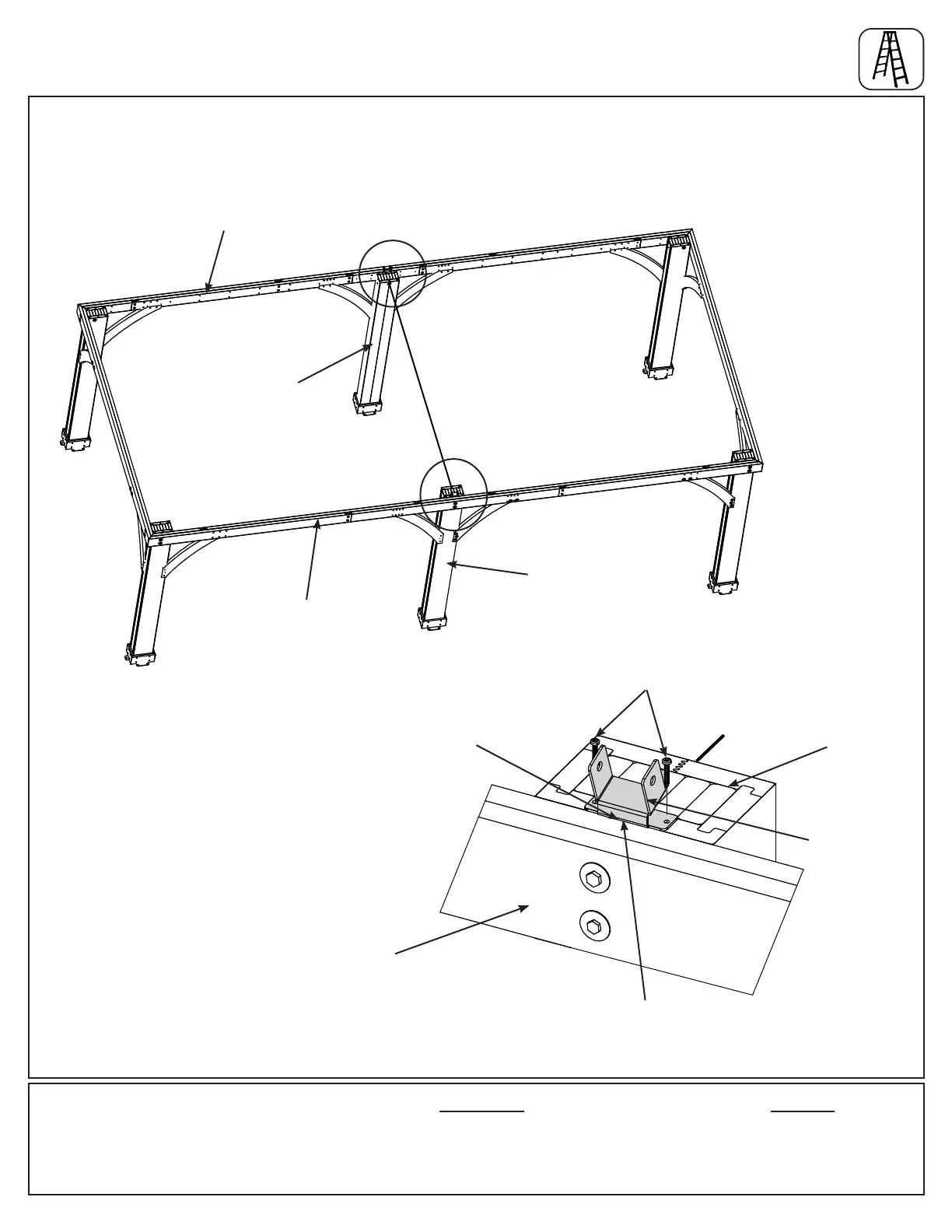

A: On each Mid Post place one Large Centre Roof Bracket, centred to each Long Beam Assembly so they are
ush and tight to the inside face of each beam then attach to Mid Posts with two #12 x 1-1/2” Pan Screws per
bracket. (F6.1 and F6.2)
Step 6: Attach Brackets
F6.1
Flush and
tight to
inside face
Hardware
4 x #12 x 1-1/2” Pan Screw
F6.2
Large Centre
Roof Bracket
#12 x 1-1/2”
Pan Screw
Long Beam
Assembly
Mid
Post
Long Beam
Assembly
Long Beam
Assembly
Mid Post
Mid Post
Place at centre
of Long Beam
Assembly, not
centre of Mid
Post
Components
2 x Large Centre Roof Bracket
