Yardistry YM12784 - Step 7: Fascia Beam Assembly - Small Roof Rafter; Connecting Fascia Beam Sections

29 support@yardistrystructures.com

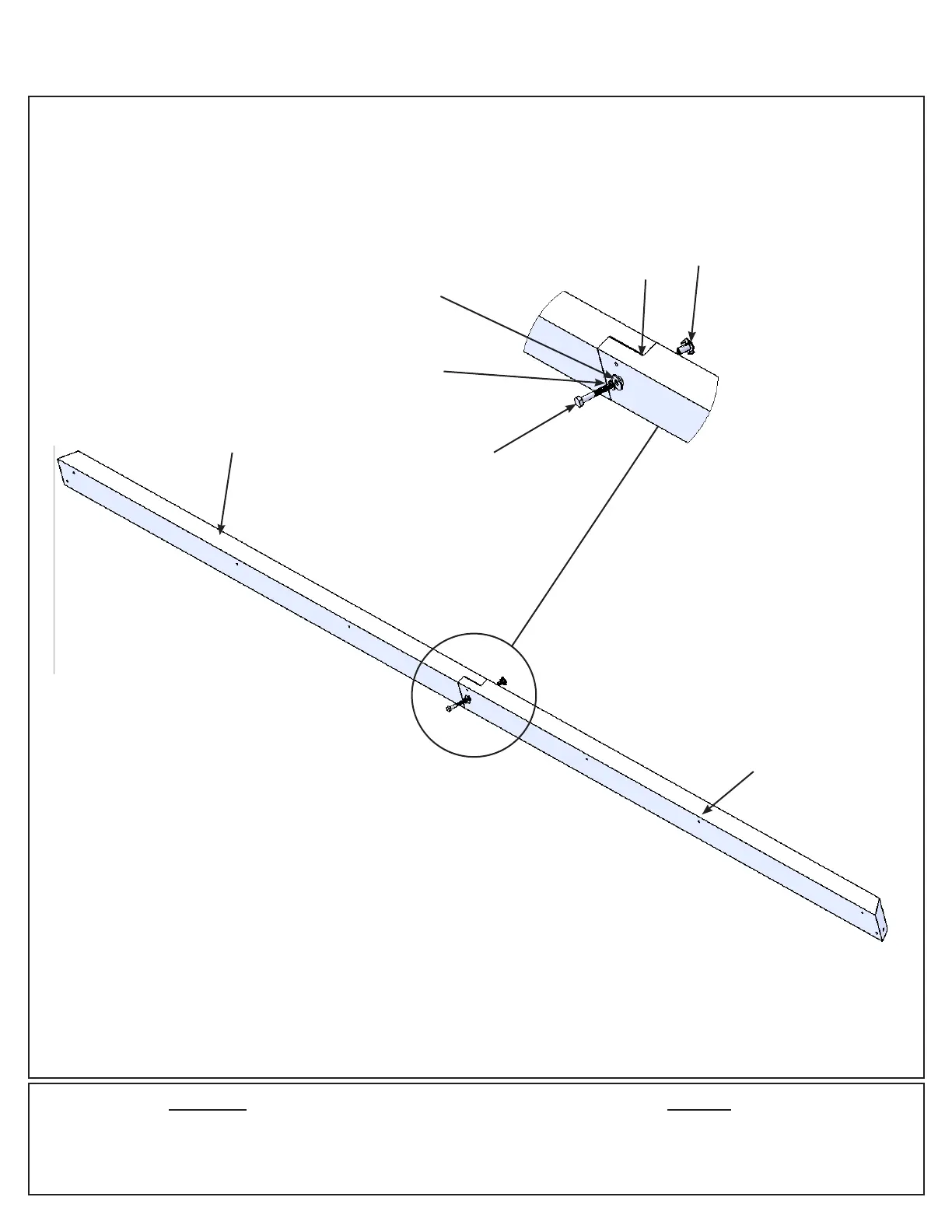

A: Tightly connect one (627) Fascia Left Short and one (628) Fascia Right Short using one 5/16 x 1-1/2” Hex
Bolt (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F7.1 and F7.2. Repeat to make
a second Fascia Beam Assembly.
Step 7: Fascia Beam Assembly - Small Roof Rafter
F7.1
F7.2
HardwareWood Parts
2 x (627) Fascia Left Short
2 x (628) Fascia Right Short
2 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
(628) Fascia
Right Short
(627) Fascia
Left Short
5/16”
T-nut
5/16 x 1-1/2”
Hex Bolt
Tight
5/16” Lock
Washer
1/4-5/16”
Large Washer
