Yardistry YM12784 - Step 8: Small Roof Assembly - Part 1; Assembling Corner Rafters and Fascia Beam

30 support@yardistrystructures.com
A: On each side of one (634) Rafter place one (624) Rafter Corner Left and one (623) Rafter Corner Right so
the tops and edges are ush then attach with two #8 x 2-1/4” Wood Screws per side. (F8.1 and F8.2)
B: Place Fascia Beam Assembly from Step 7 on the bottom of (624) Rafter Corner Left, (623) Rafter Corner
Right and (634) Rafter so the sides are ush then attach with one #8 x 2-1/2” Wood Screw at each end and one
in the middle. (F8.1, F8.3, F8.4 and F8.5)
C: Repeat Steps A and B to make a second Small Roof Assembly.
Hardware
Wood Parts
#8 x 2-1/2”
Wood Screws
(634)
Rafter
Fascia Beam
Assembly

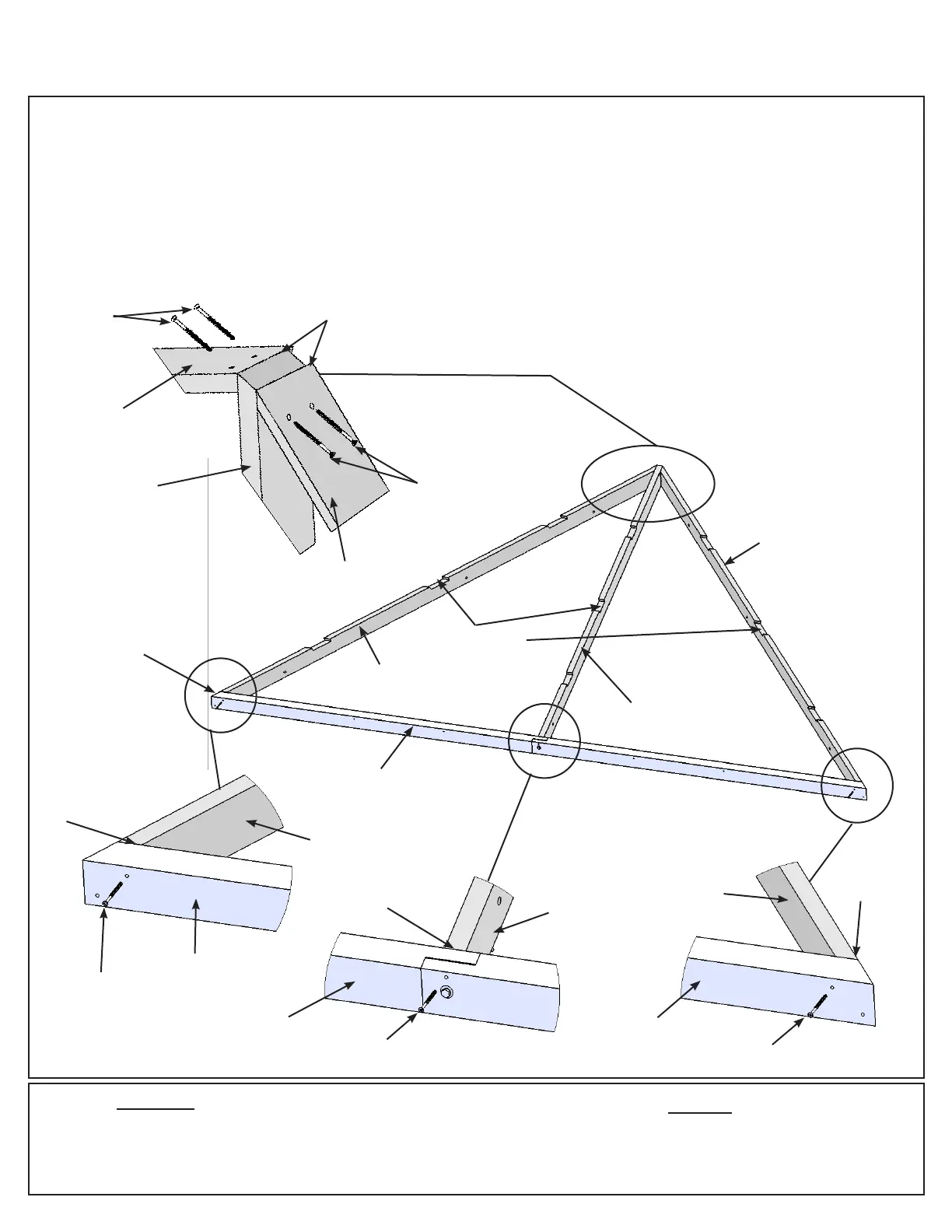

Step 8: Small Roof Assembly
Part 1
F8.1
8 x #8 x 2-1/4” Wood Screw
6 x #8 x 2-1/2” Wood Screw
2 x (634) Rafter
2 x (623) Rafter Corner Right
2 x (624) Rafter Corner Left
F8.3
F8.4
Note notches
facing up
Flush
Fascia Beam
Assembly
Fascia Beam
Assembly
Flush
(634)
Rafter
#8 x 2-1/2”
Wood Screws
#8 x 2-1/4”
Wood Screws
Flush
F8.2
(624) Rafter
Corner Left
(624) Rafter
Corner Left
(623) Rafter
Corner Right
(623) Rafter
Corner Right
Note angle
side up
(634)
Rafter
(623) Rafter
Corner Right
#8 x 2-1/4”
Wood
Screws
F8.5
Fascia Beam
Assembly
(624) Rafter
Corner Left
Flush
#8 x 2-1/2”
Wood Screws
