Yardistry YM12784 - Step 18: Large Roof Assembly - Part 3; Attaching Centre Straps to Large Roof Sections

51 support@yardistrystructures.com
Step 18: Large Roof Assembly
Part 3
12 x (1193) Centre Strap

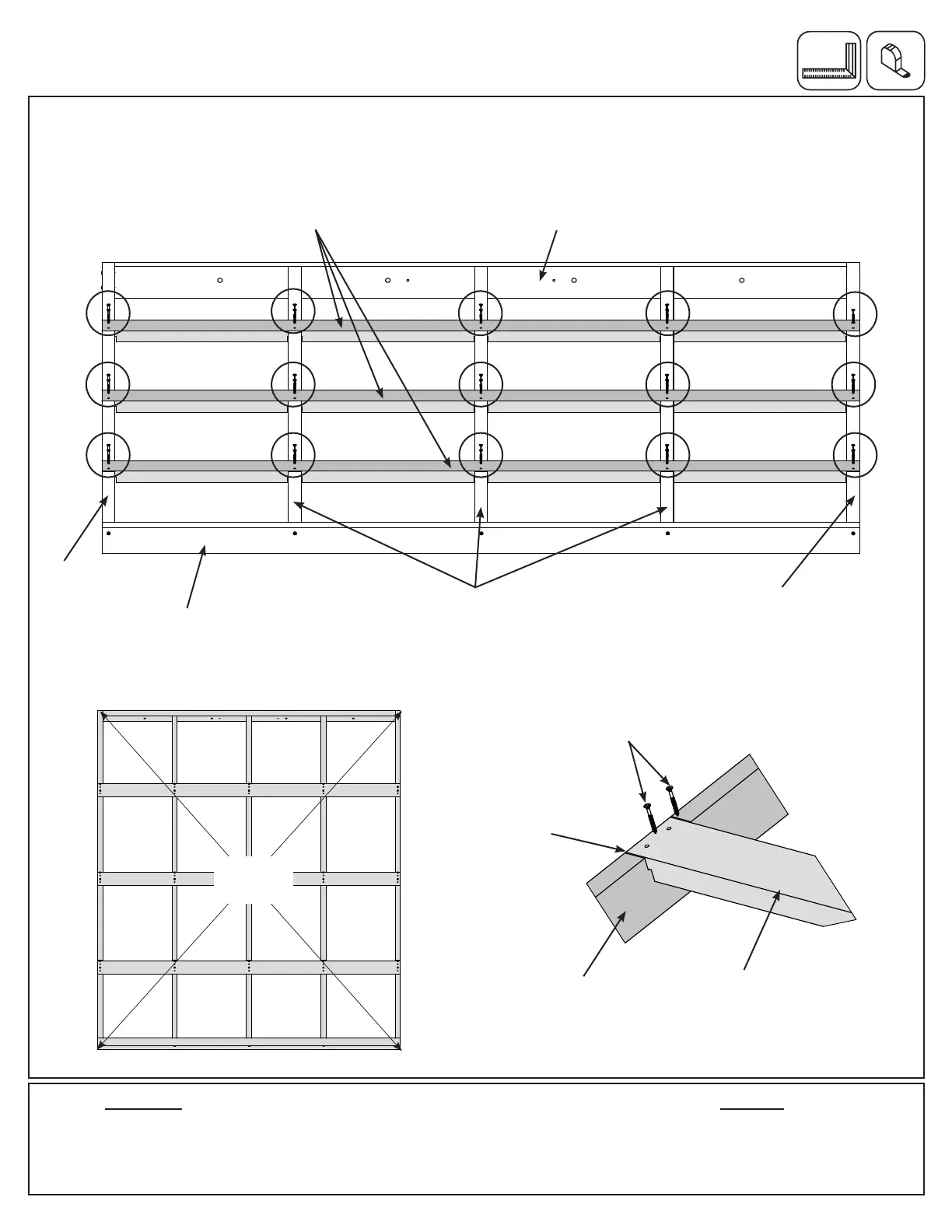

E: Place three (1193) Centre Straps in the notches of each (675) Middle Rafter and each (633) Centre Rafter so
the ends are ush to the outside edges of (675) Middle Rafters. Make sure assembly is square then attach with 10
#8 x 1-1/2” Wood Screws per strap. Repeat for each Large Roof Assembly. (F18.8, F18.9 and F18.10)
HardwareWood Parts
120 x #8 x 1-1/2” Wood Screw
#8 x 1-1/2” Wood
Screws x 10 per strap
F18.9
F18.10
(633) Centre
Rafter
(1192) Mid
Fascia
(675)
Middle
Rafter
(1194) Rafter Top
(675)
Middle
Rafter
Flush
(675)
Middle
Rafter
(1193) Centre Strap
8’ 9-1/4”
2.673 m
Top
Bottom
Front View
F18.8
(1193) Centre Strap
