Step 19: Attach Roof to Beam Brackets
- Large Roof Assemblies
Back View

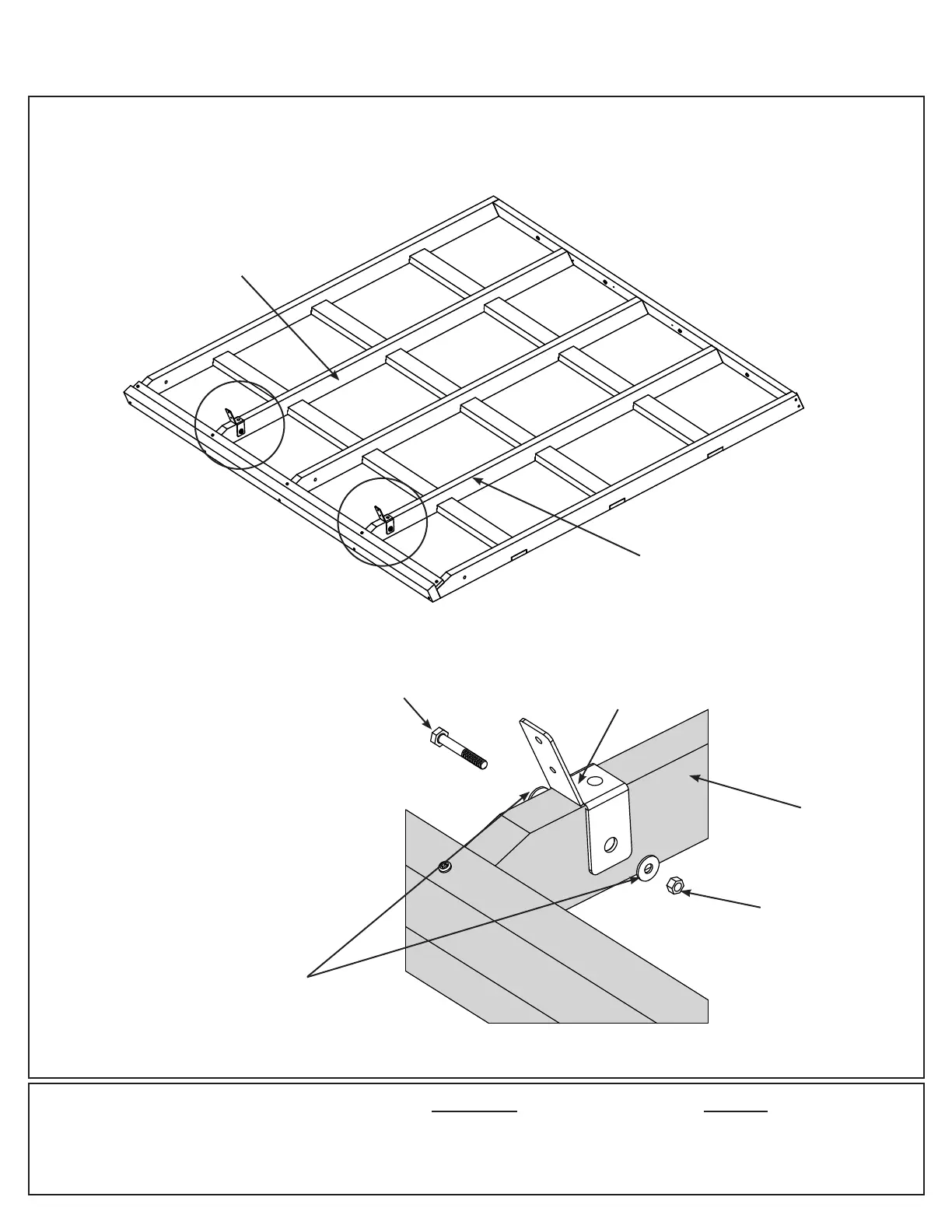

A: On the back of each Large Roof Assembly, through the bolt hole at the bottom of the board, loosely attach one
Roof to Beam Bracket to the two outside (633) Centre Rafters with one 1/4 x 2” Hex Bolt (with two 1/4-5/16” large
washers and one1/4” lock nut) per bracket. (F19.1 and F19.2)
Back View
8 x 1/4 x 2” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
1/4” Lock
Nut
1/4-5/16”
Large Washer
1/4 x 2”
Hex Bolt
F19.2
Roof to Beam
Bracket
(633) Centre
Rafter
(633) Centre
Rafter
(633) Centre
Rafter
Top
Bottom
Components
8 x Roof to Beam Bracket
