Step 20: Attach Roof Panels - Large Roof Assemblies
Part 2
B: Attach panels to (675) Middle Rafter, (1194) Rafter Top and each (1193) Centre Strap in the remaining holes with
32 #8 x 1” Roong Screws as shown in F20.5. Do not install screws along the bottom row.
C: Repeat Steps A and B for each Large Roof Assembly.
128 x #8 x 1” Roong Screw
DO NOT overtighten
screws, could cause
damage to roong
material

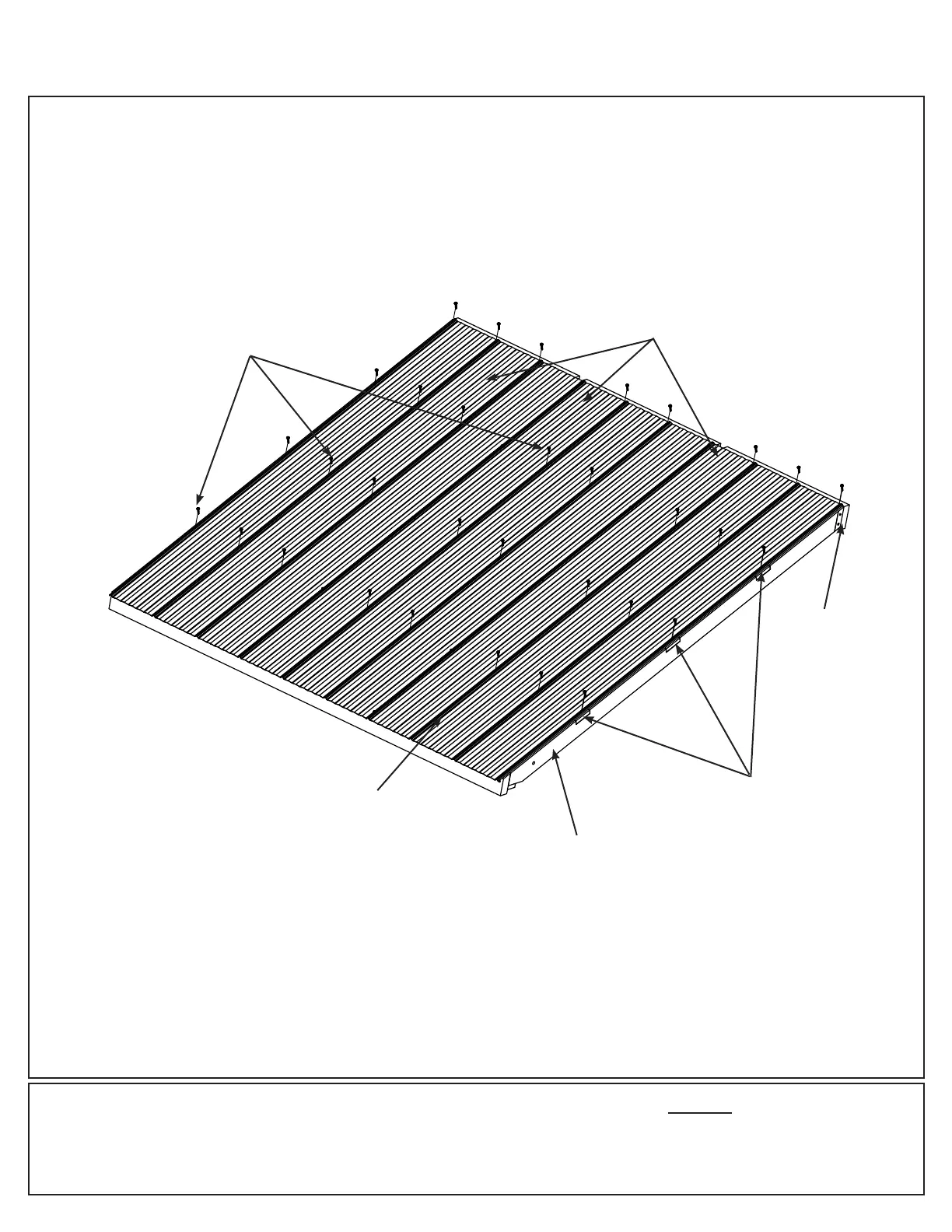

F20.5
No screws along
bottom row
#8 x 1” Roong
Screws x 32
Bottom
Top
Middle Panel
(1194) Rafter
Top
(675) Middle
Rafter
(1193) Centre Strap
