Yardistry YM12784 - Step 22: Attach Ridge Clips - Large Roof Assemblies; Installing Ridge Clips on Large Roof Assemblies

57 support@yardistrystructures.com
8x #7 x 18 mm Wood Screw
2 x Roof Edge Left 72.2 2 x Roof Edge Right 72.2
Step 22: Attach Ridge Clips - Large Roof Assemblies
Hardware
F22.1
32 x #7 x 3/4” Wood Screw

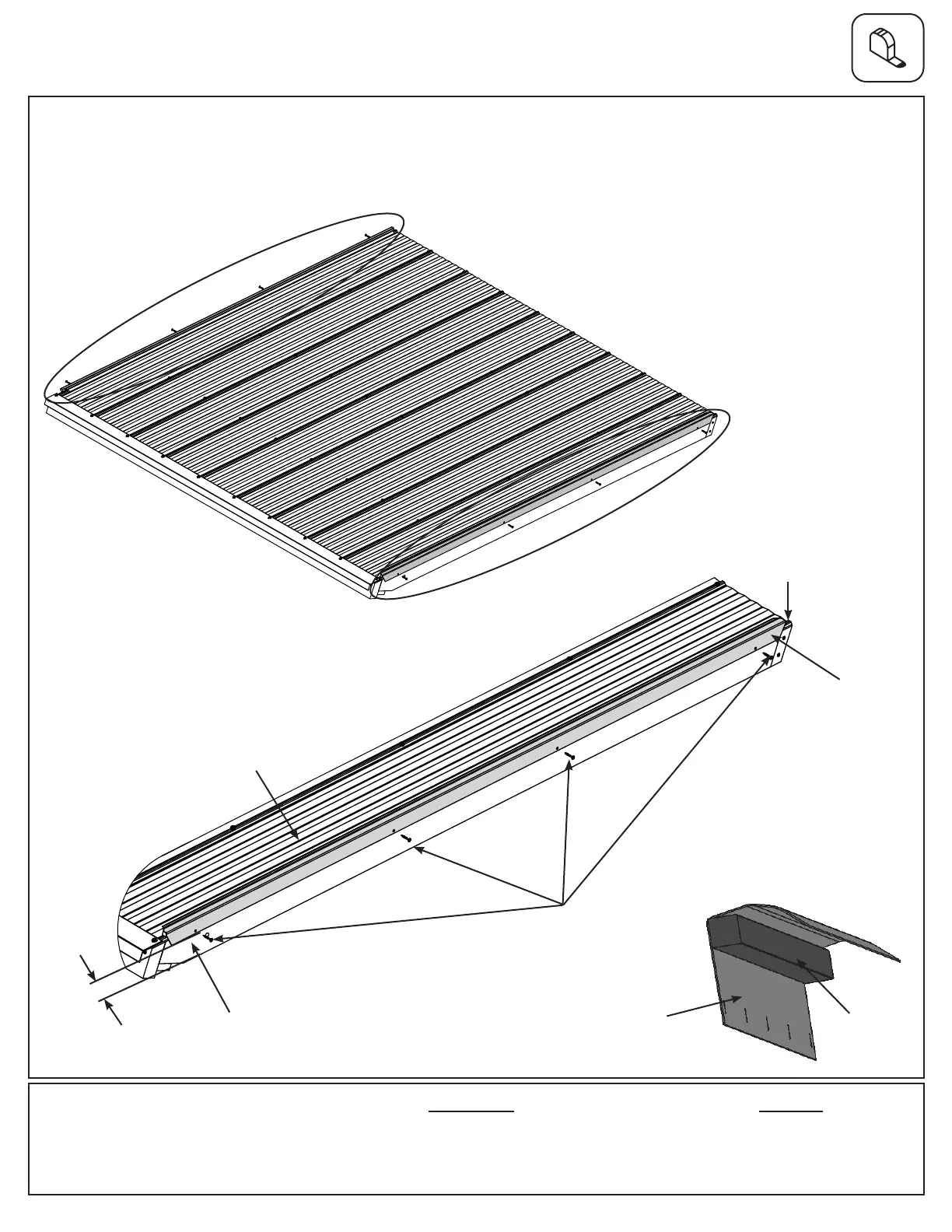

A: Place one Weather Seal 75-1/2 on the inside of eight Ridge Clip 73.5 then place one Ridge Clip 73.5 on each
(675) Middle Rafter on each Large Roof Assembly so they cover the panels and are ush to the tops. The bottom
edge of each Ridge Clip 73.5 should be 2-1/4” (5.72 cm) up from the bottom edge of (675) Middle Rafter. Attach
with four #7 x 3/4” Wood Screws per Ridge Clip 73.5. (F22.1, F22.2 and F22.3)
Weather
Seal 75-1/2
#7 x 3/4” Wood
Screws
Panels
Components
8 x Ridge Clip 73.5
8 x Weather Seal 75-1/2
F22.2
Underneath,
Side View
Ridge
Clip 73.5
Top
F22.3
(675) Middle
Rafter
Flush
Top
2-1/4”
5.72 cm
Ridge
Clip 73.5
