Yardistry YM12784 - Step 23: Attach Large Roof Assemblies to Frame - Part 2; Connecting Roof Assemblies and Brackets

59 support@yardistrystructures.com

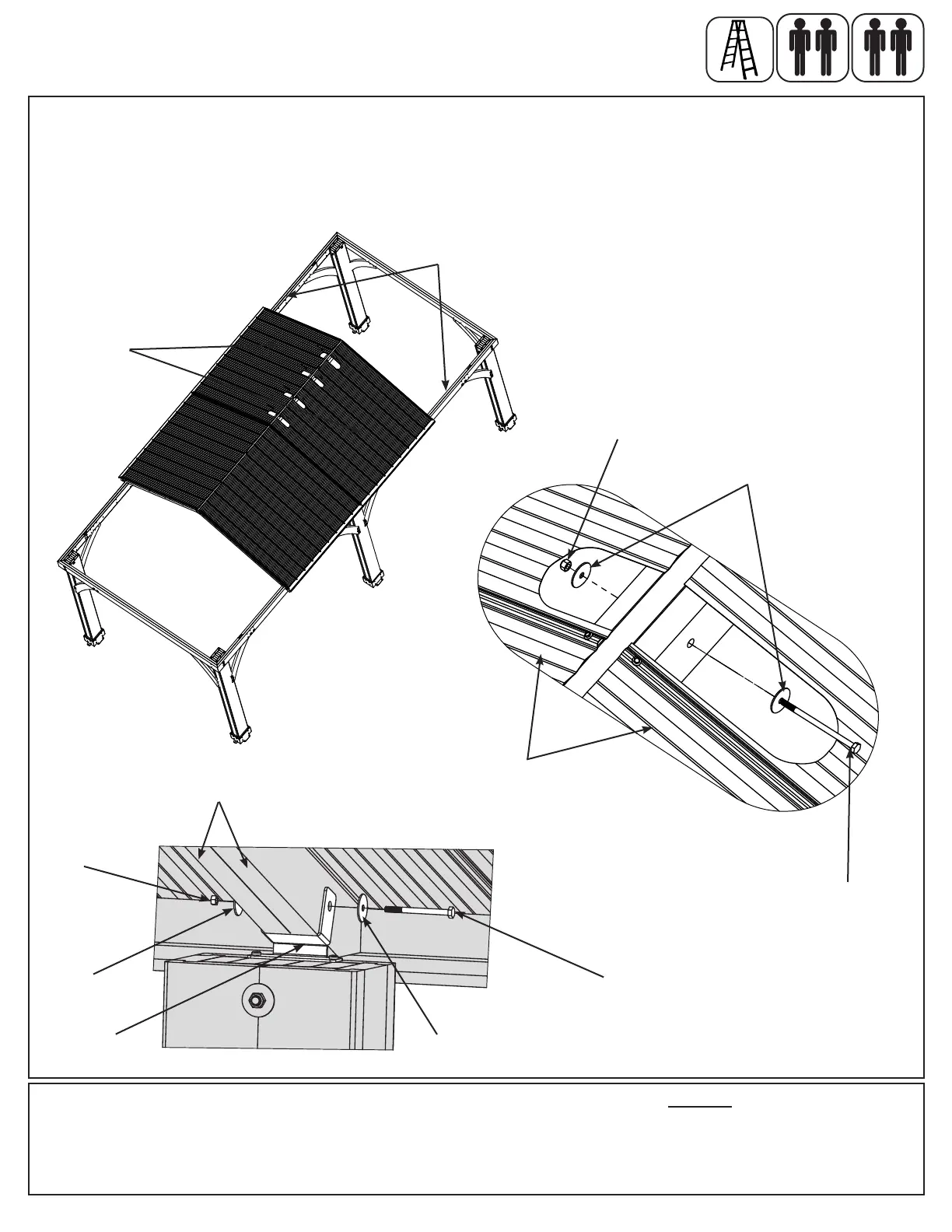

D: Repeat Steps A - C for the remaining two Large Roof Assemblies. (F23.5 and F23.6)
E: Attach Large Centre Roof Brackets and (675) Middle Roof Rafters together with one 1/4 x 3-1/2” Hex Bolt (with
two 1/4-5/16” large washers and one1/4” lock nut) per bracket. (F23.7)
Step 23: Attach Large Roof Assemblies to Frame
Part 2
x 3
4 x 1/4 x 4-1/4” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
2 x 1/4 x 3-1/2” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
Hardware
F23.5
Large Roof
Assembly
1/4 x 4-1/4”
Hex Bolt
1/4-5/16”
Large Washer
1/4” Lock Nut
Long Beam
Assembly
F23.6
One assembler to
support roof panel(s) at
all times until secure
Parts removed
for clarity
Large Roof
Assembly
(675) Middle
Rafter
1/4 x 3-1/2”
Hex Bolt
1/4-5/16”
Large Washer
1/4”
Lock
Nut
1/4-5/16”
Large Washer
Large Centre
Roof Bracket
F23.7
