Yardistry YM12784 - Step 23: Attach Large Roof Assemblies to Frame - Part 3; Securing Middle Rafters Between Roof Assemblies

60 support@yardistrystructures.com
x 4

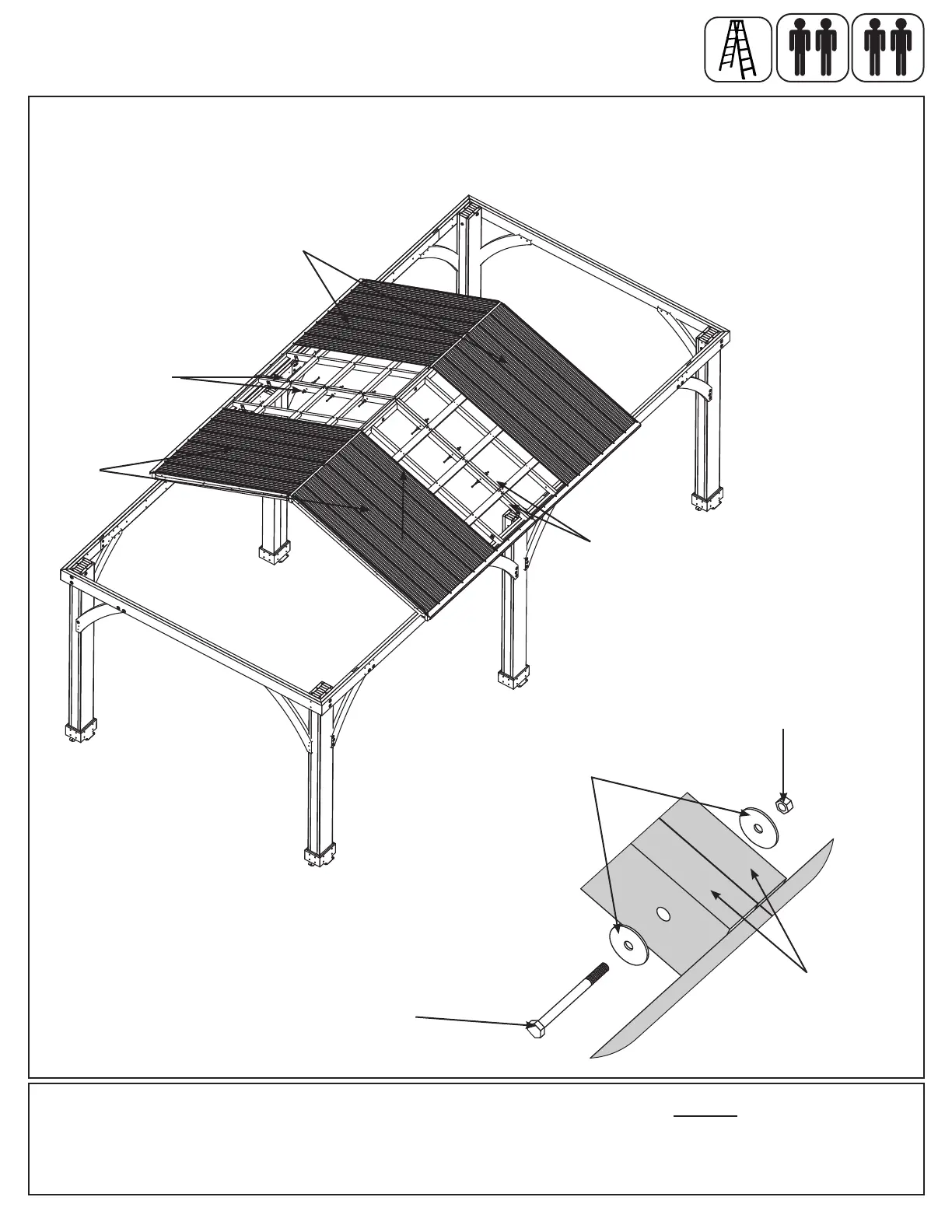

F: Attach (675) Middle Rafters from each connecting Large Roof Assembly with three 1/4 x 3” Hex Bolts (with two
1/4-5/16” large washers and one 1/4” lock nut) per connection. (F23.8 and F23.9)
Step 23: Attach Large Roof Assemblies to Frame
Part 3
Large Roof Assembly
Hardware
1/4-5/16”
Large Washer
1/4 x 3”
Hex Bolt
6 x 1/4 x 3” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
1/4” Lock
Nut
F23.8
F23.9
Parts removed
for clarity
(675) Middle
Rafter
(675) Middle
Rafter
Large Roof
Assembly
(675) Middle
Rafter
