Yardistry YM12784 - Step 25: Attach Corner Roof Assemblies to Frame - Part 2; Securing Corner Roof Assemblies to Frame

65 support@yardistrystructures.com

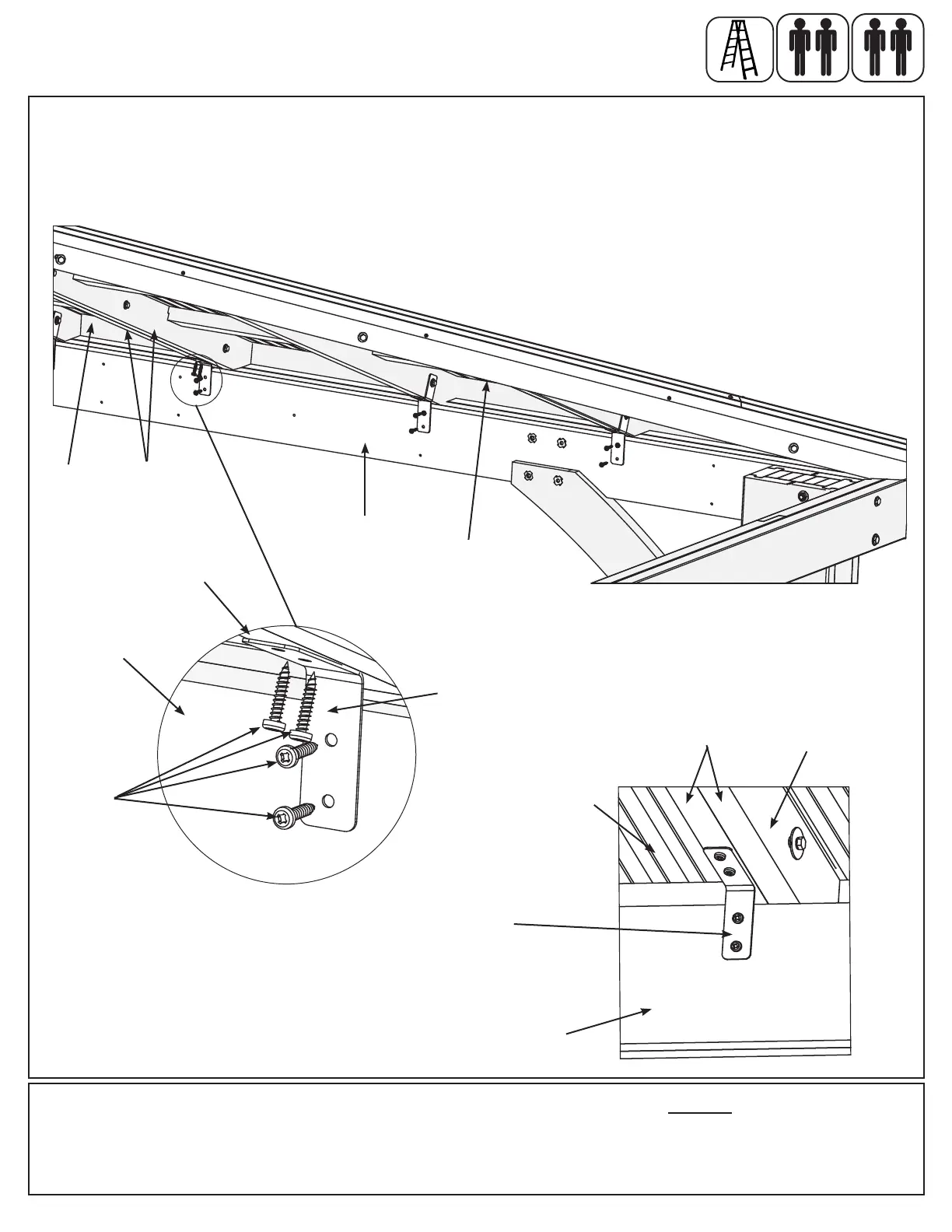

C: On each connecting (675) Middle Rafter on the Large Roof Assembly attach one Beam to Rafter Bracket per
rafter using four #12 x 1-1/2” Pan Screws per bracket. (F25.4, F25.5 and F25.6)
D: Tighten all Bracket bolts in the Corner Roof Assemblies.
Step 25: Attach Corner Roof Assemblies to Frame
Part 2
F25.4
Long Beam
Assembly
Large Roof
Assembly
x 3
Corner Roof
Assembly
Long Beam
Assembly
Beam to
Rafter
Bracket
Hardware
16 x #12 x 1-1/2” Pan Screw
4 x Beam to Rafter Bracket
(675) Middle
Rafter
(675) Middle
Rafter
(675) Middle
Rafter
Long Beam
Assembly
Large Roof
Assembly
Corner Roof
Assembly
Beam to
Rafter Bracket
F25.5
F25.6
#12 x 1-1/2”
Pan Screw
