Yardistry YM12784 - Step 29: Attach Roof to Beam Brackets - Small Roof Assembly; Attaching Roof to Beam Brackets on Small Roofs

69 support@yardistrystructures.com
Push roof in so that soffit is tight
to beam from outside, while
fastening.#10 x 1-1/4" Pan Screw
#8 x 1-1/2" Wood Screw#8 x 1-3/4"
Wood Screw1/4 x 2" hex bolt Roof to
Beam Bracket Y004XX-108
Hardware
Roof to Beam
Bracket
F29.1
F29.2

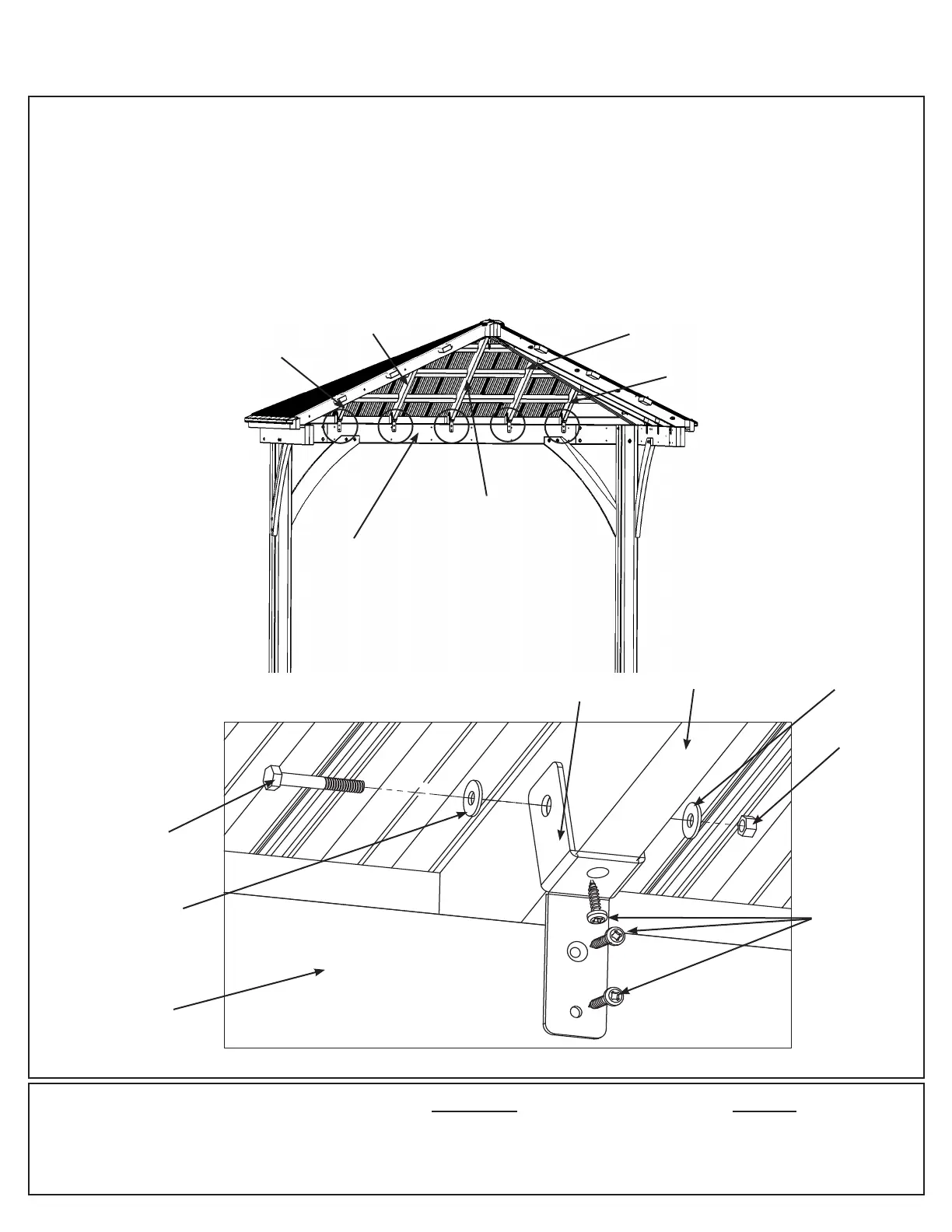

A: On each Small Roof Assembly, through the bolt hole at the bottom of the board, loosely attach one Roof to
Beam Bracket to each rafter with one 1/4 x 2” Hex Bolt (with two 1/4-5/16” large washers and one1/4” lock nut) per
bracket. (F29.1 and F29.2)
B: Push panels up from the outside and inside top to make sure each (648) So󰀩t is against the Short Beam
Assemblies then fasten each Roof to Beam Bracket with three #12 x 1-1/2” Pan Screws per bracket. Install top
screw into the rafter rst then install the other two into the beam. Slight gaps are normal. (F29.1 and F29.2)
C: Tighten all Roof to Beam Bracket bolts in both Small Roof Assemblies.
Step 29: Attach Roof to Beam Brackets -
Small Roof Assembly
(629) Rafter
Short RT
(630) Rafter
Short LT
Short Beam
Assembly
10 x 1/4 x 2” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
30 x #12 x 1-1/2” Pan Screw
1/4”
Lock
Nut
1/4-5/16”
Large Washer
1/4 x 2”
Hex Bolt
Inside View
Inside View
Rafter
(634)
Rafter
(632) Rafter
Centre RT
(631) Rafter
Centre LT
#12 x 1-1/2”
Pan Screw
Short Beam
Assembly
1/4-5/16”
Large Washer
Parts removed
for clarity
Components
10 x Roof to Beam Bracket
