Step 30: Attach Ridge Caps to Roof Panels
Part 1

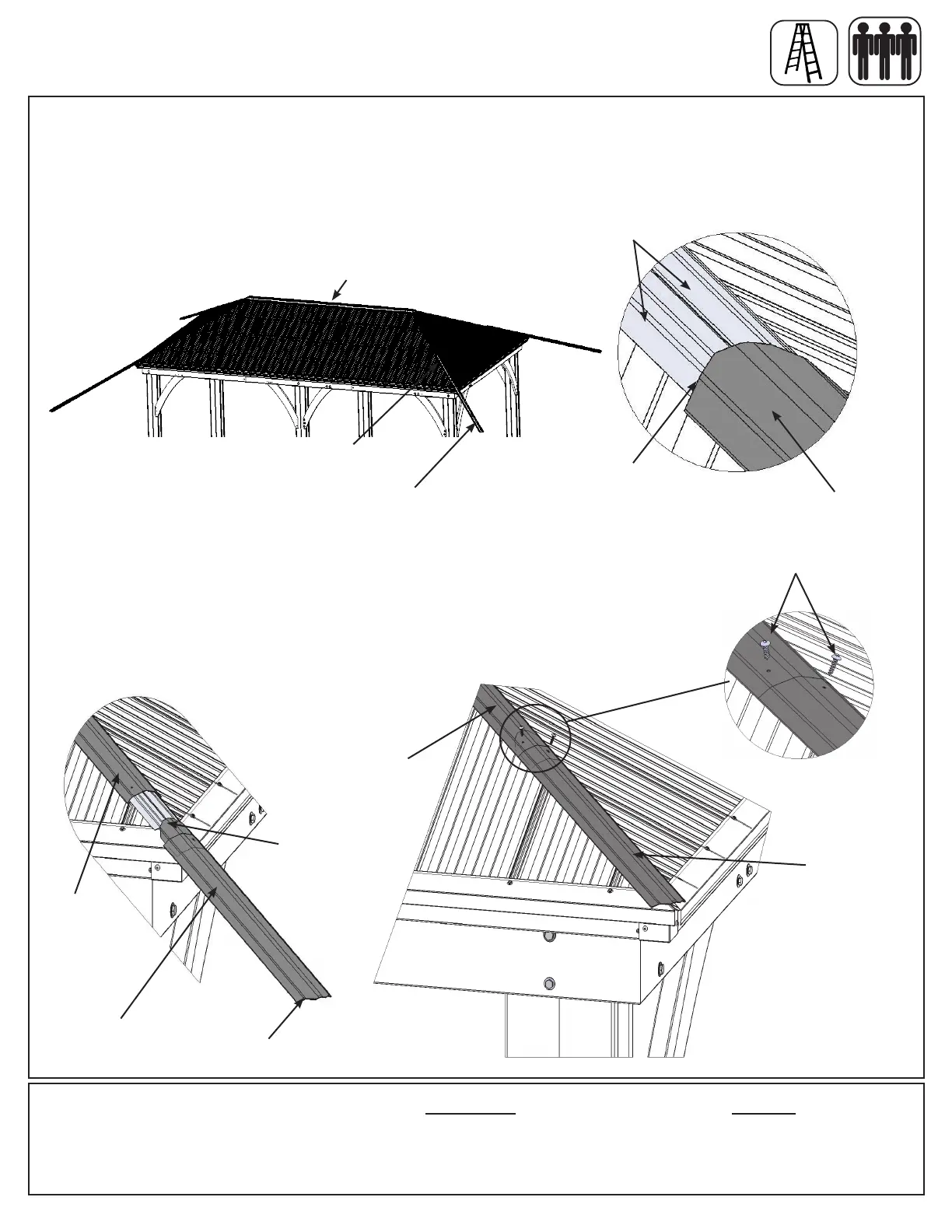

A: At each corner, slide one Ridge Cap Long 81.5 over the Ridge Clips, from the bottom up with cut end leading.
(F30.1 and F30.2)
B: Slide Ridge Cap Short 25.2 over the Ridge Clips leading with the insert end to push the Ridge Cap Long 81.5
to the top, lifting Peak Cap Assembly so Ridge Cap Long 81.5s t under. Attach with two #8 x 3/4” Sheet Metal
Screws per Ridge Cap set. (F30.1, F30.3, F30.4 and F30.5)
Hardware
8 x #8 x 3/4” Sheet Metal Screw
Components:
4 x Ridge Cap Long 81.5
4 x Ridge Cap Short 25.2
Ridge Cap
Short 25.2
Ridge Clip
102.5
#8 x 3/4” Sheet Metal Screw
F30.1
F30.3
F30.4
x 3
Cut End
Note: To help Ridge Caps
slide on easier use a
lubricant such as liquid soap.
F30.2
Ridge Cap
Long 81.5
Insert End
F30.5
Folded
End
Ridge Cap
Short 25.2
Ridge Cap
Long 81.5
Ridge Cap
Short 25.2
Ridge Cap
Long 81.5
Ridge Cap
Long 81.5
Peak Cap
Assembly
