Yardistry YM12784 - Step 30: Attach Ridge Caps to Roof Panels - Part 2; Attaching Roof Edges and Centre Ridge Caps

71 support@yardistrystructures.com
Roof Edge Centre - Y010XXX-127
x4
Roof Edge Centre - Y010XXX-127
x4
Roof Edge Centre - Y010XXX-127
x4
Step 30: Attach Ridge Caps to Roof Panels
Part 2
C: Remove the #8 x 1” Roong Screws from each Roof Edge Left, Roof Edge Middle and Roof Edge Right
where each Corner Roof Assemby and each Large Roof Assembly connect. Two screws per location. (F30.6
and F30.7)
D: Place one Roof Edge Centre over each connecting seam, tight to Roof Edges and attach with previously
removed screws. (F30.6 and F30.8)
Components
6 x Roof Edge Centre
Ridge Clip
73.5

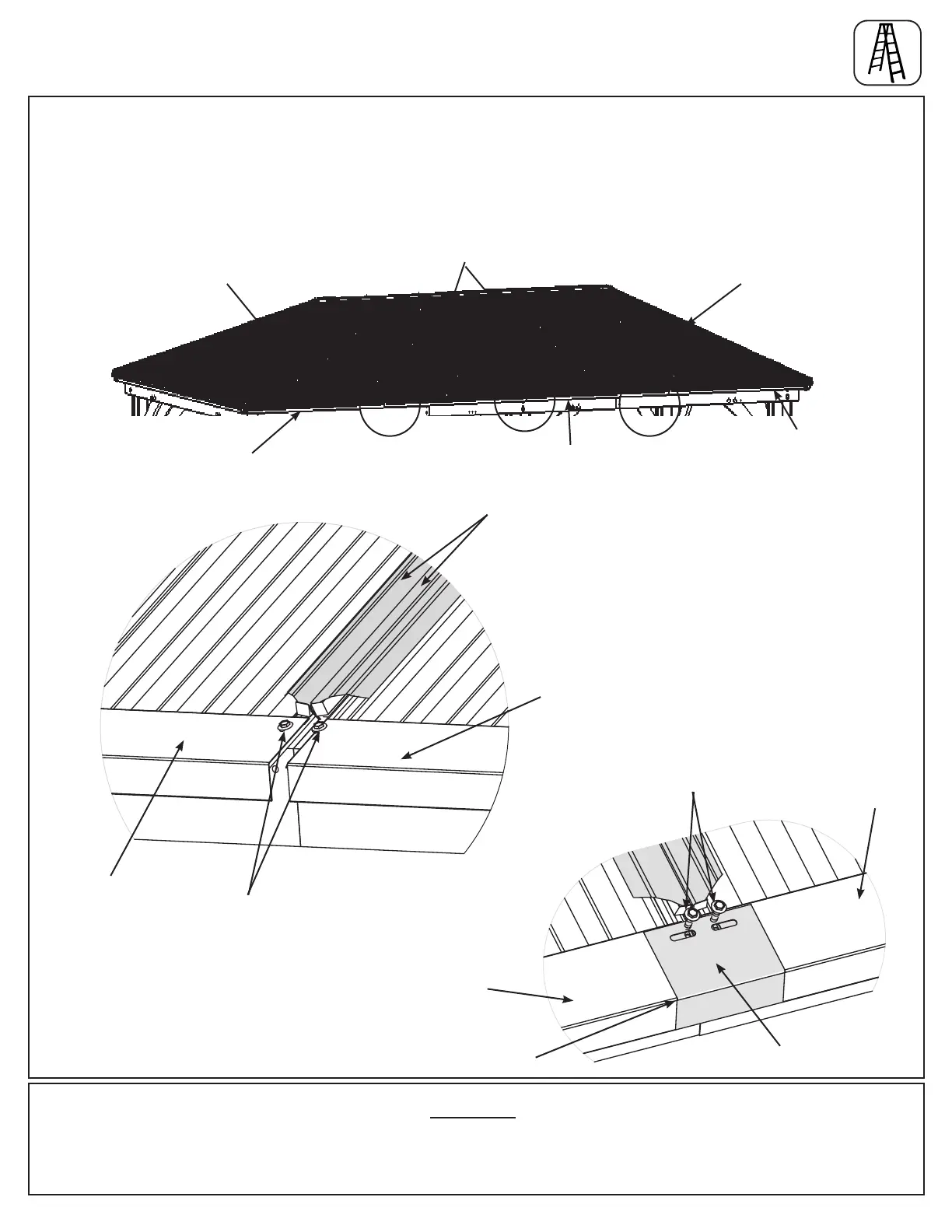

F30.6
F30.7
F30.8
Roof Edge
Left
Large Roof Assembly
Roof Edge
Centre
Remove these screws.
Roof Edge
Middle
Roof Edge
Right
Roof Edge
Left
Roof Edge
Middle
Reattach screws here.
Tight
Roof
Edge
Left
Roof Edge
Middle
Corner Roof
Assembly
Corner Roof
Assembly
