Step 33: Centre Beam Assembly
Part 2

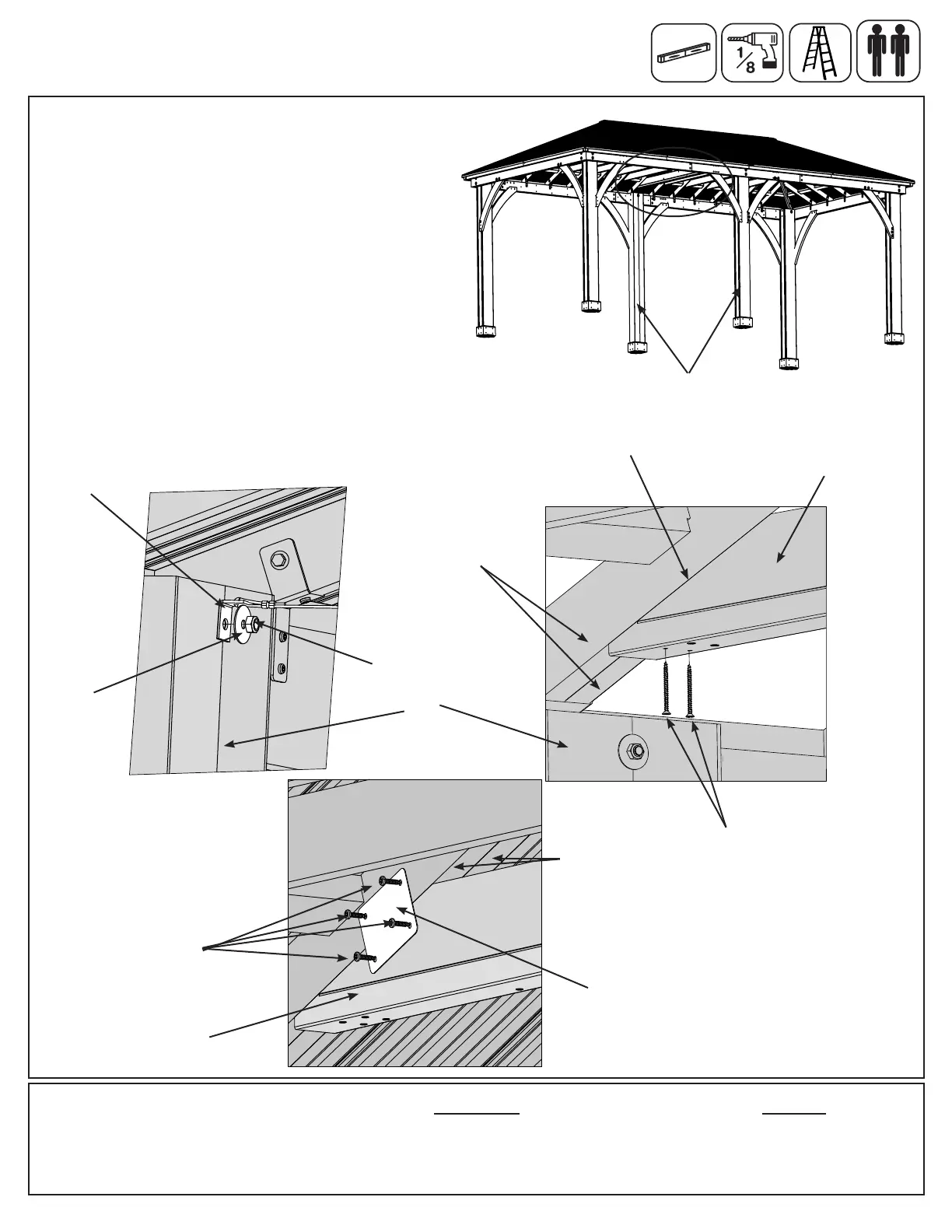

C: Remove the bolt, washers and lock nut on
the Mid Post which attaches the Steel Cable with
Brackets. Remove the Steel Cable with Brackets
then reinstall the bolt, washers and lock nut. (F33.4,
F33.5)
D: Place Centre Beam Assembly against (675)
Middle Rafters above Mid Posts. Make sure Centre
Beam Assembly is level then attach using two #8 x 3”
Wood Screws per end. (F33.4 and F33.6)
E: Attach Centre Beam Assembly to (675) Middle
Rafters with four Large Flat Brackets (2 per end)
using four #10 x 1-1/4” Pan Screws per bracket.
(F33.7)
Components
4 x Large Flat Bracket
Hardware
Steel Cable
with Bracket
Mid
Post
(675) Middle
Rafter
F33.4
F33.5
3/8” Large
Washer
3/8”
Lock
Nut
16 x #10 x 1-1/4” Pan Screw
4 x #8 x 3” Wood Screw
#8 x 3”
Wood
Screw
Centre Beam
Assembly
Mid
Post
Flush and
tight
(675) Middle
Rafter
Centre Beam
Assembly
#10 x 1-1/4’
Pan Screw
Large Flat Bracket
(2 per end, 1
on each side of
Centre Beam
Assembly)
F33.6
F33.7
x 2
