Step 33: Centre Beam Assembly
Part 3
F: At the centre of the Centre Beam Assembly
place (1205) Centre Upright. Attach Centre Beam
Assembly to (1205) Centre Upright with 2 Large Flat
Brackets using four #10 x 1-1/4” Pan Screws per
bracket and (1205) Centre Upright to (1194) Rafter
Tops with 2 Large Corner Brackets using four #10
x 1-1/4” Pan Screws per bracket. Brackets are
installed on both sides of (1205) Centre Upright.
(F33.8 and F33.9)
G: Tight to each Mid Post attach one (1206) Centre
Gusset to each end of the Centre Beam Assembly
and to Mid Posts using four #8 x 3” Wood Screws
per gusset. (F33.8 and F33.10)
Components
2 x Large Flat Bracket
2 x Large Corner Bracket
Hardware
16 x #10 x 1-1/4” Pan Screw
8 x #8 x 3” Wood Screw
Wood Parts
1 x (1205) Centre Upright
2 x (1206) Centre Gusset

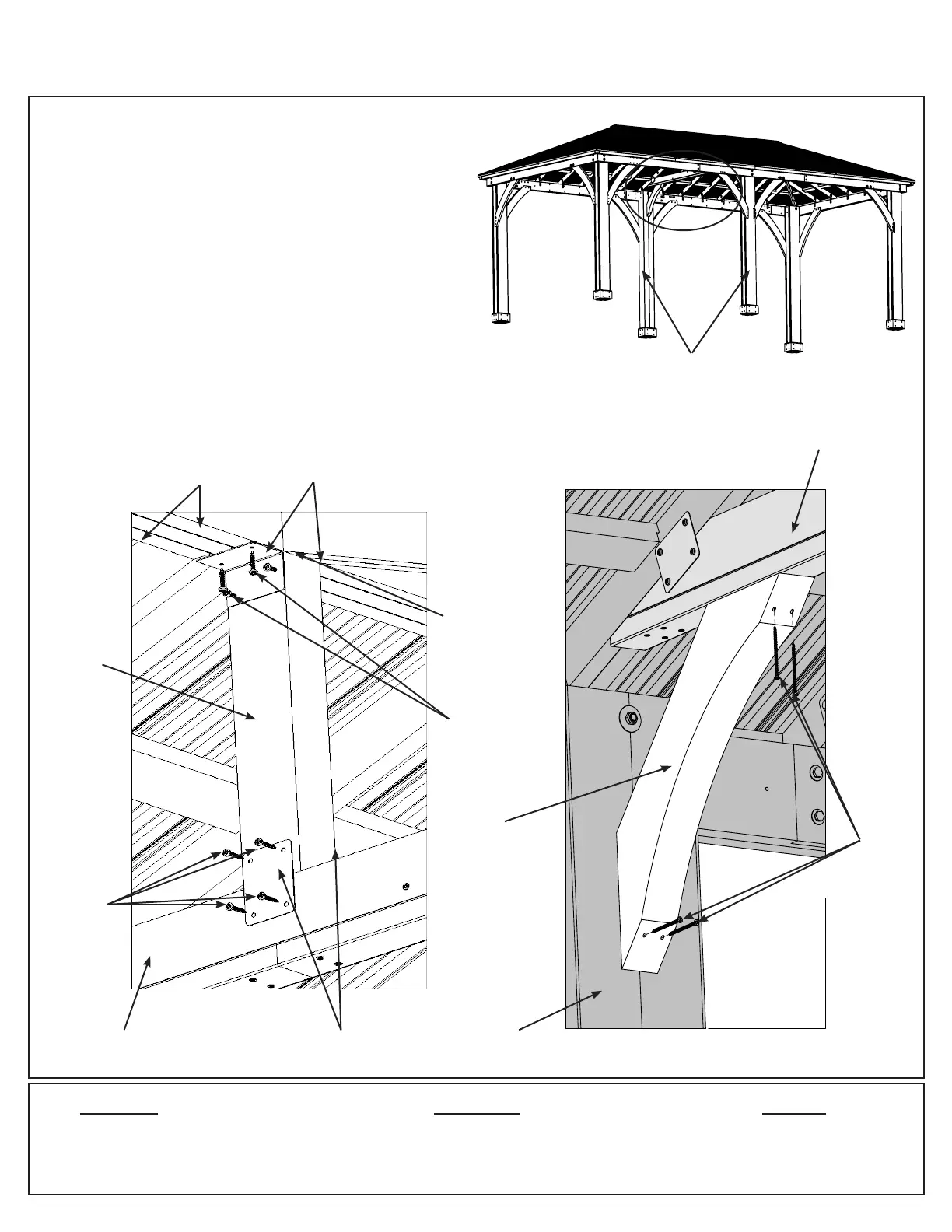

F33.8
Mid
Post
#10 x 1-1/4’
Pan Screw x 4
per bracket
#10 x 1-1/4’
Pan Screw
Mid
Post
(1194)
Rafter Top
Centre Beam
Assembly
Large Flat
Bracket
Large Corner
Bracket
F33.9
F33.10
#8 x 3”
Wood
Screw
(1206)
Centre
Gusset
(1205)
Centre
Upright
Centre Beam
Assembly
Note: There
may be a
small space
