Yardistry YM12784 - Step 34: Attach Twist Brackets; Installing 45° Twist Brackets

80 support@yardistrystructures.com
#12 x 1-1/2 Pan Screw
(4 per bracket)
Assembly x4
Y004XX-191
45º Twist Bracket Lt x2
Y004XX-192
45º Twist Bracket Rt x2
4inches Down from
top of Pst (4 Posts)
#12 x 1-1/2 Pan Screw
(4 per bracket)
Assembly x4
Y004XX-191
45º Twist Bracket Lt x2
Y004XX-192
45º Twist Bracket Rt x2
4inches Down from
top of Pst (4 Posts)

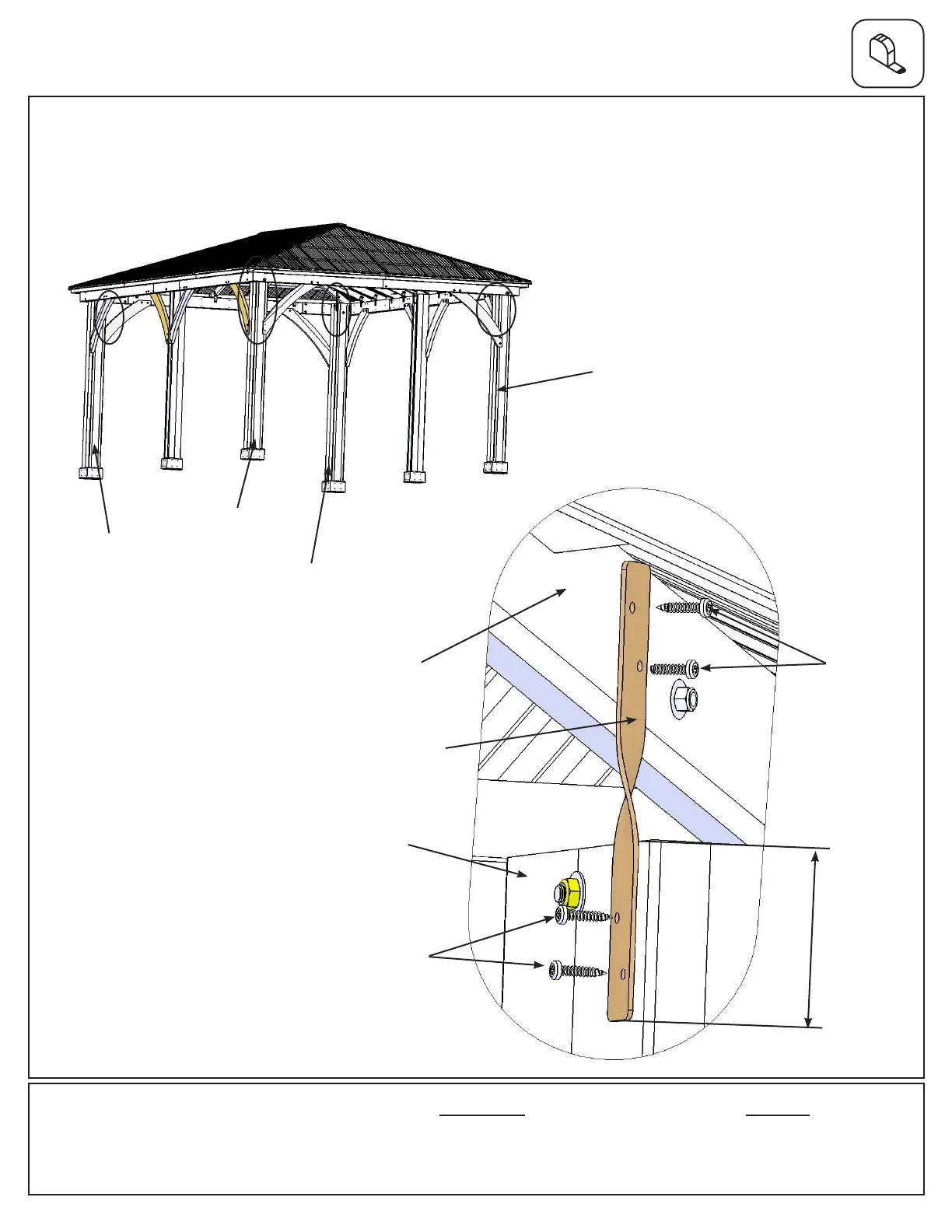

A: Measure 4” down from the inside of each Main Post, place bottom of either 45° Twist Bracket LT or 45° Twist
Bracket RT at measured location then attach to Main Post and Corner Rafter (Left or Right) with four #12 x 1-1/2”
Pan Screws per bracket. (F34.1 and F34.2)
Step 34: Attach Twist Brackets
Components
2 x 45° Twist Bracket LT
2 x 45° Twist Bracket RT
45° Twist
Bracket
(LT/RT)
#12 x 1-1/2”
Pan Screw
Main
Post
Hardware
16 x #12 x 1-1/2” Pan Screw
F34.1
Main
Post
Main
Post
Main
Post
Main
Post
4”
#12 x 1-1/2”
Pan Screw
F34.2
Rafter Corner
(Left or Right)
