Step 3: Beam Assembly
Part 1
HardwareWood Parts
A: Connect one (344) Beam End Left and one (345) Beam End Right using two 5/16 x 1-1/2” Hex Bolts (with
5/16” lock washer, 1/4 - 5/16” large washer and 5/16” t-nut) as shown in g. 3.1 and 3.2.
B: Connect one (346) Beam End Short to each end of one (343) Beam using two 5/16 x 1-1/2” Hex Bolts (with
5/16” lock washer, 1/4 - 5/16” large washer and 5/16” t-nut) per end as shown in g. 3.1 and 3.2.
C: Repeat Steps A and B three more times to make four Beam Short Assemblies and four Beam End
Assemblies.
(344) Beam
End Left
4 x (344) Beam End Left 38.1 x 139.7 x 1790.7 mm (1-1/2 x 5-1/2 x 70-1/2”)
4 x (345) Beam End Right 38.1 x 139.7 x 1790.7 mm (1-1/2 x 5-1/2 x 70-1/2”)
8 x (346) Beam End Short 38.1 x 139.7 x 584.2 mm (1-1/2 x 5-1/2 x 23”)
4 x (343) Beam 38.1 x 139.7 x 2413 mm (1-1/2 x 5-1/2 x 95”)

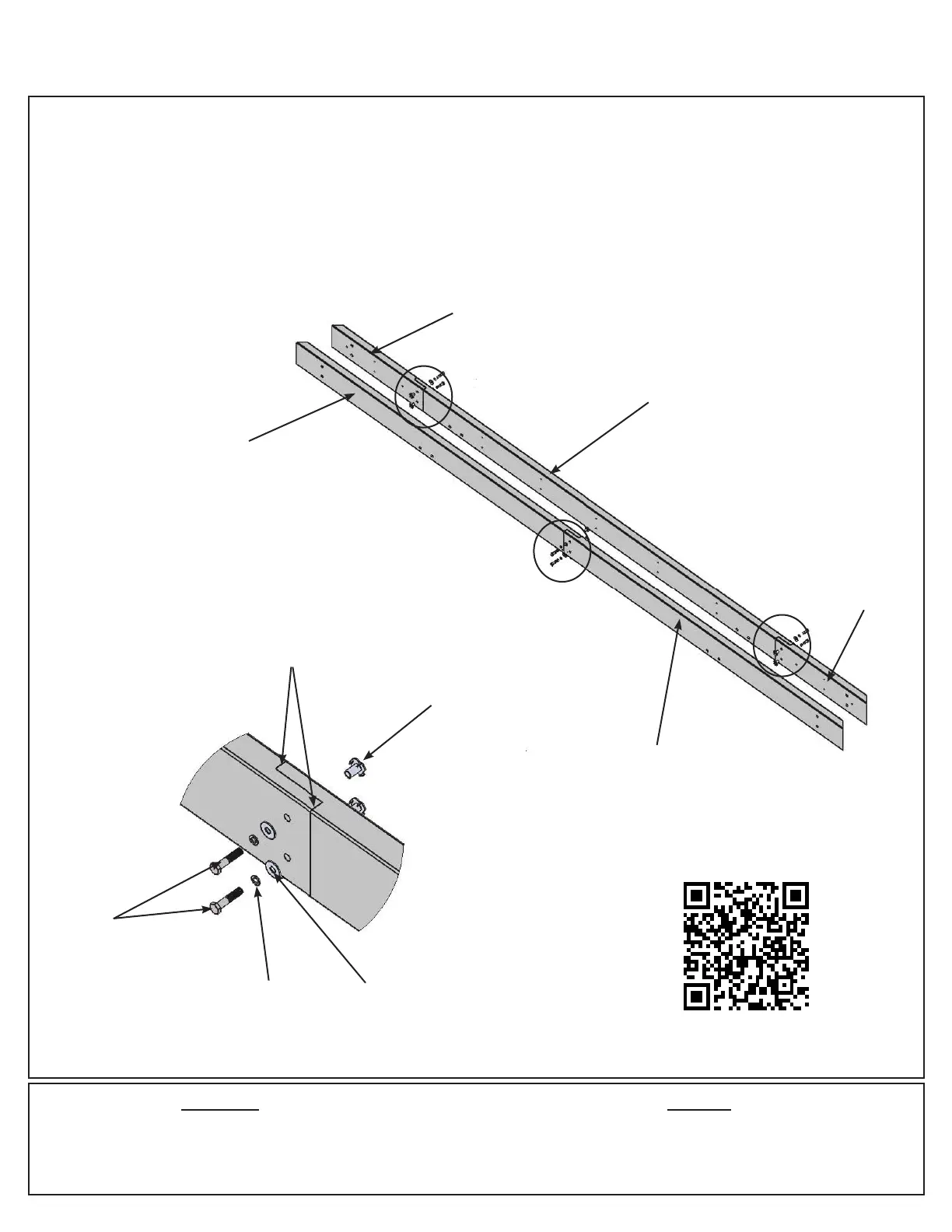

Fig. 3.1
24 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
Fig. 3.2
1/4 -5/16”
Large Washer
5/16 x 1-1/2”
Hex Bolt
5/16”
T-nut
Tight
(345) Beam
End Right
(343) Beam
(346) Beam
End Short
(346) Beam
End Short
QR code generated on http://qrcode.littleidiot.be
http://bit.ly/1EALDEx
5/16” Lock
Washer
