Yardistry YM12810 - Page 16

16 support@yardistrystructures.com
Hardware
72 x #8 x 2-1/2” Wood Screw
Fig. 3.3
Beam Short
Assembly
Fig. 3.4
Flush
Beam End
Assembly

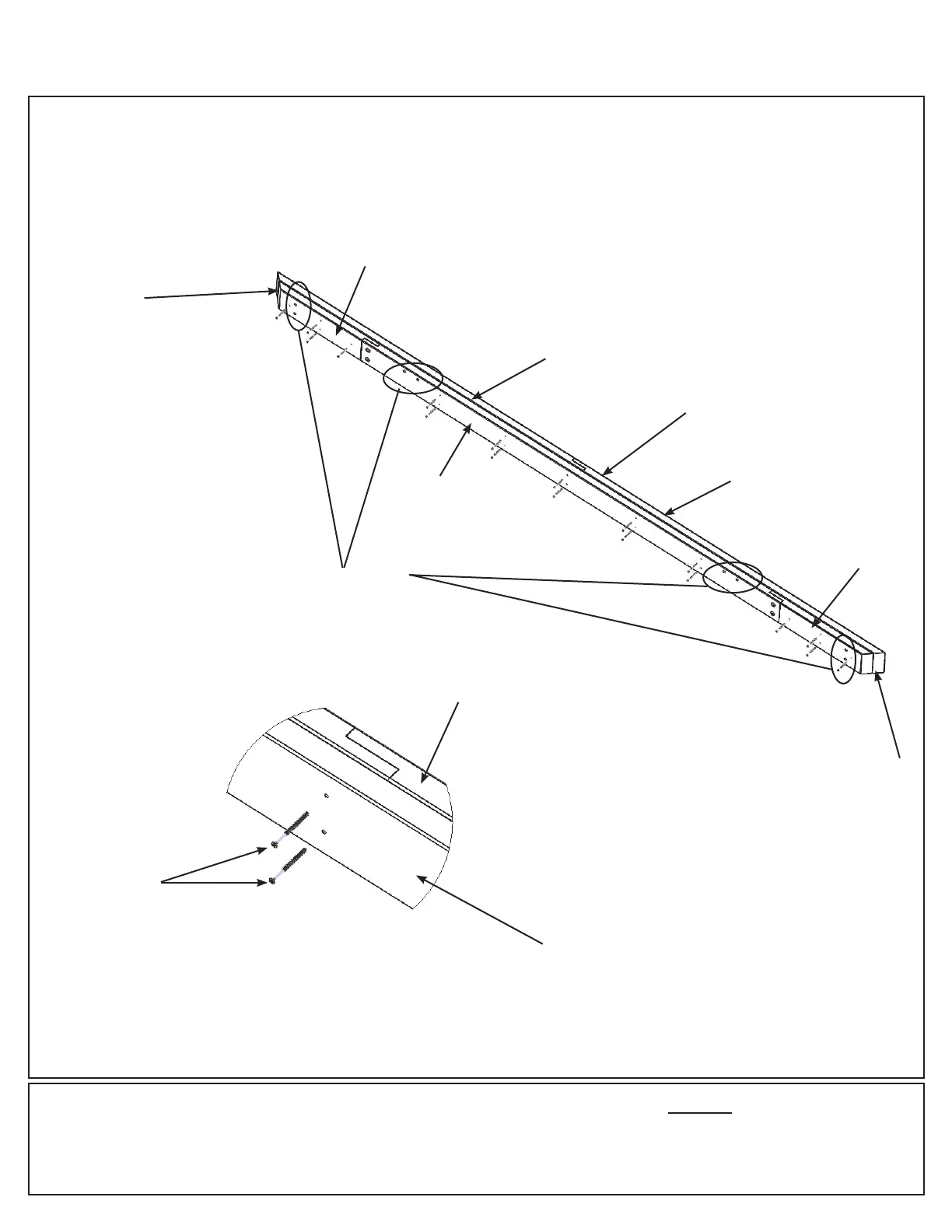

Step 3: Beam Assembly
Part 2
D: Place one Beam Short Assembly on one Beam End Assembly so the ends are ush. Match the bolt holes in
each (346) Beam End Short with the bolt holes in (344) Beam End Left and (345) Beam End Right. Attach with
18 #8 x 2-1/2” Wood Screws. (g. 3.3 and 3.4)
E: Repeat Step D three more times to make four Beam Assemblies.
Flush
Beam Short
Assembly
Beam End
Assembly
#8 x 2-1/2” Wood
Screws (x 18 per
assembly)
(344) Beam
End Left
(345) Beam
End Right
(346) Beam
End Short
(346) Beam
End Short
Match bolt holes
