Yardistry YM12810X - Roof Rafter Assembly Part 2; Attach Rafter Straps and Short Rafters

22 support@yardistrystructures.com
HardwareWood Parts
#8 x 1-1/2” Wood Screws
x 20 per assembly

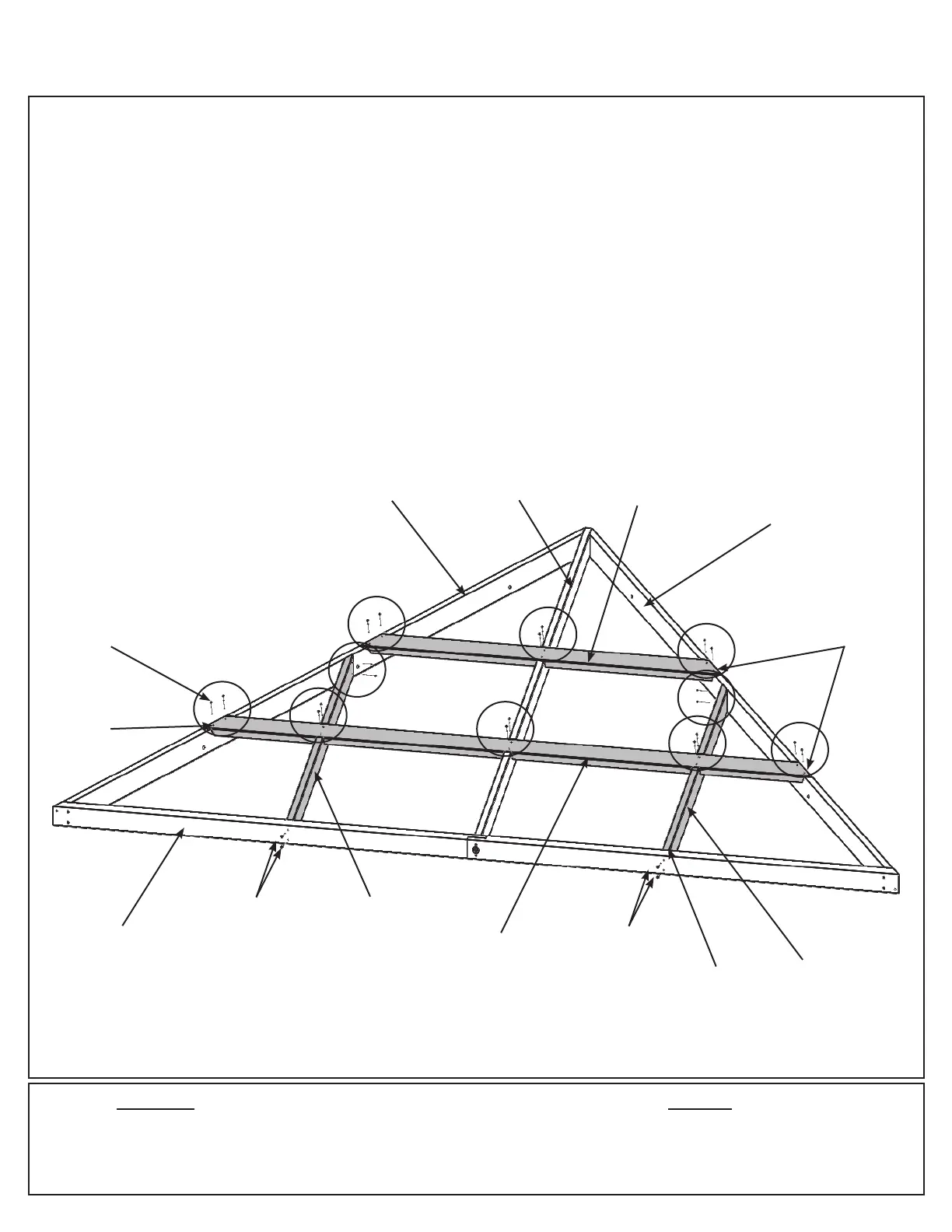

Fig. 7.5
Step 7: Roof Rafter Assembly
Part 2
80 x #8 x 1-1/2” Wood Screw
16 x #8 x 2-1/4” Wood Screw
4 x (337) Strap Short
4 x (336) Strap
4 x (338) Rafter Short Right
4 x (339) Rafter Short Left
D: Place one (337) Strap Short in the notches of (333) Rafter Corner Left, (334) Rafter Corner Right and (340)
Rafter so the ends do not overhang the outside edges of the outside boards then attach with six #8 x 1-1/2”
Wood Screws. (Fig. 7.5)
E: Place one (336) Strap in the notches of (333) Rafter Corner Left, (334) Rafter Corner Right and (340) Rafter
so the ends do not overhang the outside edges of the outside boards. Do not attach yet. (g. 7.5)
F: Place one (338) Rafter Short Right and one (339) Rafter Short Left in the notches of (336) Strap and attach
as shown in g. 7.5 with four #8 x 1-1/2” Wood Screws and two #8 x 2-1/4” Wood Screws per board.
G: Attach (336) Strap to (333) Rafter Corner Left, (334) Rafter Corner Right and (340) Rafter with six #8 x
1-1/2” Wood Screws. (g. 7.5)
H: Complete Steps D, E, F and G for all four Roof Rafter Assemblies.
(340)
Rafter
No
Overhang
Fascia Beam
Assembly
Flush
(333) Rafter
Corner Left
(334) Rafter
Corner Right
Front View
Flush
(337) Strap
Short
(339) Rafter
Short Left
(336) Strap
(338) Rafter
Short Right
#8 x 2-1/4”
Wood Screws
#8 x 2-1/4”
Wood Screws
