Hardware
Centred and ush to
bottom of rafters
#8 x 1” Pan
Screw
Roof to Beam
Bracket

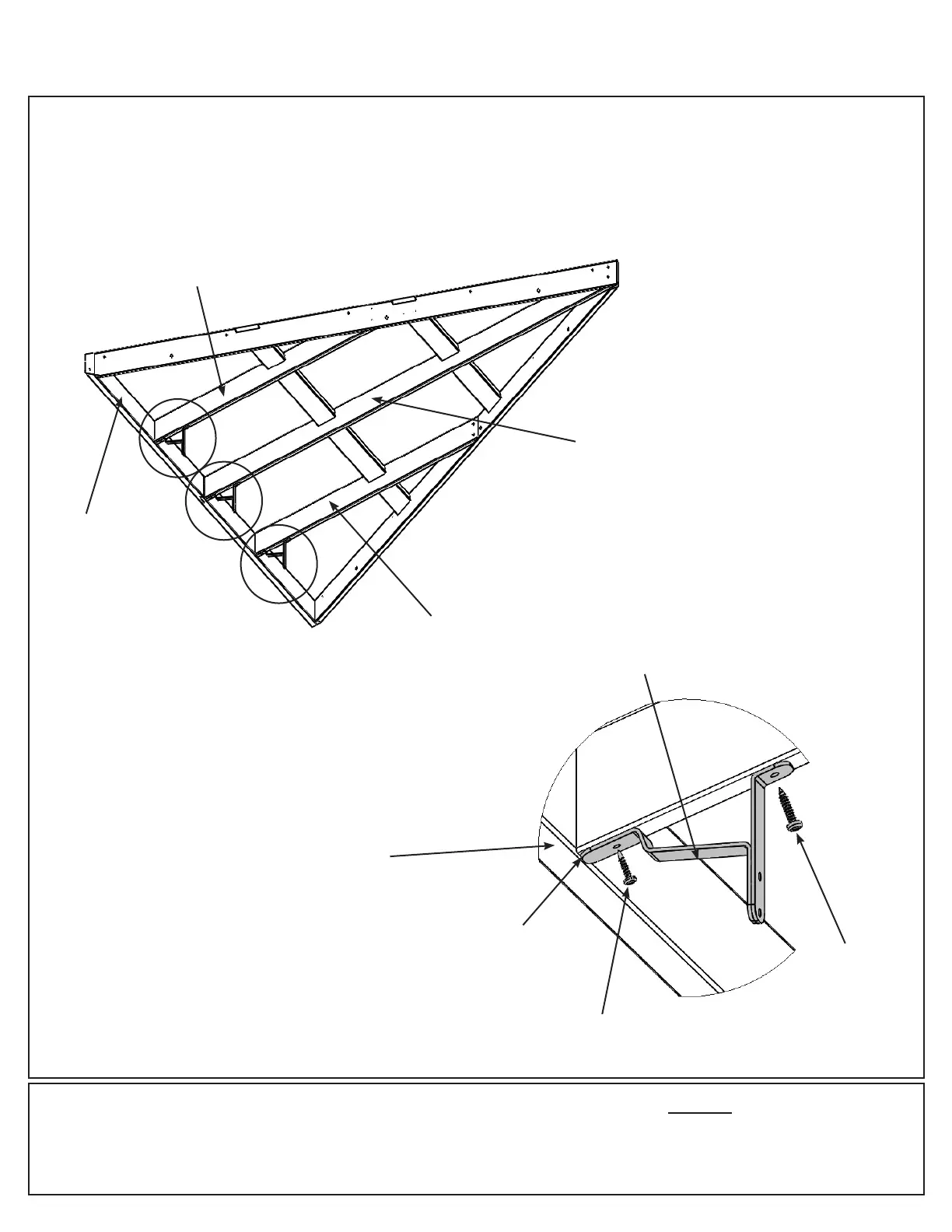

Fig. 8.1
Fig. 8.2
A: On the Back of the three Roof Rafter Assemblies, centred and ush to the bottom of (338) Rafter Short Right,
(339) Rafter Short Left and (340) Rafter attach one Roof to Beam Bracket per board with one #8 x 1” Pan Screw
in the bottom hole and one #12 x 1-1/2” Pan Screw in the top hole per bracket. One Roof Rafter Assembly will not
have brackets. (g. 8.1 and 8.2)
Step 8: Attach Roof to Beam Brackets
9 x #8 x 1” Pan Screw
9 x #12 x 1-1/2” Pan Screw
9 x Roof to Beam Bracket
Back View
(340)
Rafter
(339) Rafter
Short Left
(338) Rafter
Short Right
Fascia Beam
Assembly
Fascia Beam
Assembly
#12 x 1-1/2”
Pan Screw
