Step 9: Attach Roof Panels
Part 1
A: Place one Left Long Panel on the front of one Roof Rafter Assembly so it is ush to the side of (333) Rafter
Corner Left and a slight overhang at the bottom of the Fascia Beam Assembly. Holes should line up with (340)
Rafter. (g. 9.1 and 9.2)
B: Place one Right Long Panel on Roof Rafter Assembly so it overlaps the Left Long Panel and it is ush to the
side of (334) Rafter Corner Right and a slight overhang at the bottom of the Fascia Beam Assembly. (g. 9.1
and 9.2)
C: Attach both Left and Right Long Panels to Roof Rafter Assembly with four #8 x 1” Roong Screws in
locations shown in g. 9.1. Be sure not to overtighten screws.
D: Repeat Steps A - C for all four Roof Rafter Assemblies.

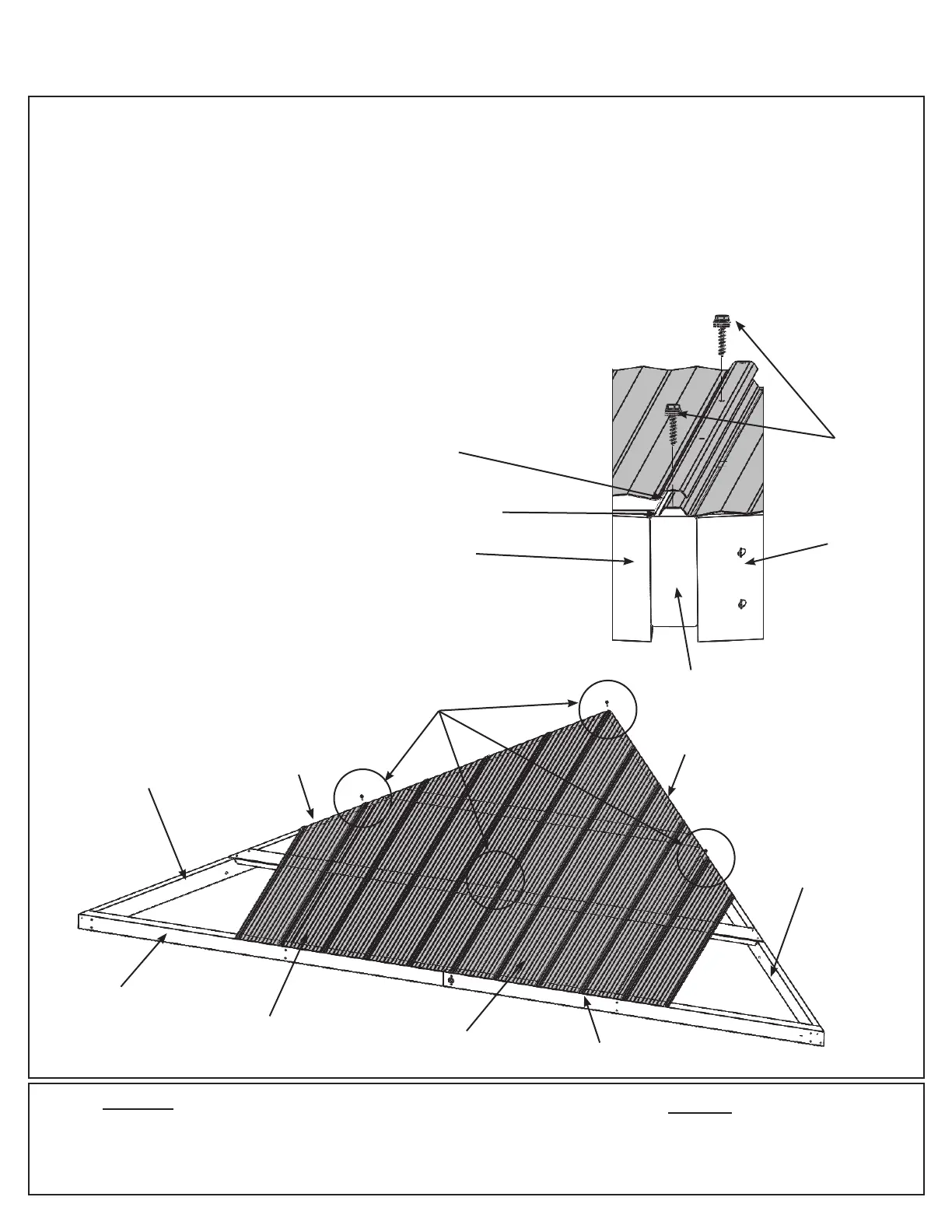

Fig. 9.1
Fig. 9.2
16 x #8 x 1” Roong Screw
Roof Parts
4 x Left Long Panel
4 x Right Long Panel
Front View
Fascia Beam
Assembly
(333) Rafter
Corner Left
(334) Rafter
Corner Right
Top, Side View
Panels overlap
at the seams
(340)
Rafter
(334) Rafter
Corner Right
(333) Rafter
Corner Left
#8 x 1”
Roong
Screws
Left Long
Panel
Right Long
Panel
DO NOT overtighten
screws, could cause
damage to roong
material
Flush
Flush
Slight overhang
Lower 3 screws may have
to be removed in next step
to properly place Left and
Right Short Panels
Flush
