Yardistry YM12810X - Attach Roof Panels Part 2; Install Short Roof Panels

27 support@yardistrystructures.com

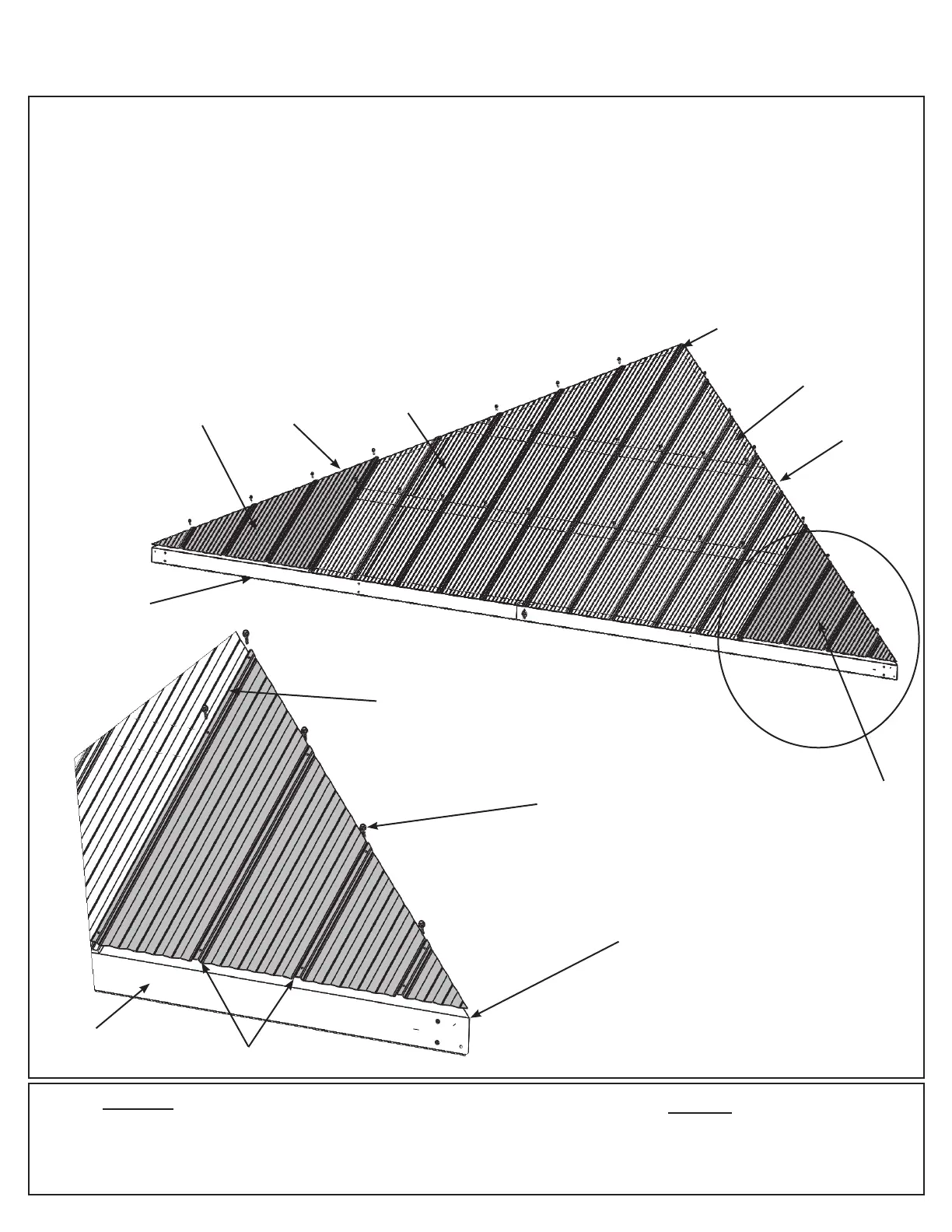

Fig. 9.4
Fig. 9.3
Hardware
116 x #8 x 1” Roong Screw
Roof Parts
4 x Left Short Panel
4 x Right Short Panel
Step 9: Attach Roof Panels
Part 2
E: Place one Left Short Panel on Roof Rafter Assembly so it overlaps the Left Long Panel and it is ush to
the sides of (333) Rafter Corner Left and a slight overhang at the bottom of the Fascia Beam Assembly. There
should be no overhanging at the corners. (g. 9.3 and 9.4)
F: Place one Right Short Panel on Roof Rafter Assembly so it overlaps the Right Long Panel and it is ush to
the side of (334) Rafter Corner Right and a slight overhang at the bottom of the Fascia Beam Assembly. There
should be no overhanging at the corners. (g. 9.3 and 9.4)
G: Attach all panels to Roof Rafter Assembly with 29 #8 x 1” Roong Screws in locations shown in g. 9.3. Do
not place any screws along the bottom row. Be sure not to overtighten screws.
H: Repeat Steps E - G for all four Roof Rafter Assemblies.
(333) Rafter
Corner Left
(hidden)
(334) Rafter
Corner Right
(hidden)
(340)
Rafter
(hidden)
#8 x 1”
Roong
Screws (x 29
per assembly)
Left Long
Panel
Right Long
Panel
Left Short
Panel
Right Short
Panel
Panels ush
to corners, no
overhang
Panels overlap
at the seams
Fascia Beam
Assembly
Fascia Beam
Assembly
No screws along bottom row
DO NOT overtighten
screws, could cause
damage to roong
material
