Yardistry YM12810X - Attach Ridge Clips and Roof Edges; Install Roof Edges and Ridge Clips

28 support@yardistrystructures.com
Tight at centre

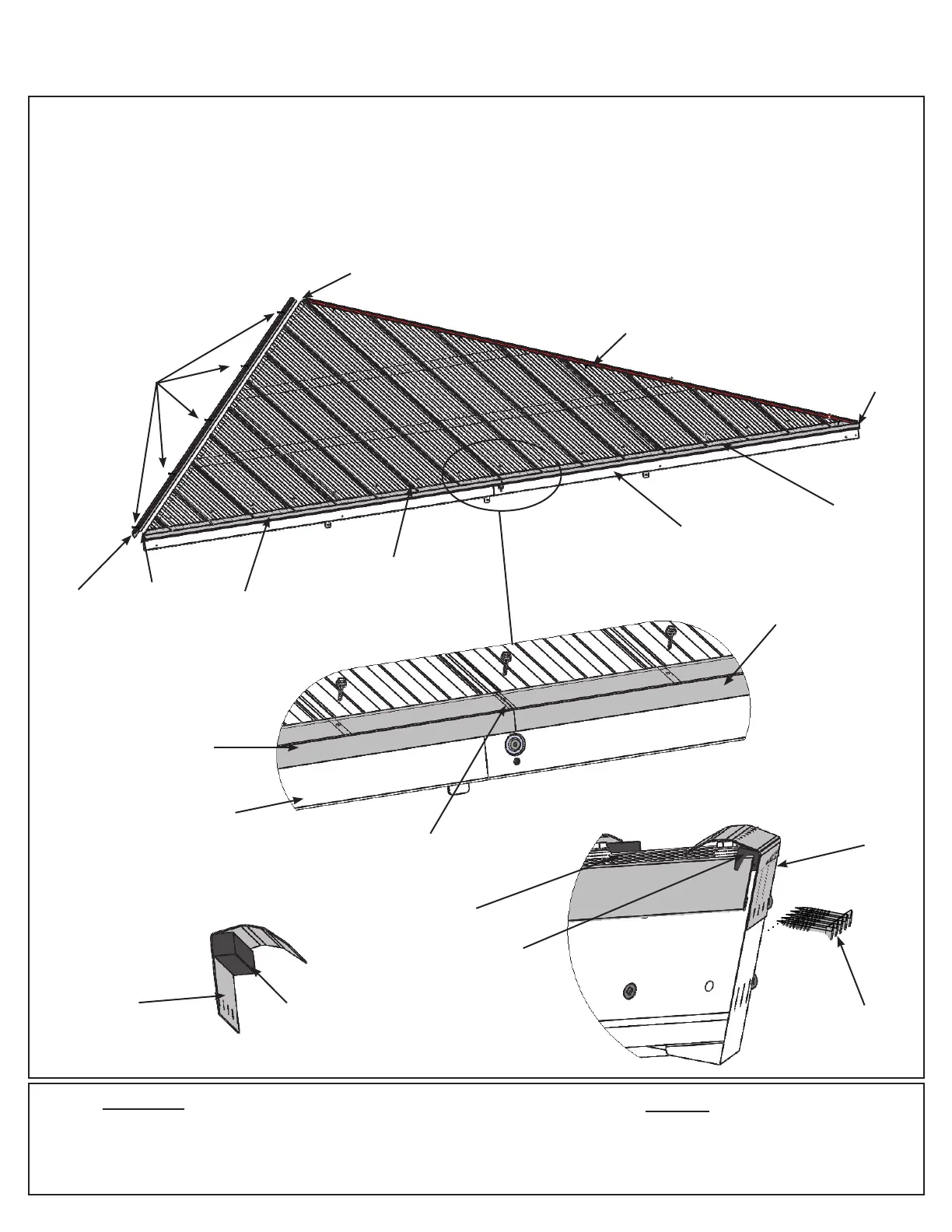

Step 10: Attach Ridge Clips and Roof Edges
Hardware
Fig. 10.1
68 x #8 x 1” Roong Screw
40 x #7 x 3/4” Wood Screw
A: Place one Roof Edge Left and one Roof Edge Right on the bottom of each Roof Rafter Assembly so the ends
are ush with the outside ends of the Fascia Beam Assembly and meet tight in the centre. Attach both Roof
Edges with 17 #8 x 1” Roong Screws per Roof Rafter assembly. (g. 10.1 and 10.2)
B: Place one Weather Seal on the inside of each Ridge Clip then place one Ridge Clip on each side of each
Roof Rafter Assembly so they cover the panels and attach with ve #7 x 3/4” Wood Screws per Ridge Clip. (g.
10.1, 10.3 and 10.4)
Weather
Seal
Ridge Clip
Fig. 10.2
#7x 3/4” Wood Screws
(x 5 per side)
Panels
Componets:
4 x Roof Edge Left
4 x Roof Edge Right
8 x Ridge Clip
8 x Weather Seal
Ridge Clip
Roof Edge Left
Roof Edge Right
Fascia Beam
Assembly
Flush
Flush
#8x 1” Roong
Screws (x 17)
Roof
Edge
Left
Roof Edge Right
Fascia Beam
Assembly
Fig. 10.3
Weather
Seal
Underneath,
Side View
Ridge
Clip
Fig. 10.4
Side View
#7x 3/4” Wood Screws
(x 5 per side)
Ridge
Clip
Flush
