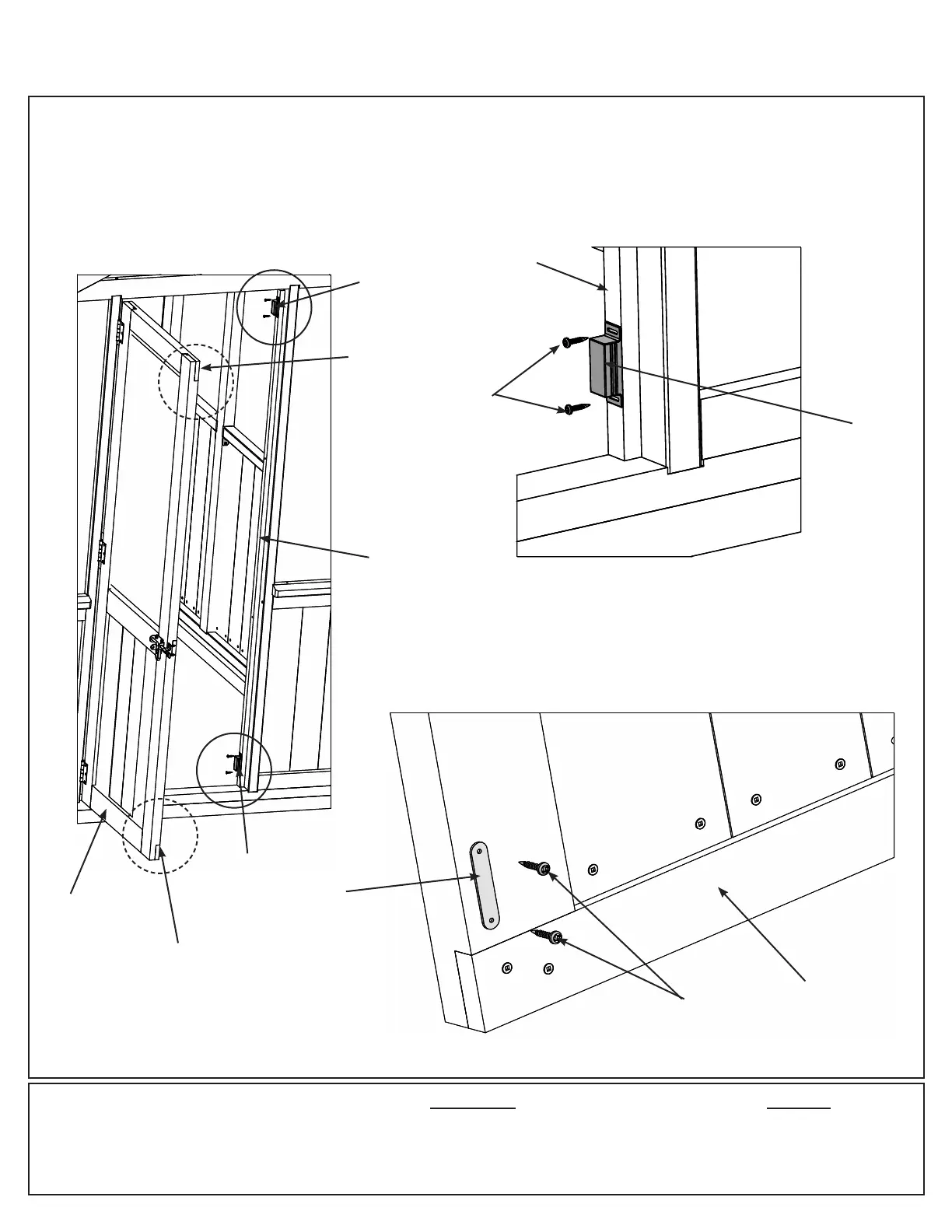

Step 26: Attach Eye Lags and Magnet
Part 2
B: Install a magnet near the top and bottom of the (1130) Door Block with two #8 x 1/2” Pan Screws per
Magnet. (F26.3 and F26.4)
C: Align Long Catch Plates to the Magnets then attach to Door Panel using two #7 x 3/4” Wood Screws per
plate. (F26.3 and F26.5)
Components
2 x Magnet
2 x Long Catch Plate
F26.3
F26.5
F26.4
Hardware
4 x #8 x 1/2” Pan Screw
4 x #7 x 3/4” Wood Screw
Door
Panel
(1130)
Door Block
(1130)
Door Block
Door
Panel
#7 x 3/4”
Wood Screw
#8 x 1/2”
Pan Screw
Magnet
Long
Catch
Plate
Long Catch
Plate (hidden)
Long Catch
Plate (hidden)
Magnet
Magnet
