Yardistry YM12935 - Step 2: Post Assemblies Part 1

13 support@yardistrystructures.com
8- 5/16 x 1-1/4" Hex Bolts
16 - #10 x 1-1/4" Pan screws
80 - #8 x 1-1/2" W.S
8- Post Mounts - (190)4- 6 x 7 Post -(1100)
8- 5/16 x 1-1/4" Hex Bolts
16 - #10 x 1-1/4" Pan screws
80 - #8 x 1-1/2" W.S
8- Post Mounts - (190)4- 6 x 7 Post -(1100)

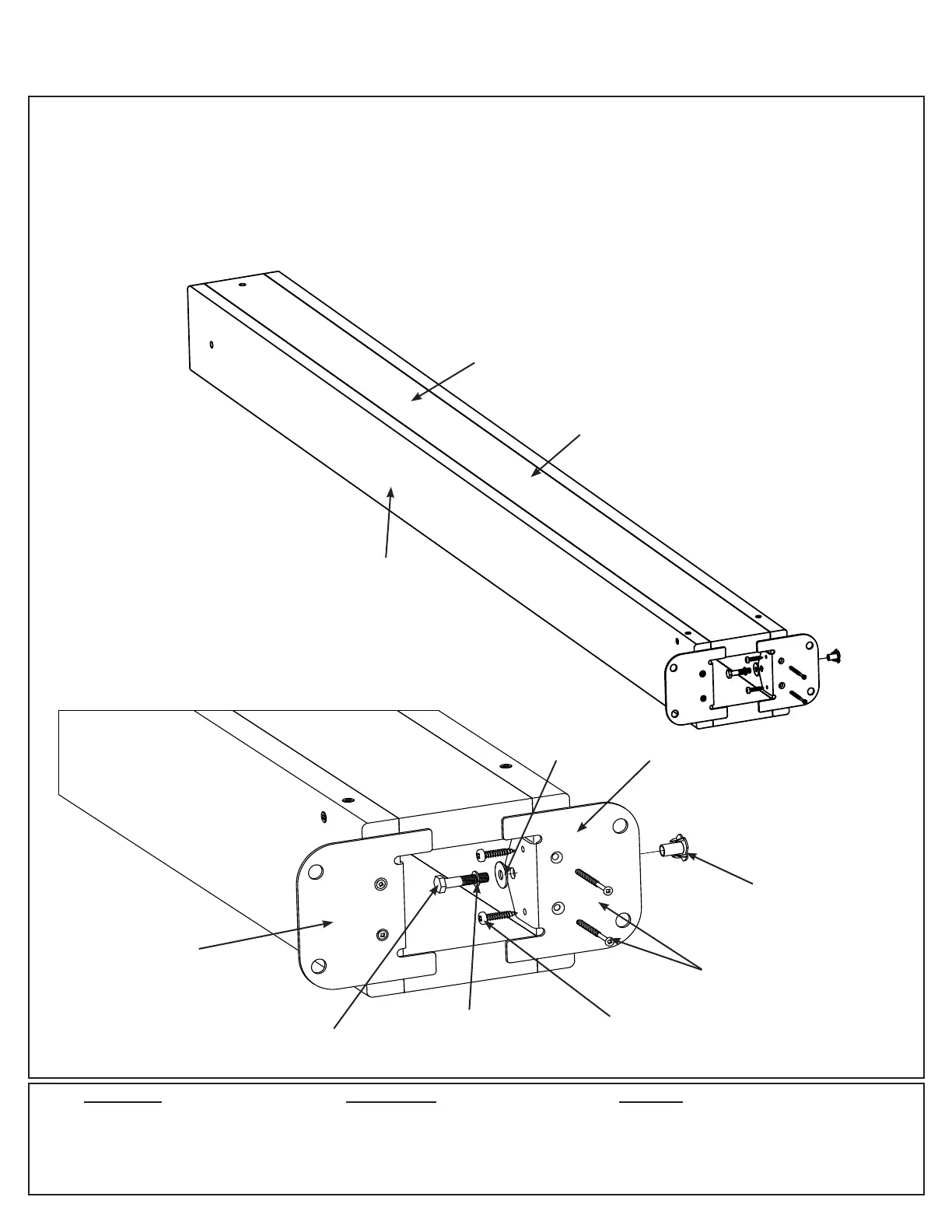

A: At the bottom of each (1100) 6 x 7 Post insert one 5/16” T-Nut on the outside of each short side. (F2.1 and
F2.2)
B: At the bottom of each post place two Post Mounts tight to the bottom and inside faces on the short sides as
shown in F2.1 and F2.2. Loosely attach with one 5/16 x 1-1/4” Hex Bolt (with 5/16” lock washer and 1/4-5/16”
large washer) per mount so they connect to the T-Nuts. From the bottom attach with two #8 x 1-1/2” Wood
Screws and from the inside with two #10 x 1-1/4” Pan Screws per mount. Tighten bolts.
Step 2: Post Assemblies
Part 1
Wood Parts
F2.1
4 x (1100) 6 x 7 Post
Top
Bottom
#8 x 1-1/2” Wood Screws
(x 2 per Post Mount, from
outside)
(1100) 6 x 7 Post
Post
Mount
F2.2
Hardware
16 x #8 x 1-1/2” Wood Screw
16 x #10 x 1-1/4” Pan Screw
8 x 5/16 x 1-1/4” Hex Bolt
(with 5/16” lock washer, 1/4 - 5/16” large washer, 5/16” t-nut)
Post Mount
5/16” T-Nut (x 1
per short side)
1/4 - 5/16”
Large Washer
5/16” Lock
Washer
5/16 x 1-1/4” Hex Bolt
(from inside)
Short
Side
Long
Side
#10 x 1-1/4” Pan
Screws (x 2 per Post
Mount, from inside)
8 x Post Mount
Components:
