Yardistry YM12935 - Step 2: Post Assemblies Part 2

14 support@yardistrystructures.com
8- 5/16 x 1-1/4" Hex Bolts
16 - #10 x 1-1/4" Pan screws
80 - #8 x 1-1/2" W.S
8- Post Mounts - (190)
4- 6 x 7 Post -(1100)
8- Plinth Long(1090)
8- Plinth (1089)
8- 5/16 x 1-1/4" Hex Bolts
16 - #10 x 1-1/4" Pan screws
80 - #8 x 1-1/2" W.S
8- Post Mounts - (190)
4- 6 x 7 Post -(1100)
8- Plinth Long(1090)
8- Plinth (1089)

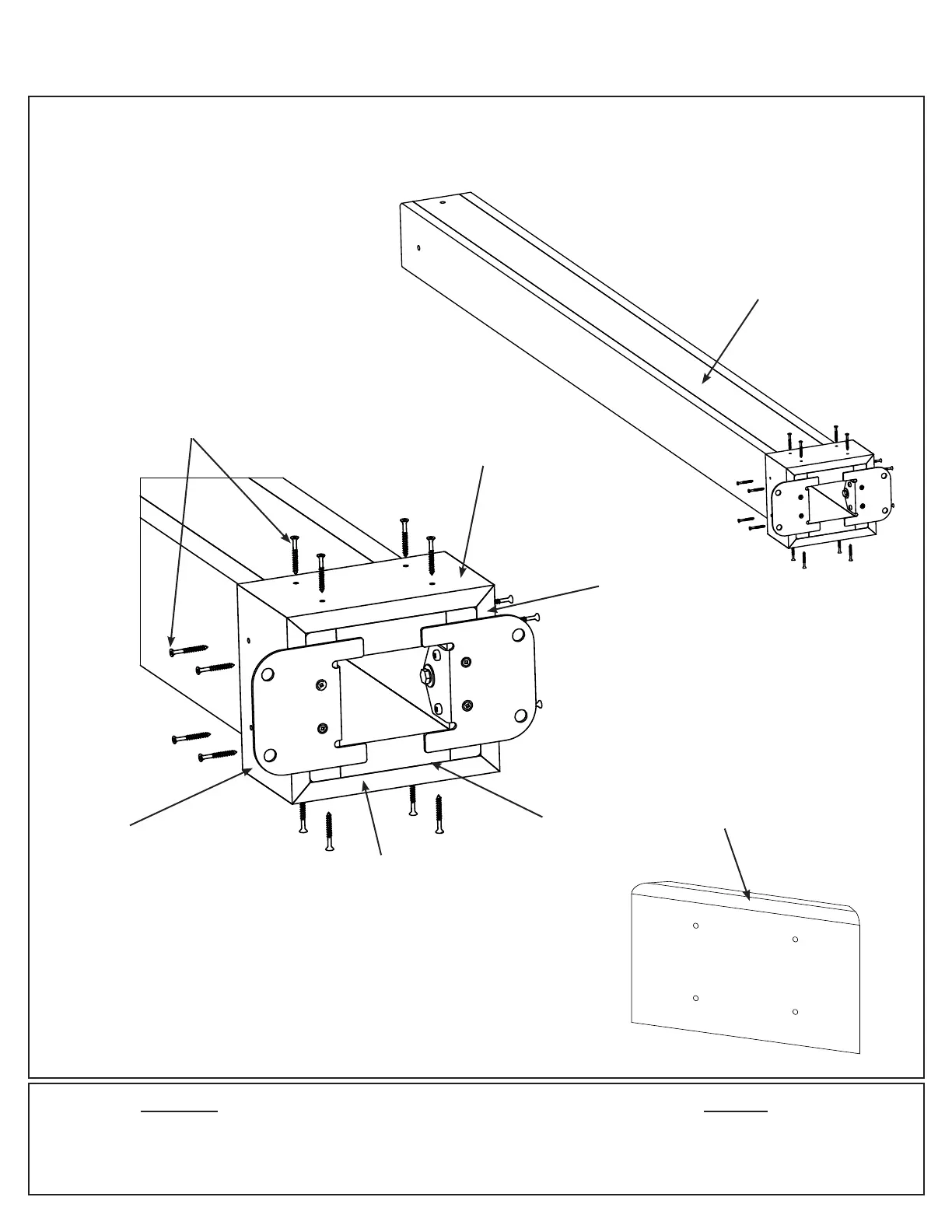

C: Flush to the bottom of each (1100) 6 x 7 Post place one (1090) Long Plinth on each long side and one (1089)
Plinth on each short side then attach with four #8 x 1-1/2” Wood Screws per plinth. Rounded edges on top. (F2.3,
F2.4 and F2.5)
There will be four Post Assemblies.
Wood Parts
8 x (1089) Plinth
8 x (1090) Long Plinth
Hardware
64 x #8 x 1-1/2” Wood Screw
Step 2: Post Assemblies
Part 2
F2.3
F2.4
Rounded
Edge on Top
(1089)
Plinth
(1089)
Plinth
(1090) Long
Plinth
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
(1090) Long
Plinth
(1100) 6 x 7 Post
Flush
F2.5
