4- Inside Short Beam (1078)
2- Right Outside Beam (1077)
2- Left Outside Beam (1076)
2- Inside Beam -(1093)
12- 5/16 x 1-1/4" Hex Bolts
(5/16 Large Flat,Lock Washers, T-nuts)
4- Inside Short Beam (1078)
2- Right Outside Beam (1077)
2- Left Outside Beam (1076)
2- Inside Beam -(1093)
12- 5/16 x 1-1/4" Hex Bolts
(5/16 Large Flat,Lock Washers, T-nuts)
5/16”
T-nut
Step 3: Short Beam Assembly
Part 1
HardwareWood Parts
A: Connect one (1076) Left Outside Beam and one (1077) Right Outside Beam using two 5/16 x 1-1/4” Hex
Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F3.1 and F3.2.
B: Connect one (1078) Inside Short Beam to each end of one (1093) Inside Beam using two 5/16 x 1-1/4” Hex
Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) per end as shown in F3.1 and F3.2.
C: Repeat Steps A and B one more time to make two Outside Short Beam Assemblies and two Short Beam End
Assemblies.
2 x (1076) Left Outside Beam
2 x (1077) Right Outside Beam
4 x (1078) Inside Short Beam
2 x (1093) Inside Beam

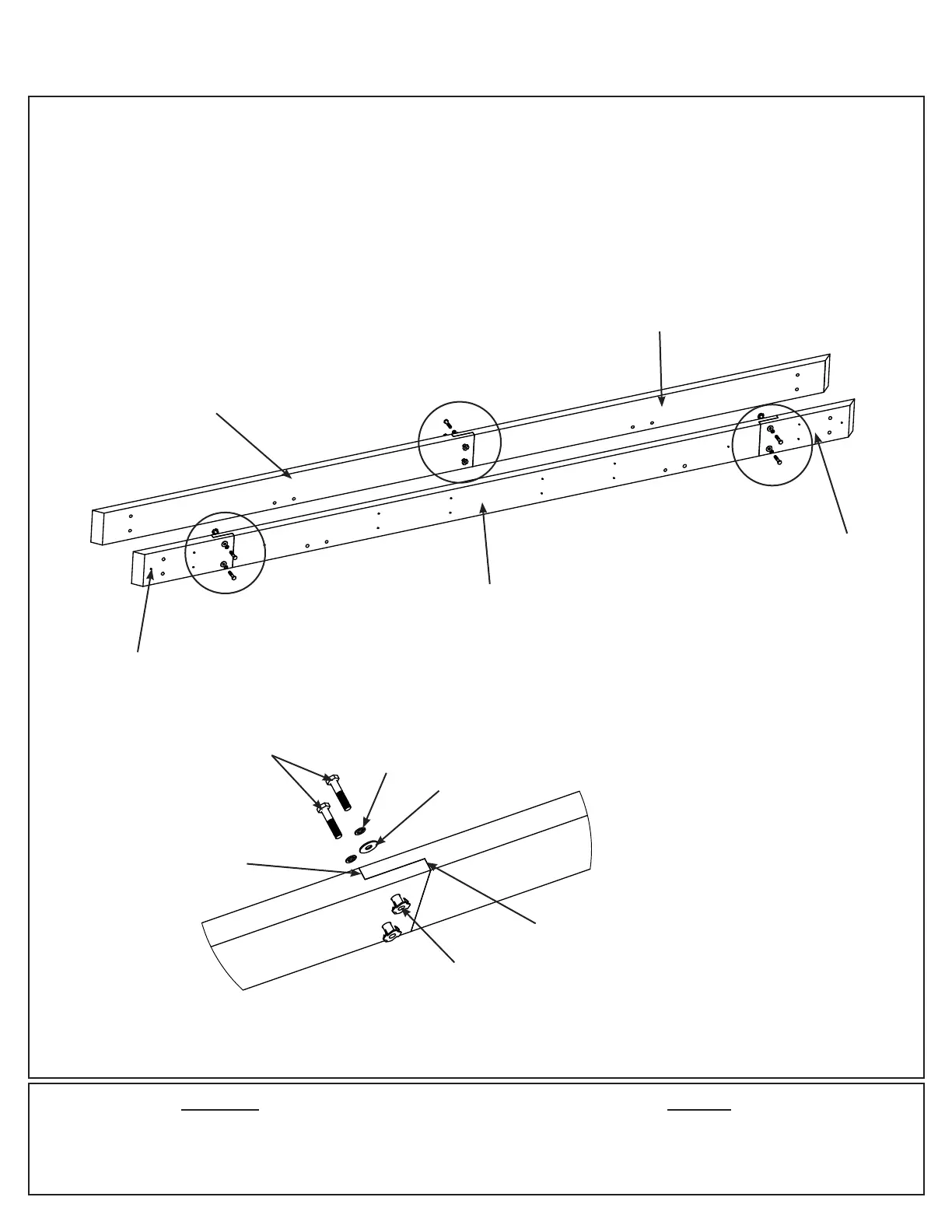

F3.1
12 x 5/16 x 1-1/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
F3.2
1/4-5/16”
Large Washer
5/16 x 1-1/4”
Hex Bolt
Tight
(1076) Left
Outside Beam
(1093) Inside
Beam
(1078) Inside
Short Beam
5/16” Lock
Washer
Make sure bolt heads
are on the outside of
each Beam Assembly
(1077) Right
Outside Beam
(1078) Inside
Short Beam
Tight
To Next Page
