Yardistry YM12935 - Step 3: Short Beam Assembly Part 2

16 support@yardistrystructures.com
32 - #8 x 2-1/4" W.S
32 - #8 x 2-1/4" W.S
Hardware
32 x #8 x 2-1/4” Wood Screw
F3.3
Short Beam
End Assembly
F3.4
Flush
Outside Short
Beam Assembly

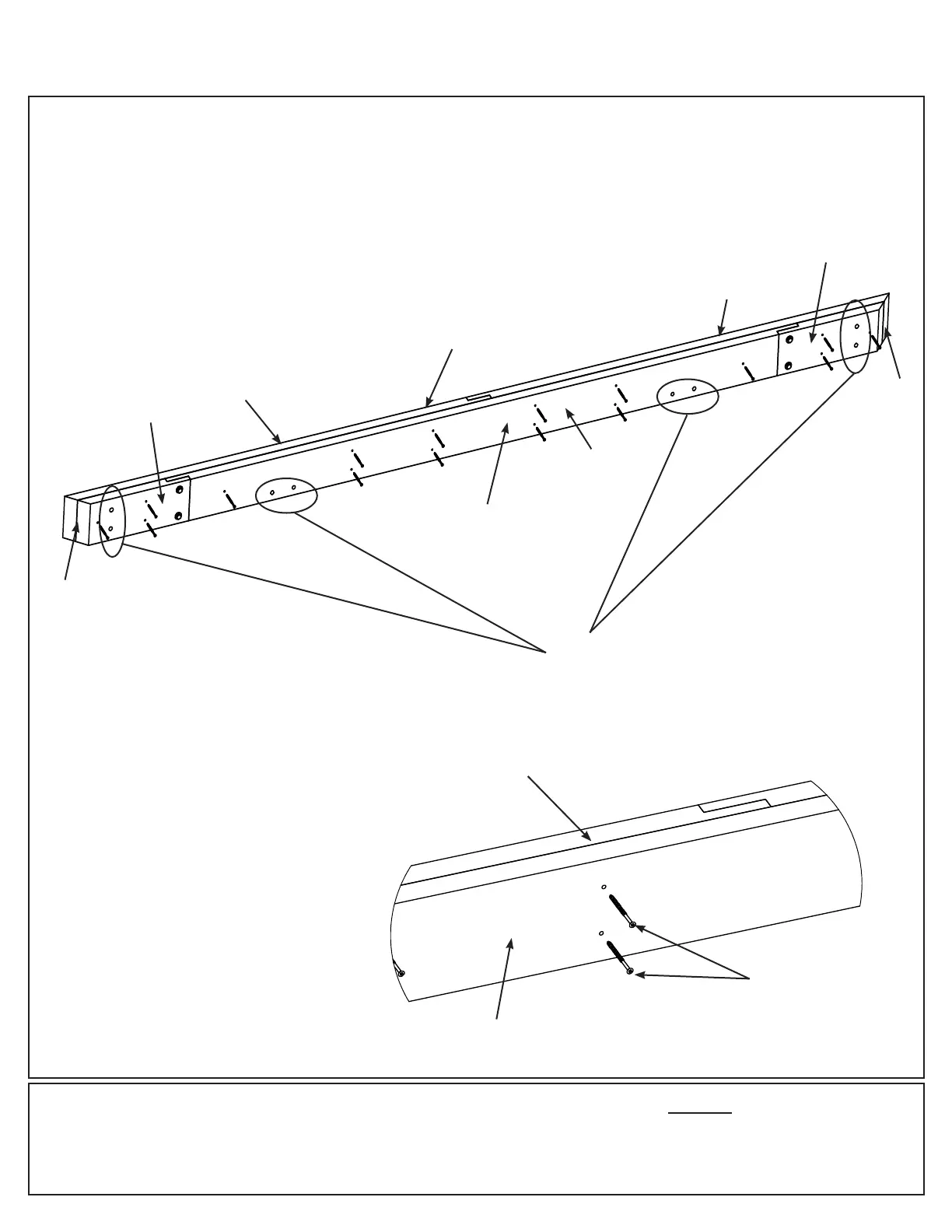

D: Place one Outside Short Beam Assembly tight to one Short Beam End Assembly so the ends are ush.
Match the bolt holes in each (1078) Inside Short Beam and (1093) Inside Beam with the bolt holes in (1076) Left
Outside Beam and (1077) Right Outside Beam. Attach with 16 #8 x 2-1/4” Wood Screws. (F3.3 and F3.4)
E: Repeat Step D one more time to make two Short Beam Assemblies.
Flush
Short Beam
End Assembly
#8 x 2-1/4” Wood
Screws (x 16 per
assembly)
Match
bolt
holes
Step 3: Short Beam Assembly
Part 2
Hint: Use bolts at
both ends to line up
bolt holes. Remove
bolts once step is
complete
(1076) Left
Outside Beam
(1078) Inside
Short Beam
(1077) Right
Outside Beam
(1078) Inside
Short Beam
Outside Short
Beam Assembly
(1093) Inside
Beam
