44 support@yardistrystructures.com
Peak
Loop
1/4” Nut

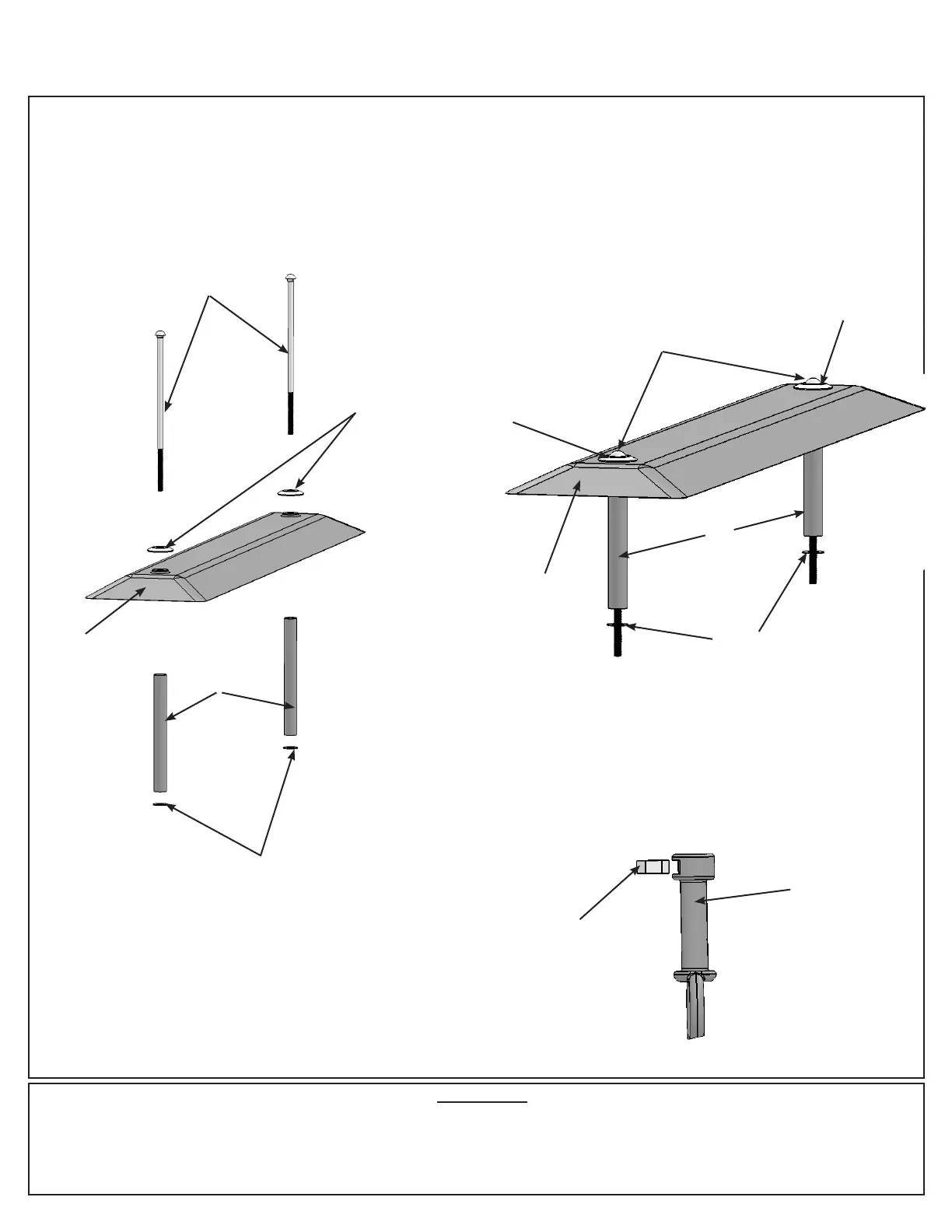

A: Insert two Carriage Bolts with Contoured Washers through the top of Peak Cap Long, into Peak Post then
Spring Clip. The Spring Clip holds the assembly together. (F17.1 and F17.2)
B: Insert one 1/4” Nut into each Peak Loop. Be careful nut is loose and will fall out until attached to Peak Cap
Assembly. (F17.3)
Components:
1 x Roof Peak Set
2 x Carriage Bolt
2 x Contoured Washer
2 x Peak Loop
2 x Spring Clip
2 x 1/4”Nut
1 x Peak Cap Long
2 x Peak Post
Step 17: Roof Peak Assembly
F17.3
Peak Cap
Long
Spring
Clip
Peak
Post
Contoured
Washer
Carriage Bolt
F17.1
Contoured
Washer
F17.2
Peak
Post
Spring
Clip
Carriage Bolt
Contoured
Washer
Peak Cap
Long
