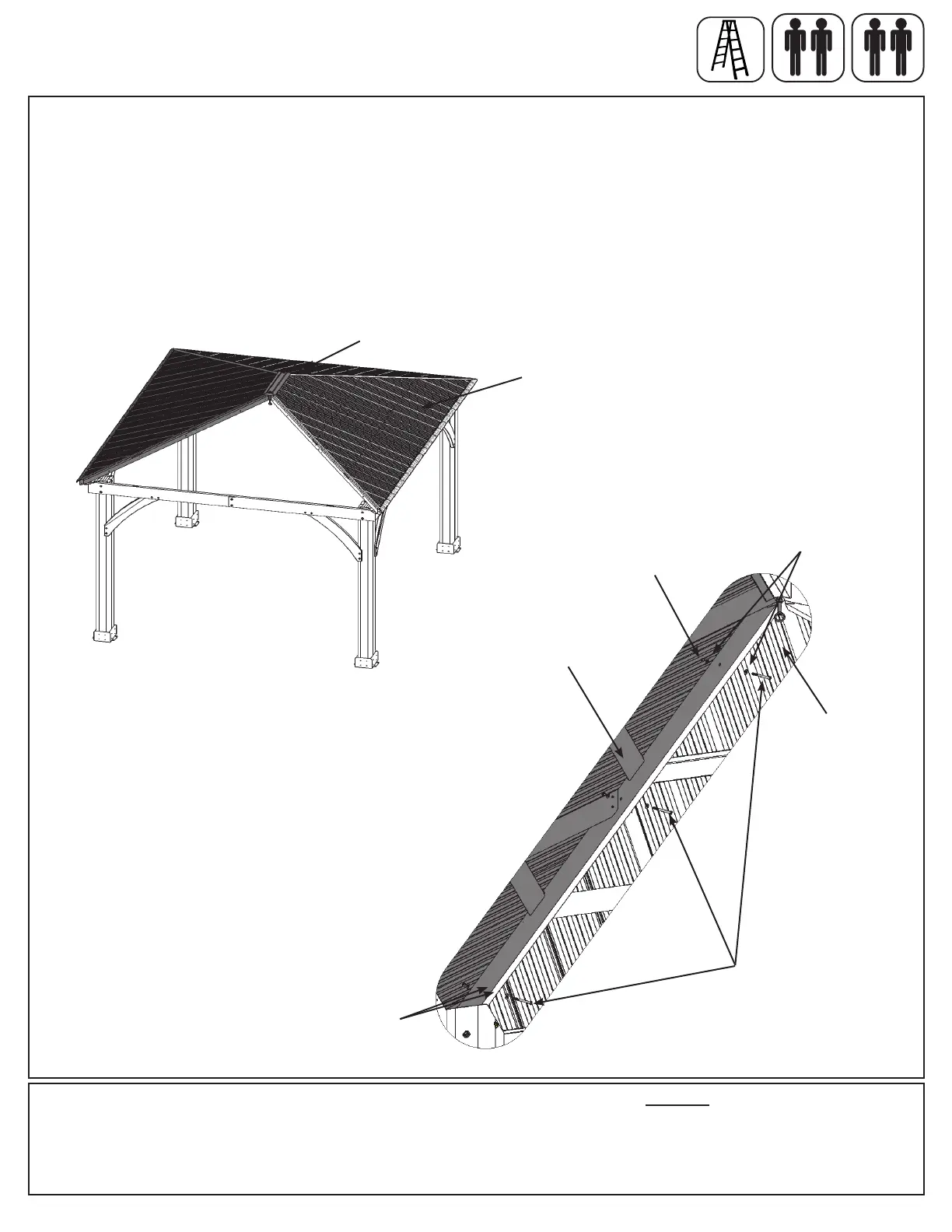

F16.5
E: Lift second Large Roof Panel Assembly with Rafter Beam Brackets over Large Beam Assembly taking care
not to drag the panel on the beams then set in place beside the Small Roof Panel Assembly. (F16.5)
F: Starting at the bottom and working up connect Large Roof Panel Assembly to Small Roof Panel Assembly
through the Rafter Corners with three 1/4 x 2-3/4” Hex Bolts (with two 1/4-5/16” large washers and one 1/4” lock
nut). To align bolt holes helper on the centre ladder may have to push up in the centre of the panels and others
make sure corners are aligned. Make sure all bolts are tight. (F16.6)
Large Roof
Panel Assembly
F16.6
Hardware
Step 16: Attach Roof Panels to Frame
Part 3
x 3
Rafter
Corner
1/4” Lock
Nut
1/4 x 2-3/4”
Hex Bolt
Small Roof
Panel Assembly
Large Roof
Panel Assembly
Small Roof
Panel Assembly
3 x 1/4 x 2-3/4” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
1/4-5/16”
Large Washer
To Next Page
