Yardistry YM12935 - Step 19: Attach Final Roof Panel Part 2; Connecting Roof Panels and Alignment

47 support@yardistrystructures.com
6- 1/4 x 2-3/4” Hex Bolt
6- 1/4” Lock Nut
12- 5/16” Large Washer
NOTE --- Attach 4 roof panels
6- 1/4 x 2-3/4” Hex Bolt
6- 1/4” Lock Nut
12- 5/16” Large Washer
NOTE --- Attach 4 roof panels
Remember to push up centre to assist with alignment.

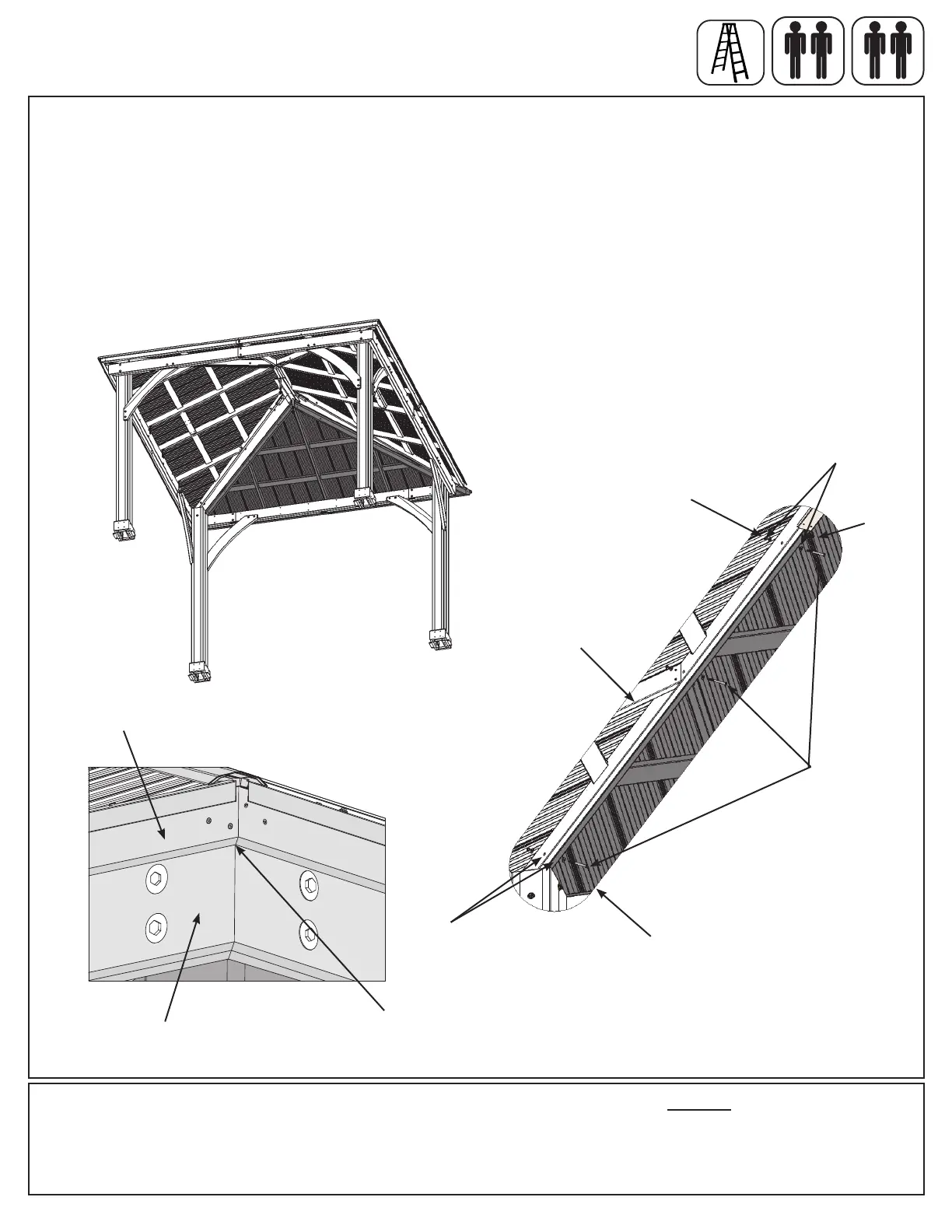

B: Starting at the bottom and working up loosely connect Roof Panel Assemblies through the Rafter Corners with
three 1/4 x 2-3/4” Hex Bolts (with two 1/4-5/16” large washers and one 1/4” lock nut) per side. To align bolt holes
helper on the centre ladder may have to push up in the centre of the panels and others make sure corners are
aligned. Tighten bolts when all six have been installed. (F19.3 and F19.4)
Mitre in Fascia Beam Assembly should be aligned with mitre in Beam Assemblies. (F19.5)
Rafter
Corner
Hardware
1/4” Lock
Nut
1/4 x 2-3/4”
Hex Bolt
F19.3
F19.4
Small Roof Panel
Assembly
Bottom
holes rst
x 3
Step 19: Attach Final Roof Panel
Part 2
Large
Roof
Panel
Assembly
6 x 1/4 x 2-3/4” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
1/4-5/16”
Large Washer
F19.5
Mitre in Fascia Beam
Assembly aligned with
mitre in Beam Assemblies
Beam
Assembly
Fascia Beam
Assembly
